4 | Transport
26 / 100 80.06.083_iCombiPro-iCombiClassic_IM_en-US

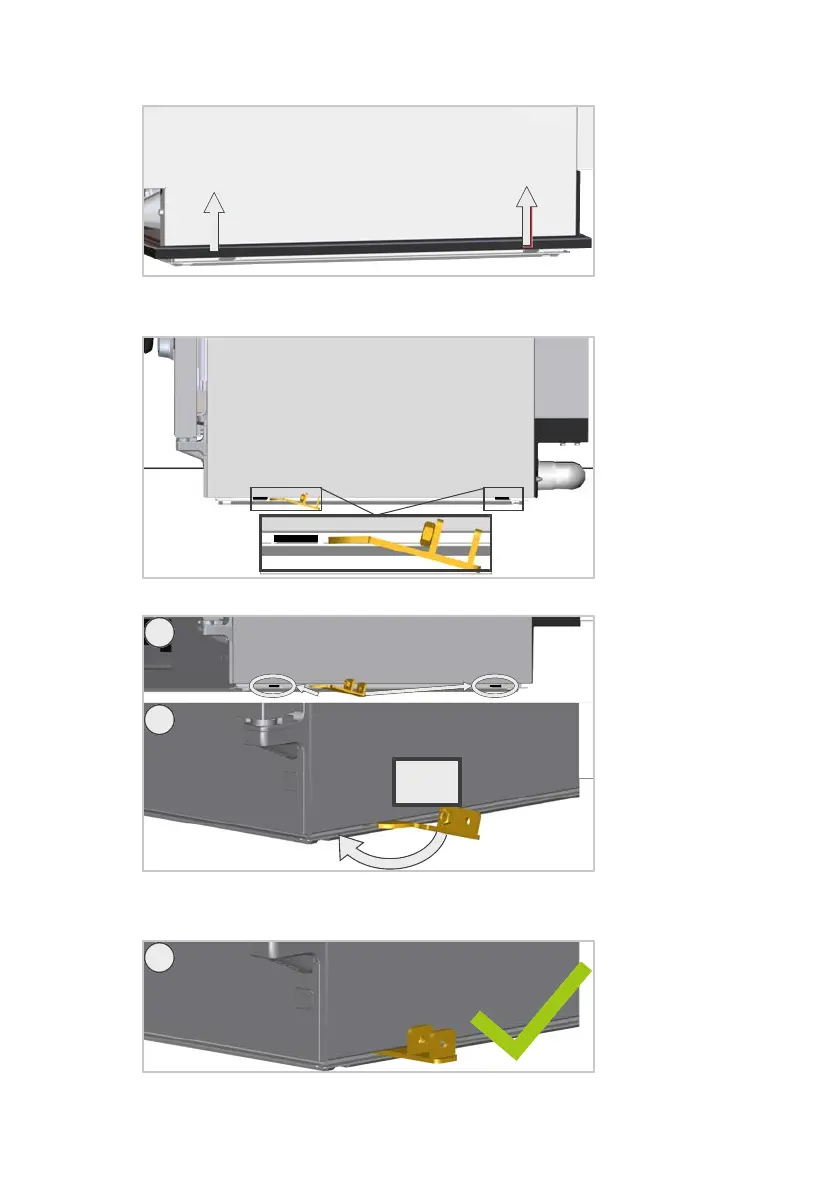

1. Slide the seal upwards out of the groove in the base frame.
2. Insert the four lifting lugs into the side slots on the sides of the unit (1)
with the top facing upwards.
3. Insert the lug diagonally (2) and turn clockwise by 90° (3).
> The lug can no longer be pulled out (4).
> The top side of the lifting lugs is labeled with the lettering TOP.
4. Attach the bar to the lifting lugs.
