Raven AutoBoom UltraGlide XT User Manual

2
Manual No. 016-0171-122 Rev. E 21
INTRODUCTION
HYDRAULIC INSTALLATION KIT

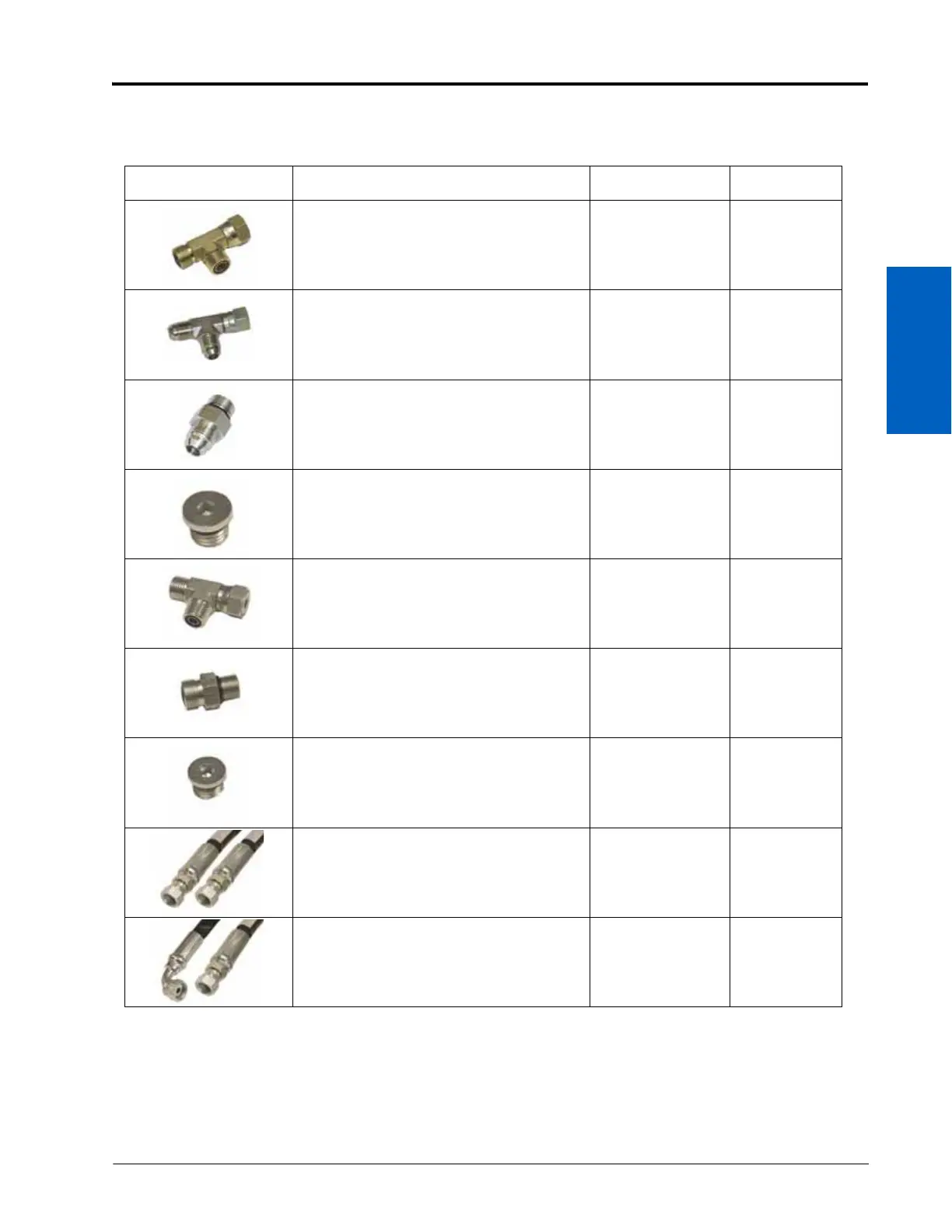

TABLE 4. UltraGlide XT Hydraulic Installation Kit (P/N 117-0134-094)
Picture Item Description Part Number Qty.
Fitting - -8 ORFS M/M/F Swivel Run Tee
Adapter
333-0012-028 1
Fitting - -6 JIC M/M/F Swivel Run Tee
Adapter
333-0012-043 2
Fitting - -6 JIC (M) to -6 SAE O-Ring (M)
Straight Adapter
333-0012-045 2
Fitting - -4 SAE O-Ring Plug 333-0012-051 8
Fitting - -6 ORFS M/M/F Swivel Run Tee
Adapter
333-0012-069 1
Fitting - -6 ORFS (M) to -6 SAE O-Ring
(M) Straight Adapter
333-0012-084 2
Fitting - -6 SAE O-Ring Plug 333-0012-104 2
Hydraulic Hose - -6 JIC (F) to -6 JIC (F) -
200”
214-1001-034 2
Hydraulic Hose - -6 JIC (F) 90° to -6 JIC (F)
- 120”
214-1001-035 2
