CHAPTER 5
48 Viper Pro Installation & Operation Manual
INSTALL THE VALVE HARNESS

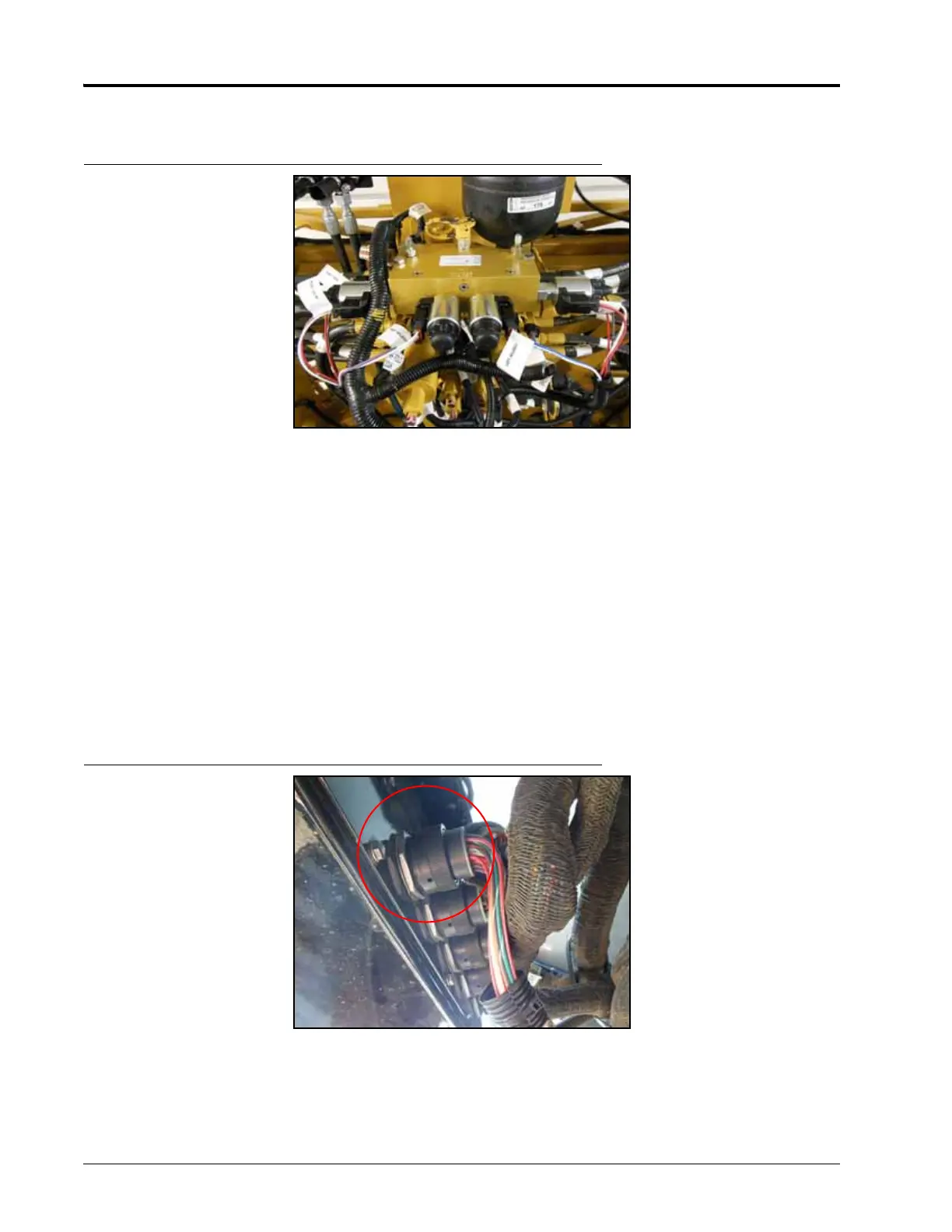

FIGURE 6. Valve Harness Installed on AutoBoom Valve
NOTE: The instructions in this section assume that you are standing behind the machine, looking toward the
cab.
1. Locate the LEFT PRESS and RIGHT PRESS connectors on the valve harness cable (P/N 115-0230-152 or 115-
0230-153).
2. Connect the LEFT PRESS connector to Port GL of the AutoBoom valve (P/N 063-0131-131).
3. Connect the RIGHT PRESS connector to Port GR of the AutoBoom valve.
4. Locate the LEFT SOLENOID and RIGHT SOLENOID connectors on the valve harness cable.
5. Connect the LEFT SOLENOID connector to Port 8 on the left side of the AutoBoom valve.
6. Connect the RIGHT SOLENOID connector to Port 8 on the right side of the AutoBoom valve.
7. Locate the LEFT PROP and RIGHT PROP connectors on the valve harness.
8. Connect the LEFT PROP connector to Port 6 on the left side of the AutoBoom valve.
9. Connect the RIGHT PROP connector to Port 6 on the right side of the AutoBoom valve.
FIGURE 7. Valve Harness Installed on Bulkhead
10. Route the 31-pin connector toward the node mounting box.
11. Connect the 31-pin connector to the open bulkhead connection in the node mounting box.
12. Secure the cable properly to allow for the machine’s suspension movement.
