CHAPTER 5
WIRING INSTALLATION
WIRING CONNECTIONS
For wiring connections made outside the cab, apply dielectric silicone grease (P/N 222-0000-006) generously on
both the male and female ends of the connectors. Application of the grease will prevent corrosion to the pins and
wires.
MODEL YEAR 2012 & NEWER RG SERIES NODE AND HARNESS
INSTALLATION
INSTALL THE NODE HARNESS
1. Locate the node mounting box at the front-right corner of the liquid tank and remove the cover.
2. Remove the existing AutoBoom node and disconnect the cable connectors from it, if applicable.

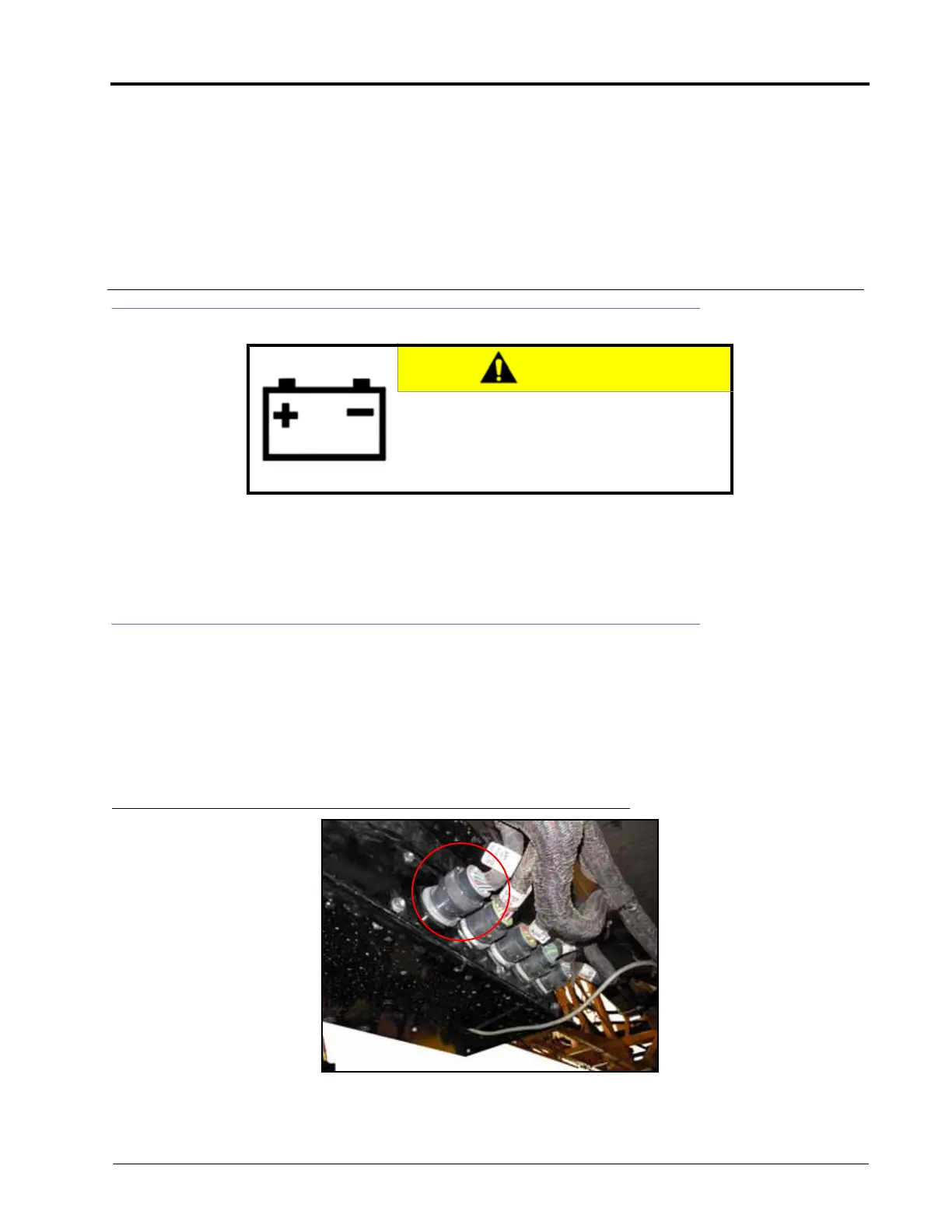

FIGURE 1. Bulkhead Connector to be Removed
3. Disconnect the SYS BLKHD 5 connector from the back of the node box.
CAUTION
Always connect the power cable as the last step
in the wiring process and verify that the power
leads are connected with the correct polarity.
Reversing power leads can cause severe damage
to the equipment.
