CHAPTER 2
4 Viper Pro Installation & Operation Manual
RECOMMENDATIONS
Raven Industries recommends the following best practices before installing or operating the AutoBoom system for
the first time, at the start of the season, or when moving the AutoBoom system to another machine:
• Ensure the machine’s hydraulic filters have been recently changed and there are no issues with the machine’s
hydraulic system (e.g., pump issues, faulty hydraulic motors, fine metal deposits in the hydraulic hoses, etc.).
• Operate each of the machine’s boom hydraulic functions (i.e., tilt, fold, center rack, tongue extension, or other
hydraulic valve functions) three times to ensure the machine’s hydraulic valve is using fresh oil and debris is
flushed from the hydraulic hoses, valves, and filters.
• Upon installation of the AutoBoom system, operate the boom and center rack raise/lower functions through
the machine’s manual control functions first before operating them via the AutoBoom controller/field
computer to ensure the hydraulic system has been installed correctly and air is released from the system.
Raven Industries recommends the following best practices when installing the AutoBoom system.
• Use part numbers to identify the parts.
• Do not remove the plastic wrap or caps from parts until ready for installation.
Tools Ne ede d
The following tools are recommended for installation of the AutoBoom system:
• SAE standard-sized wrenches
• Cable ties
•Set of tools
POINT OF REFERENCE
The instructions in this manual assume that you are standing behind the machine, looking toward the cab.

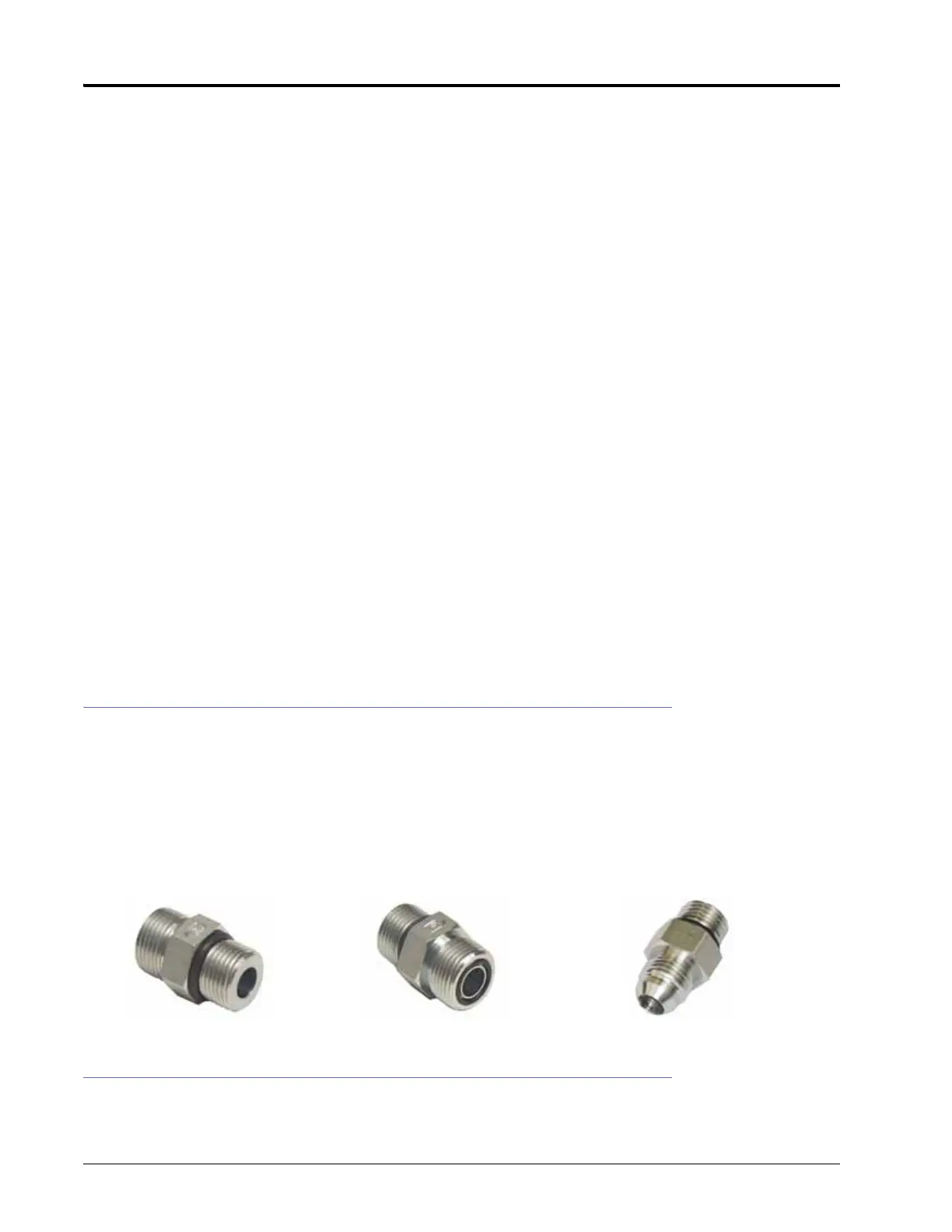

HYDRAULIC FITTINGS
This manual may reference the following types of hydraulic fittings:
• SAE O-ring fittings
• ORFS (O-Ring Face Seal) fittings
• JIC fittings
UPDATES
Software and manual updates are available on the Raven Applied Technology website:
JIC fitting
ORFS fitting
SAE O-ring fitting
