WIRING INSTALLATION
CONNECT THE VALVE HARNESS TO THE SENSORS - ULTRAGLIDE NOT INSTALLED ON THE MACHINE

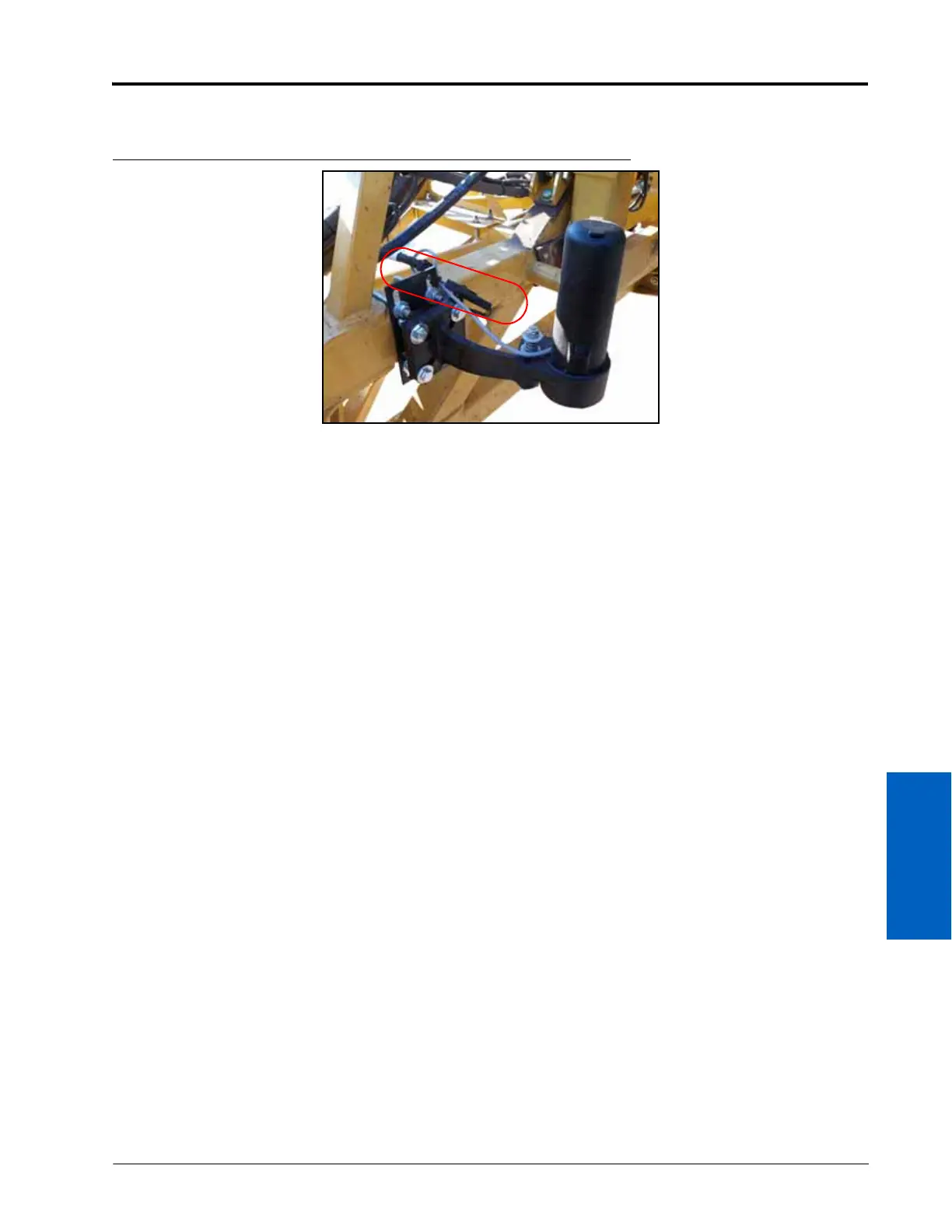

FIGURE 8. CENTER BOOM SENSOR Harness Connection
13. Connect the CENTER BOOM SENSOR connector to the center rack sensor.
14. Route the LEFT BOOM SENSORS connector along the product hose and down the left boom.
15. Connect the 6-pin Deutsch connector of the sensor extension cable (P/N 115-0230-088 or 115-0230-089) to the
LEFT BOOM SENSORS connector.
16. Connect the INNER SENSOR connector to the cable connector of the installed left inner sensor.
17. Connect the OUTER SENSOR connector to the cable connector of the installed left outer sensor.
18. Route the RIGHT BOOM SENSORS connector along the product hose and down the right boom.
19. Connect the 6-pin Deutsch connector of the sensor extension cable (P/N 115-0230-088 or 115-0230-089) to the
RIGHT BOOM SENSORS connector.
20.Connect the INNER SENSOR connector to the cable connector of the installed right inner sensor.
21. Connect the OUTER SENSOR connector to the cable connector of the installed right outer sensor.
CONNECT THE VALVE HARNESS TO THE SENSORS - ULTRAGLIDE INSTALLED ON THE MACHINE (IF APPLICABLE)
1. Connect the CENTER BOOM SENSOR connector to the center rack sensor.
2. Route the LEFT BOOM SENSORS connector along the product hose and down the left boom.
3. Connect the LEFT BOOM SENSORS connector to the existing sensor cable.
4. Route the RIGHT BOOM SENSORS connector along the product hose and down the right boom.
5. Connect the RIGHT BOOM SENSORS connector to the existing sensor cable.
