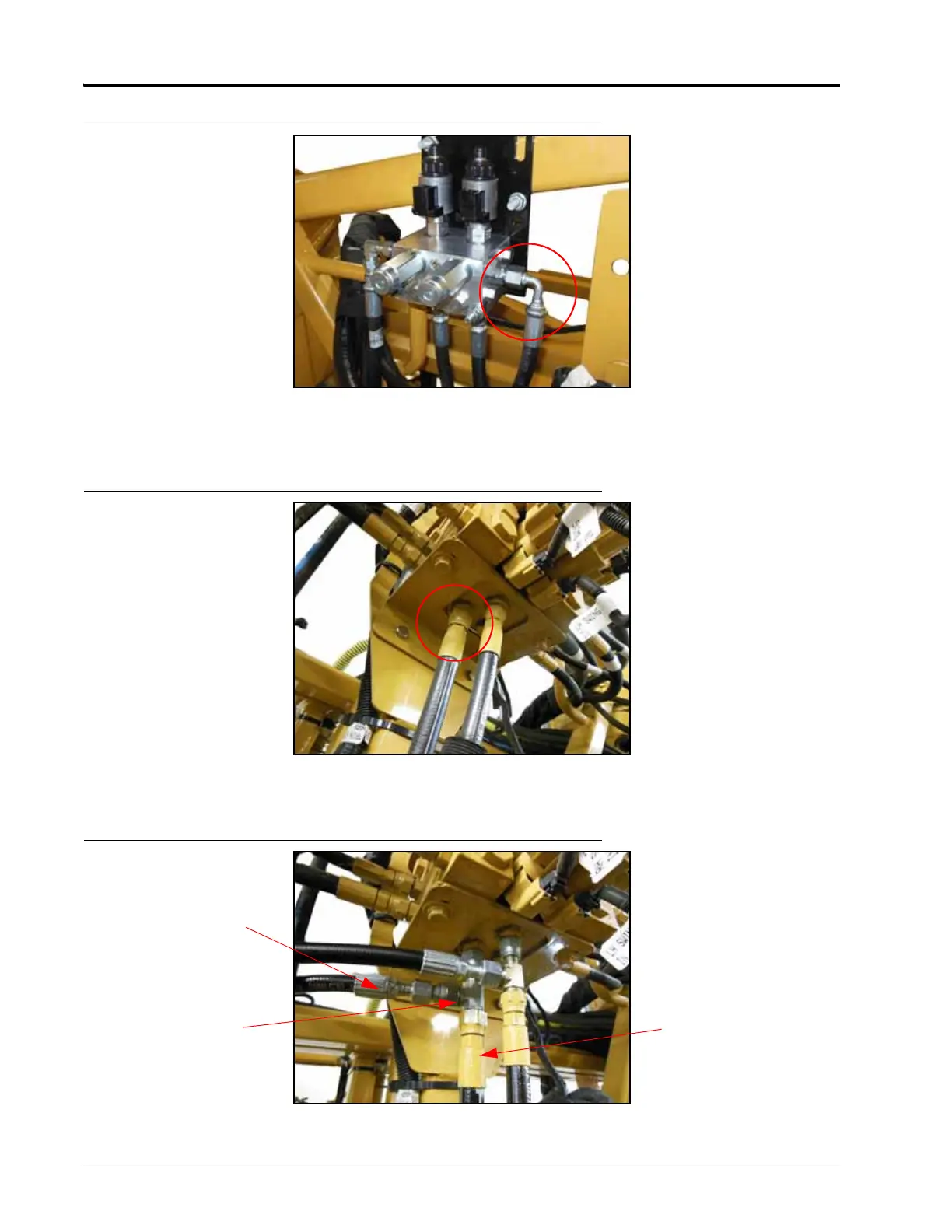

FIGURE 8. Pressure Hose Installed on UltraGlide XT Valve
5. Connect the 90° end of the installed hydraulic hose to the fitting installed in Port P2 of the UltraGlide XT valve
(P/N 063-0131-154).
FIGURE 9. Machine’s Tank Hose
1. Locate and disconnect the existing tank hose from the machine’s hydraulic valve.
FIGURE 10. Tank Hose Installed
2. Install a -8 ORFS M/M/F swivel run tee fitting (P/N 333-0012-028) on the fitting in the machine’s tank port.
Installed Tee Fitting
(P/N 333-0012-069)
Machine’s Tank Hose
Installed Hydraulic
Hose (P/N 214-1001-
092)
