Raven SmarTrax MD User Manual

P/N 016-5030-020 Rev. D 19
VIPER 4
NODE ORIENTATION

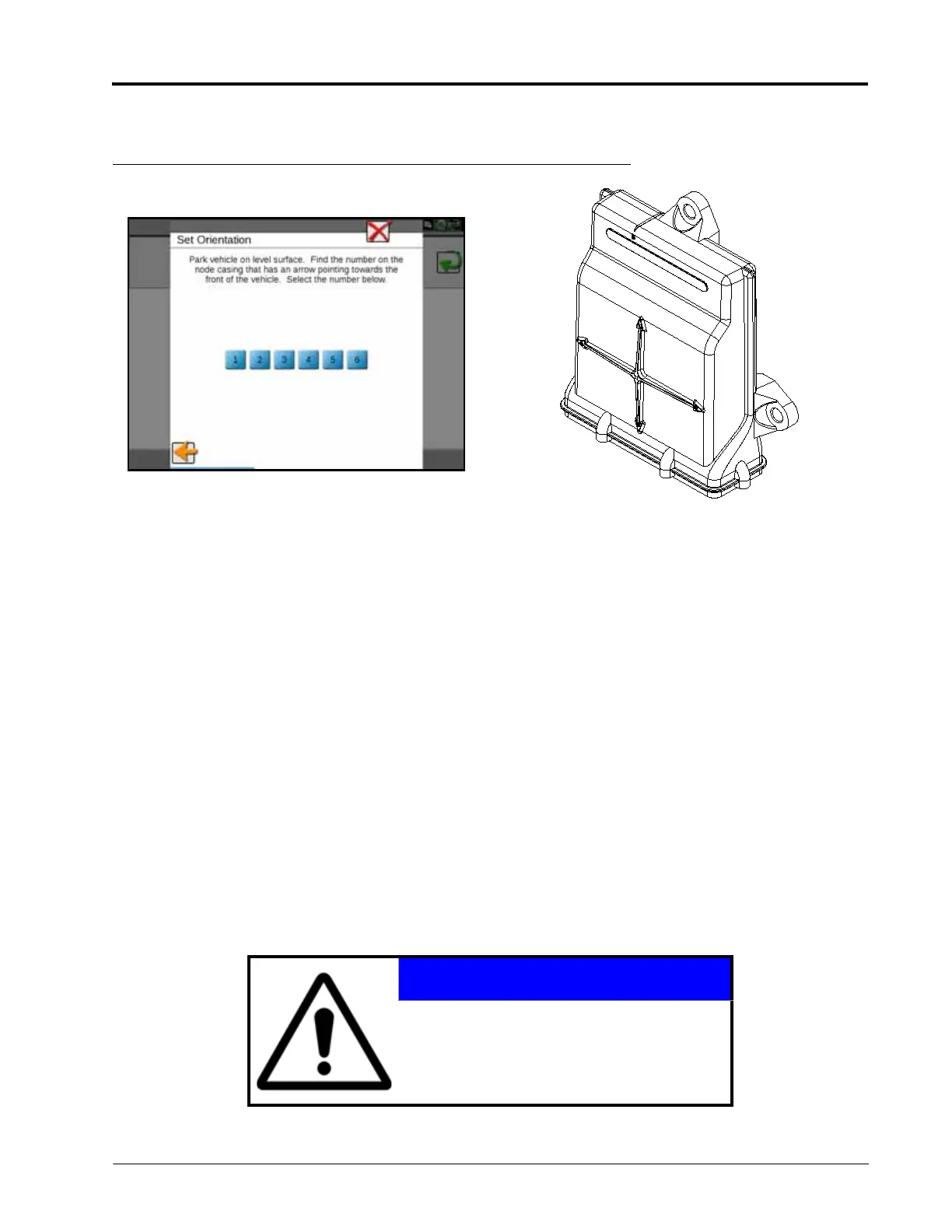

FIGURE 11. Node Orientation Screen
3. Ensure that the machine is parked on a level surface.
4. Select the number that corresponds with the node arrow number pointing toward the front of the machine.
IMPORTANT: Selecting the incorrect node arrow number may cause poor steering performance!
NOTE: The SmarTrax MD calibration wizard will perform an initial calibration on the SmarTrax MD tilt sensors.
The wizard will automatically advance to the next step in the calibration process once the node
calibration is complete.
CONFIGURING WHEEL BASE AND ANTENNA OFFSETS
If a generic machine profile was selected during the machine configuration process, the Wheel Base, Antenna
Position, and Antenna Height values must be entered into the SmarTrax system.
IMPORTANT: If a specific machine profile was selected during the machine configuration process, the Wheel base,
Antenna Position, and Antenna Height measurements will be automatically populated in the screen.
However, the antenna mounting position may vary on the machine, so it is important to re-measure the
Antenna Position and Antenna Height to verify that the setting in the Viper 4 is correct. The Wheel Base
value cannot be changed.
NOTICE
The Wheel Base, Antenna Position, and Antenna
Height values are critical to the operation of the
SmarTrax system. Measure these dimensions
accurately to ensure optimal SmarTrax MD
system performance!
6
5
1
2
3
4
