5
P/N 016-5030-020 Rev. D 85
ENVIZIO PRO AND CRUIZER II CONSOLES CALIBRATION AND OPERATION

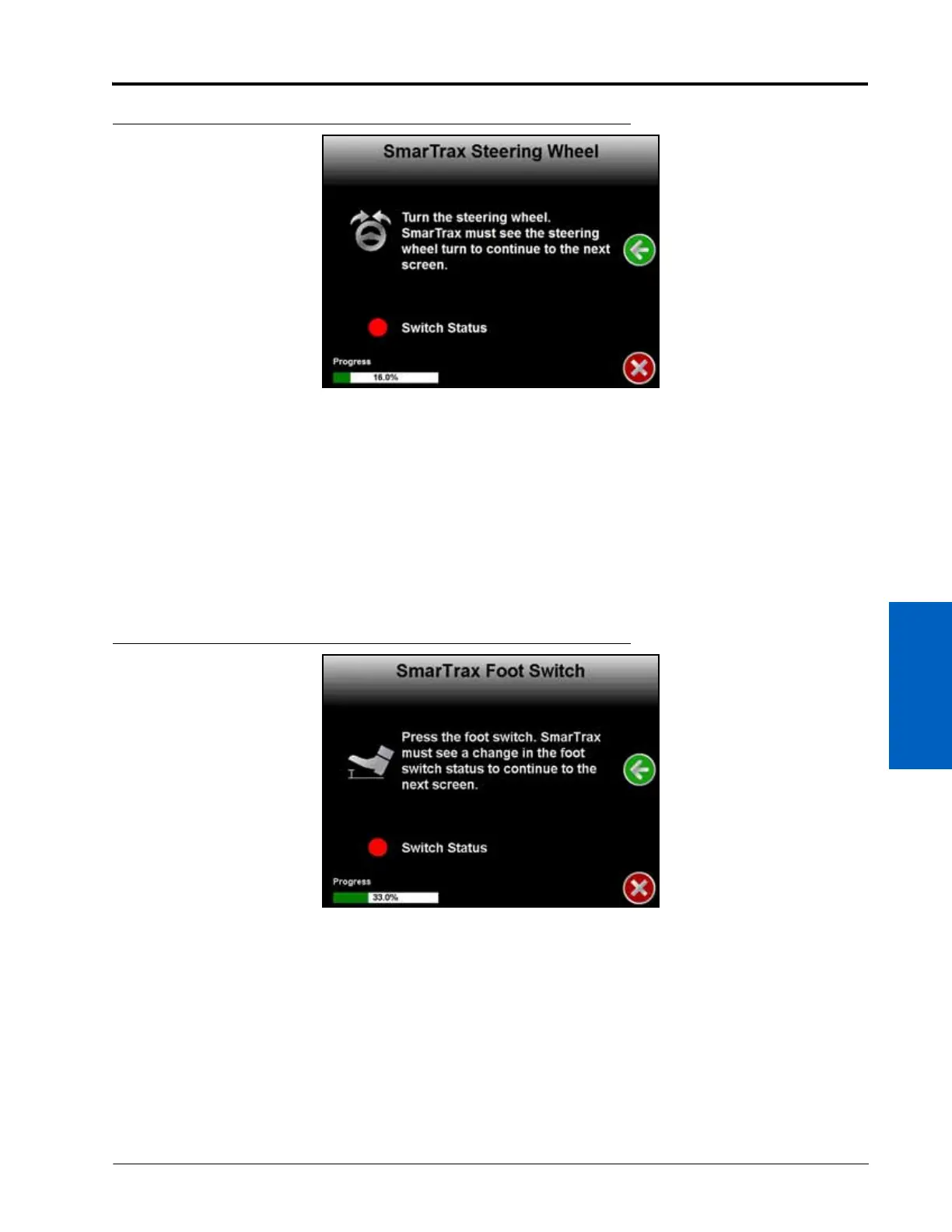

FIGURE 23. Steering Switch Calibration Screen
1. Review the on-screen instructions and turn the steering wheel to verify proper operation.
NOTE: The SmarTrax MD Setup Wizard will automatically advance to the next step in the calibration process
when the steering wheel is turned. If it does not, refer to Chapter 6, Troubleshooting for
troubleshooting information. If the problem persists, contact your local Raven dealer for further
information.
2. Proceed to the Engage Switch Calibration section below to continue with the SmarTrax MD system calibration.
ENGAGE SWITCH CALIBRATION
FIGURE 24. Engage Switch Calibration Screen
1. Review the on-screen instructions.
2. Press and release the foot switch or engage switch.
NOTE: The SmarTrax MD Setup Wizard will automatically advance to the next step in the calibration process
when the engage switch it detected.
To Next Page
