5
P/N 016-5030-020 Rev. D 91
ENVIZIO PRO AND CRUIZER II CONSOLES CALIBRATION AND OPERATION

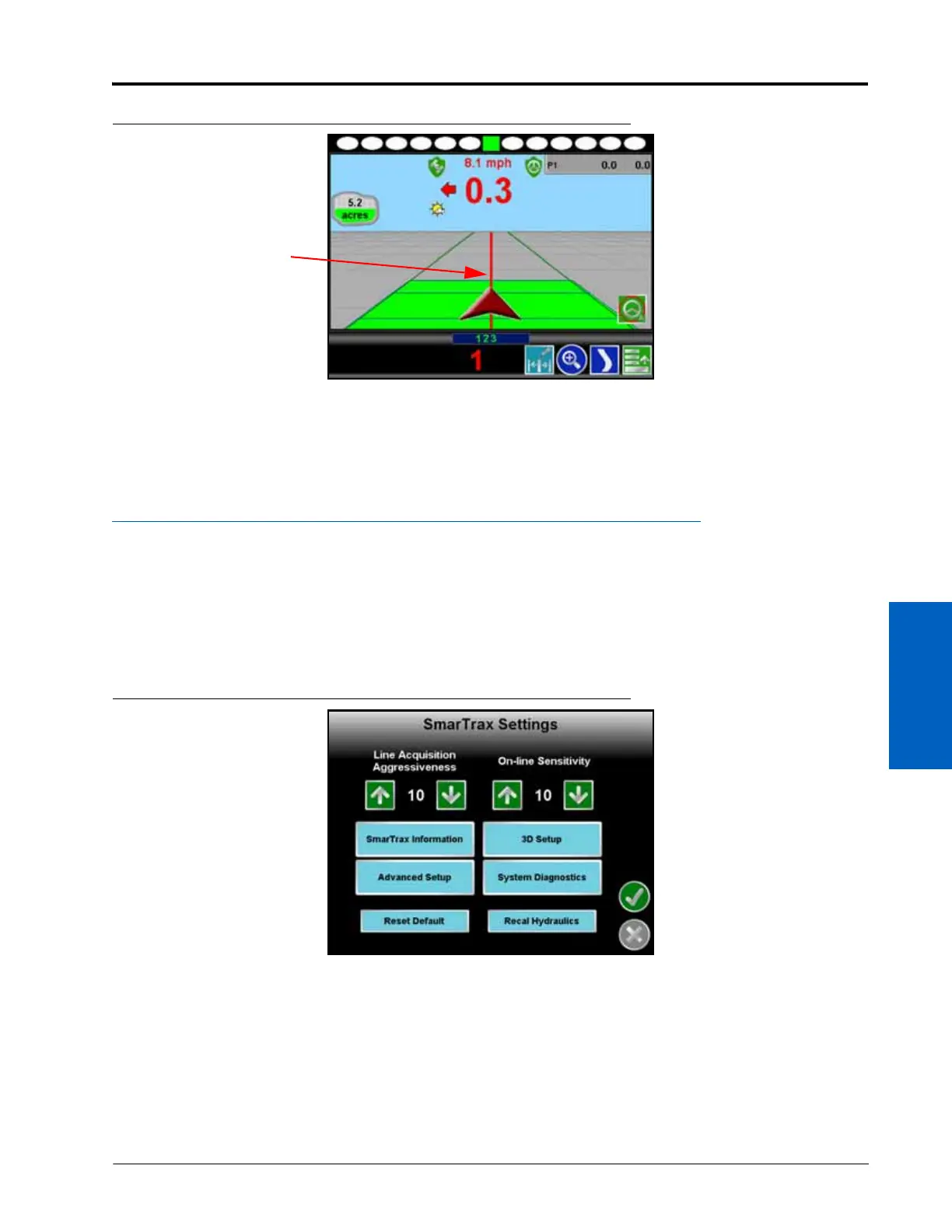

FIGURE 32. OL Mode
NOTE: The screen in Figure 33 illustrates an example of a situation in which SmarTrax MD is operating in OL
mode. This mode will remain active as long as the machine steers within 24 inches [60 cm] of the
displayed guidance line.
ADVANCED SETUP AND DIAGNOSTICS
This section provides detailed information on the various settings and options available in the SmarTrax MD
screens. The SmarTrax MD Settings screen may be accessed in two ways:
•From the Home screen, select the Tools Menu icon, then the Steering icon.
• In an active job, select Next in the SmarTrax MD sidebar.
FIGURE 33. SmarTrax MD Settings Screen
NOTE: In Cruizer II software, the “3D Setup” option is displayed as “Terrain Comp”.
