1.Usingthesuppliedmountingtemplate ,markthelocationoftheﬁxingholesonthemounting

surface.

2.Drillholesforthemountingﬁxingsusingadrillwithasuitablesizeddrillbit.

3.Screwtheﬁxingsapproximatelyhalfwayintotheholesinthemountingsurface.

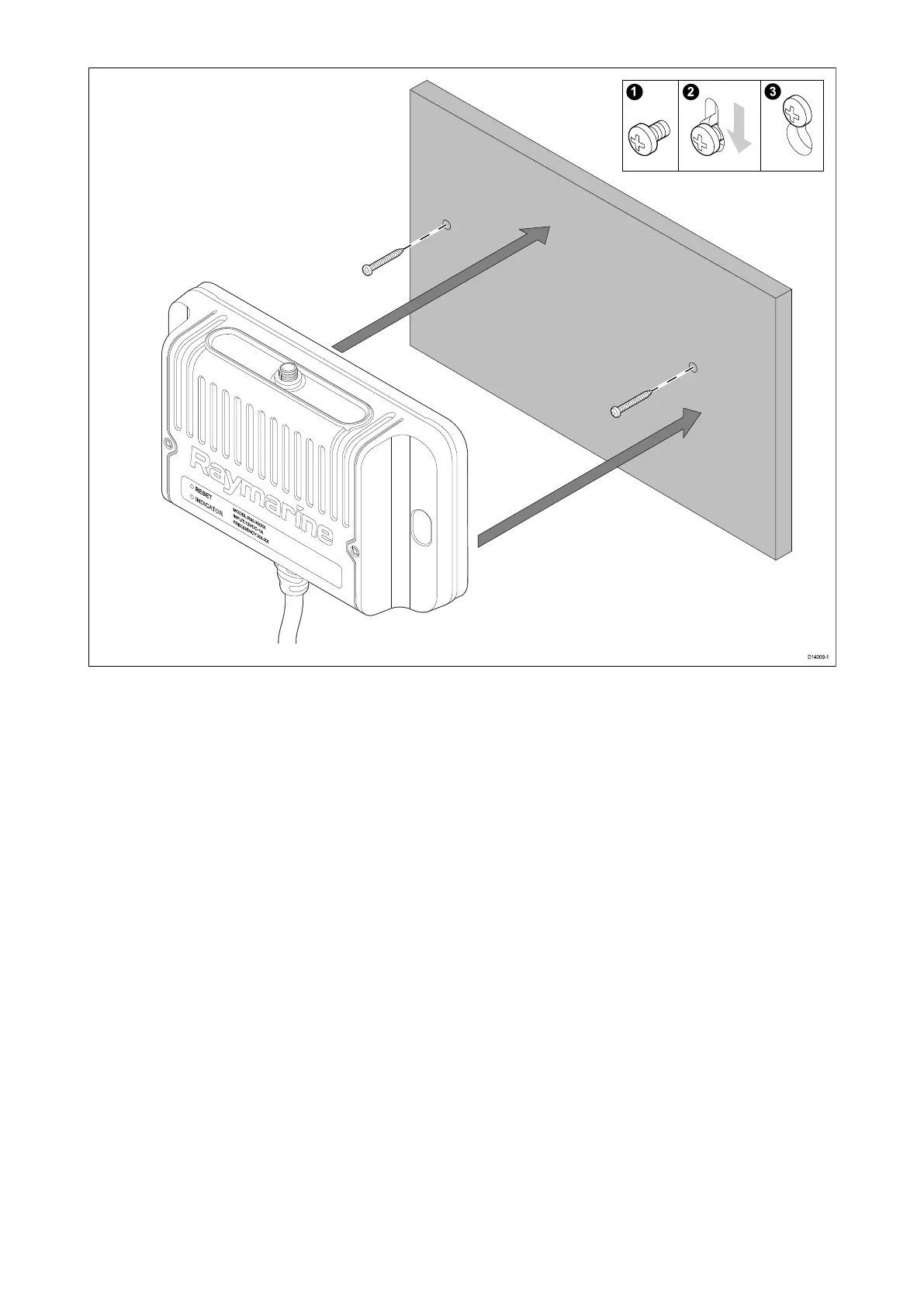

4.PlacetheWirelesshubovertheﬁxingscrewsandpushdowntolockintopositions

5.Fullytightenthescrews.

6.Connecttheantennatothetopofthehub.

44
