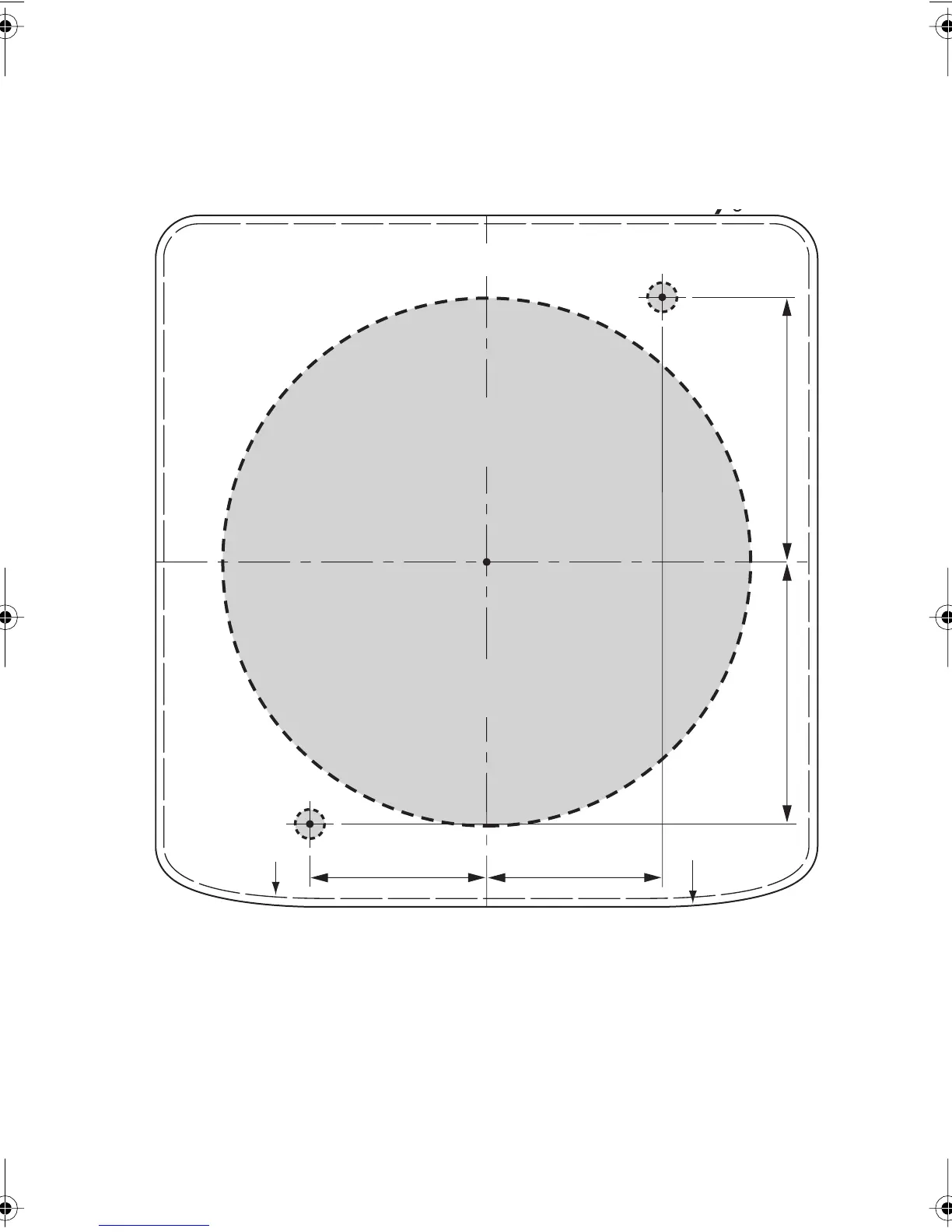

SURFACE MOUNT template for
ST60+ Instruments
1.185 in (30.1 mm) 1.18 in (30.0 mm)
SURFACE MOUNT
Template
Sun cover edge
D8157-1
Cut hole
3.54 in (90 mm)
diameter
Drill hole, 3/16 in (5 mm)
diameter in 2 positions
1.77 in (45.0 mm)1.76 in (44.6 mm)
Remove material
from shaded areas only
TOP
Instrument edge
