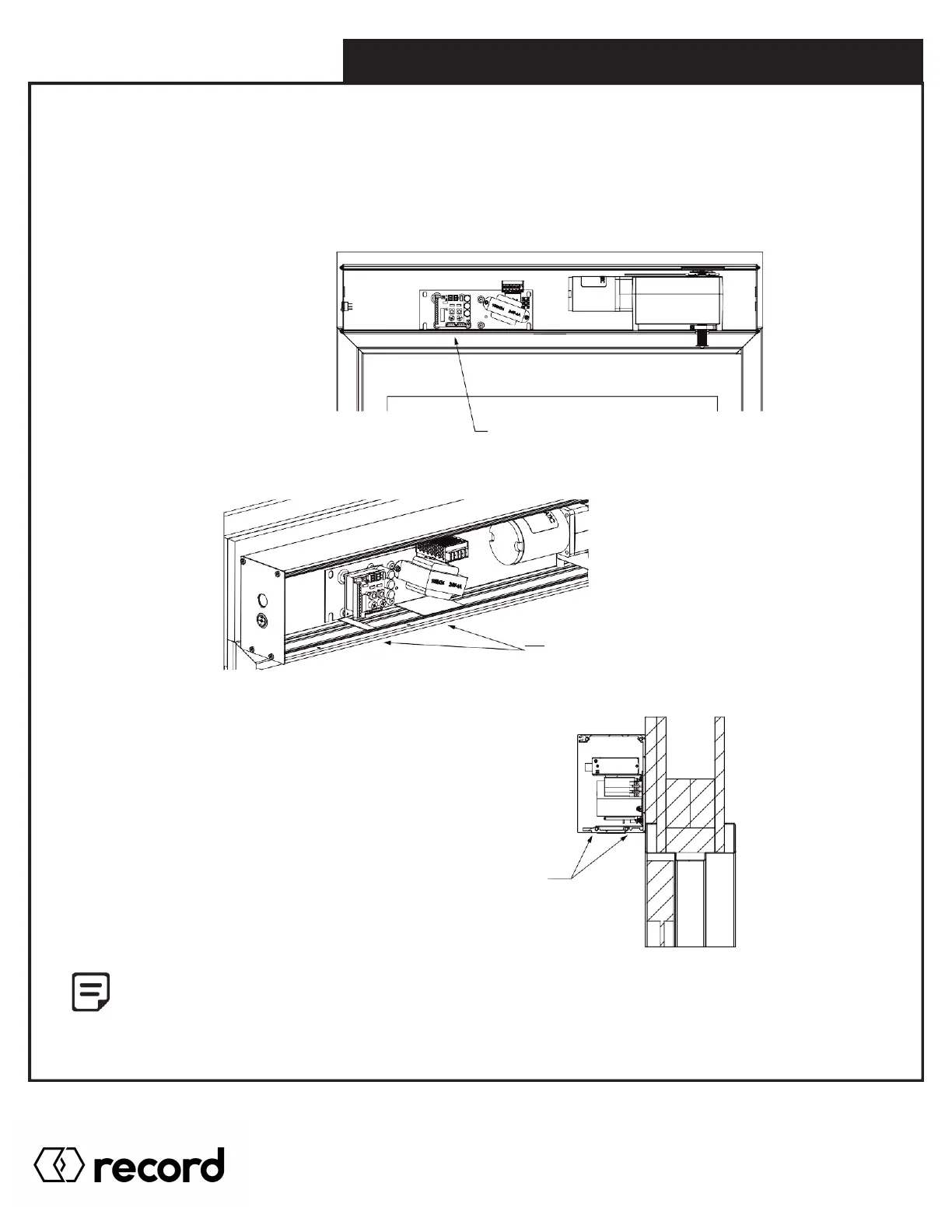

2.5 Control Board Installation
Place the board in the header besides the motor of the gearbox. The control board will be on the opposite side of the
gearbox motor. For example, in a right hand (RH) operator, the control board is on the left of the gearbox motor. There
is no need to secure the board in place, due to the provided mounting bracket.
CONTROL BOARD IS ON THE LEFT OF THE MOTOR
(FOR A RIGHT HAND OPERATOR)
CONTROL BOARD MOUNTING
BRACKET CAN STAND UPRIGHT
(ON BOTH BOSSES), WITHOUT
SCREWS TO HEADER
CONTROL BOARD BRACKET
CAN STAND FREELY OR BE
MOUNTED TO THE WALL USING
ANY APPROPRIATE MEANS
(i.e. DOUBLE SIDED TAPE, SCREW, ETC.)
Grounding wire of the transformer will require a separate screw.
