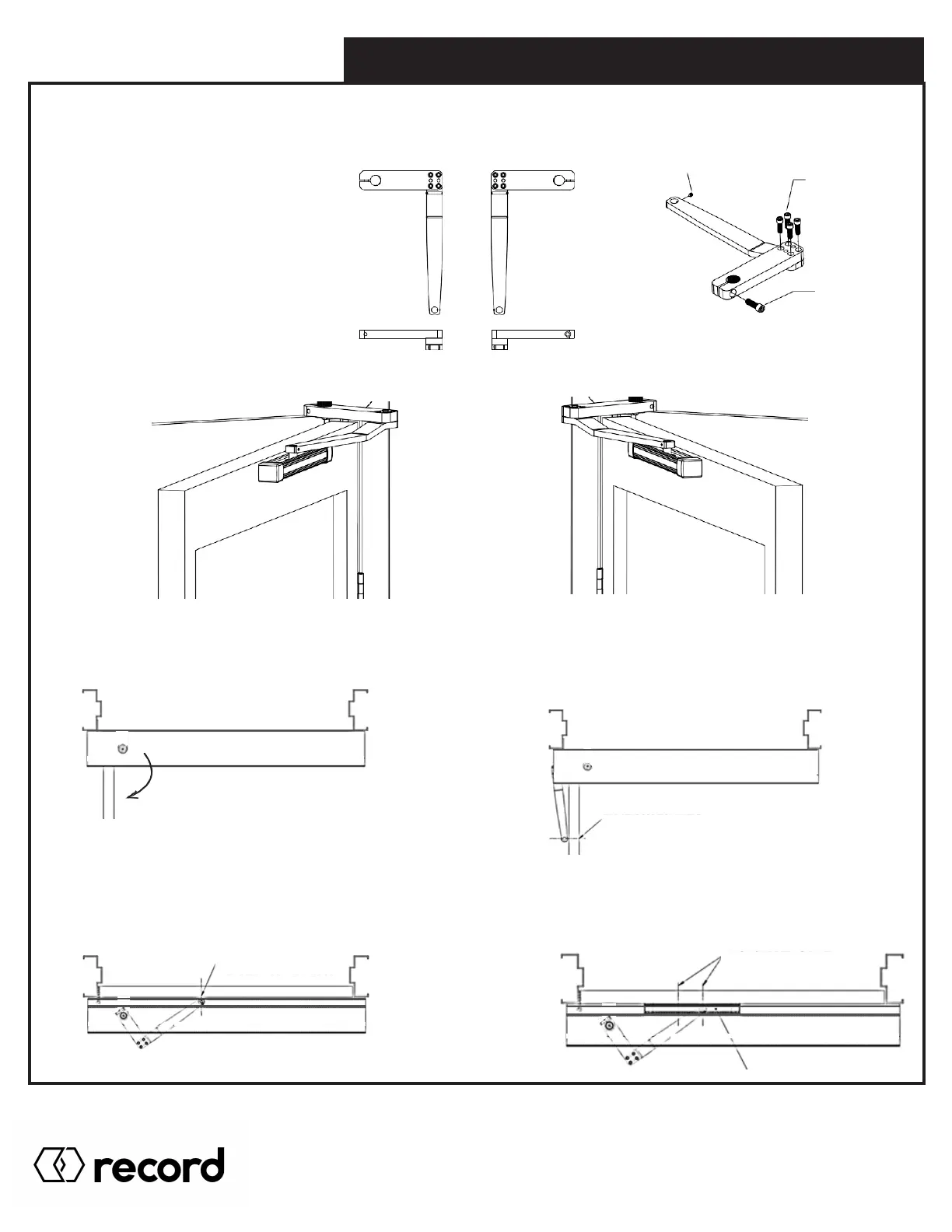

3.2 Pull Arm (Z-arm) Installation
M4 x 6mm CONE POINT
SOCKET SET SCREW
(4) M6 x 18mm
SOCKET CAP
SCREWS
LEFT HAND RIGHT HAND
M8 x 25mm
SOCKET CAP
SCREW
LEFT HAND PULL
RIGHT HAND PULL
STEP 1
Set operator switch to Hold Open. The drive shaft
(spindle) will turn until hitting the internal doorstop.
STEP 2
Keep the door in full open position. Fit Z-Arm to the drive shaft
(spindle) at the full open position and tighten. Mark open
position where roller touches door.
STEP 3
Set operator switch to Off and allow door to close under
STEP 4
MARK HERE
spring pressure. In closed position, place mark where
roller touches door.
Fit Pull track in line with 1st and 2nd mark and fix to
the door. Turn operator switch to Automatic.
Test and adjust if necessary.
MARK HERE
ALIGN SLIDE TRACK WITH
MARKED POSITIONS
PULL TRACK
