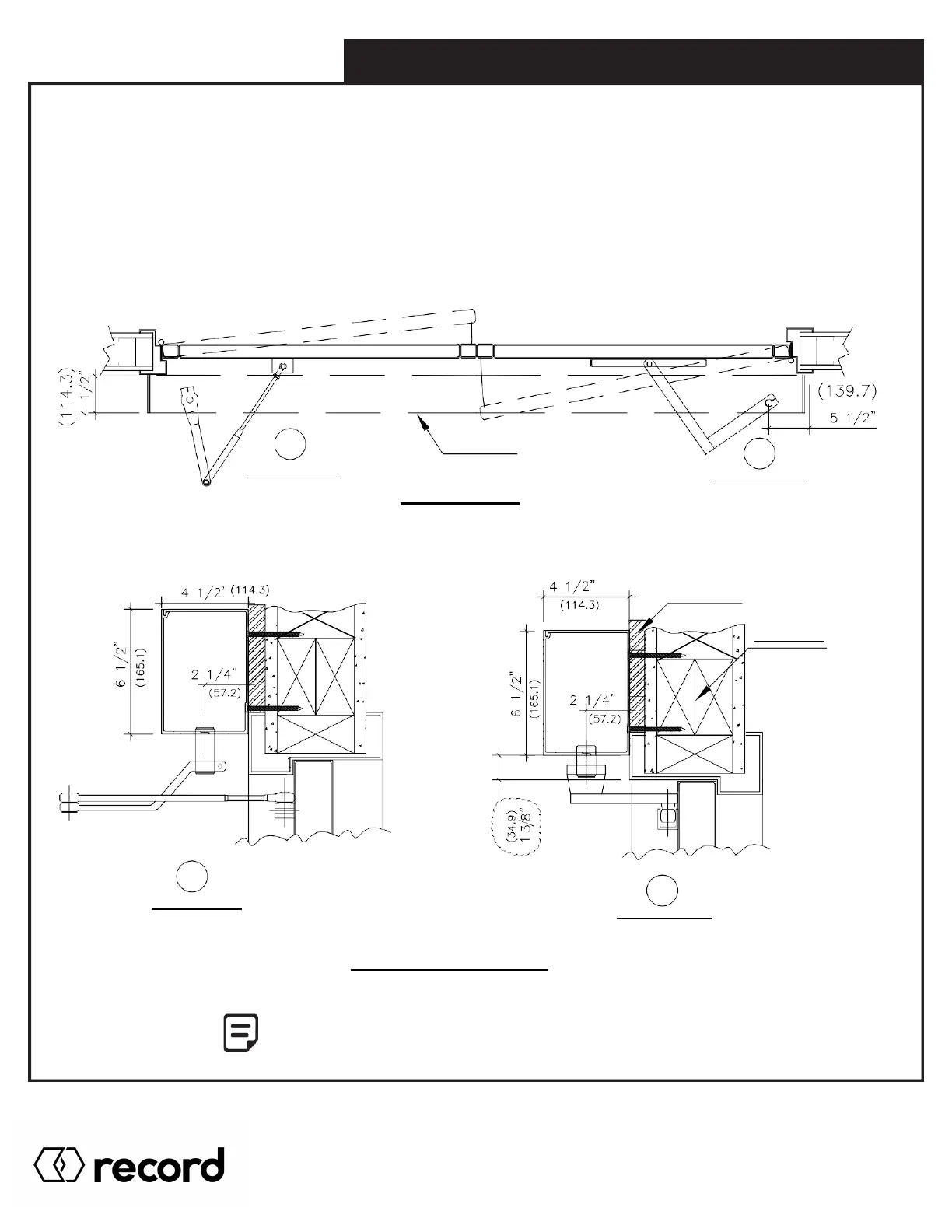

2.3 Double Egress Header
Double Egress operators have a Pull type and Push type operator in the same housing, the header must be mounted
1 3/8 inches above the door frame. For Push type operator, arm clearance issues may arise. To ensure the arm clears any
existing doorstops, mount the arm according to the diagram below marked PUSH CONFIG.
See Section 3.1 to change the Push arm configuration.
1
HEADER
2
PUSH CONFIG.
PULL CONFIG.
PLAN VIEW
FA-8 PUSH
OPERATOR
& HEADER FA-8 PULL
OPERATOR
& HEADER
FILLER PLATE AS
REQUIRED BY OTHERS
REINFORCEMENT
BY OTHERS
ARM HT. IS SET REF. TO
INSWING OPERATOR
1
PUSH CONFIG.
2
PULL CONFIG.
VERTICAL SECTION
For Push application, the long spindle is provided.
2.0 OPERATOR INSTALLATION
Pg. 18
HA8-SP Manual V. 7.0
