4.3 Back Check and Latch Adjustment
Back Check Adjustment
Set the door to full open position, lower magnet should cross over the back check switch (where grey wire conductor plugs
into green circuit board) engaging back check speed 10 degrees prior to the door reaching fully open.
The control board slows the door to a gentle stop at the fully open position. Doors shall be adjusted so Back check will not
occur before 60 degrees of opening (maximum, preferred at 10 degrees before full open).
Latch Adjustment
Set the door to close position, upper magnet should be over the latch reed switch. This magnet signals the controller to slow
the closing door speed before stopping at the latch or doorstop.

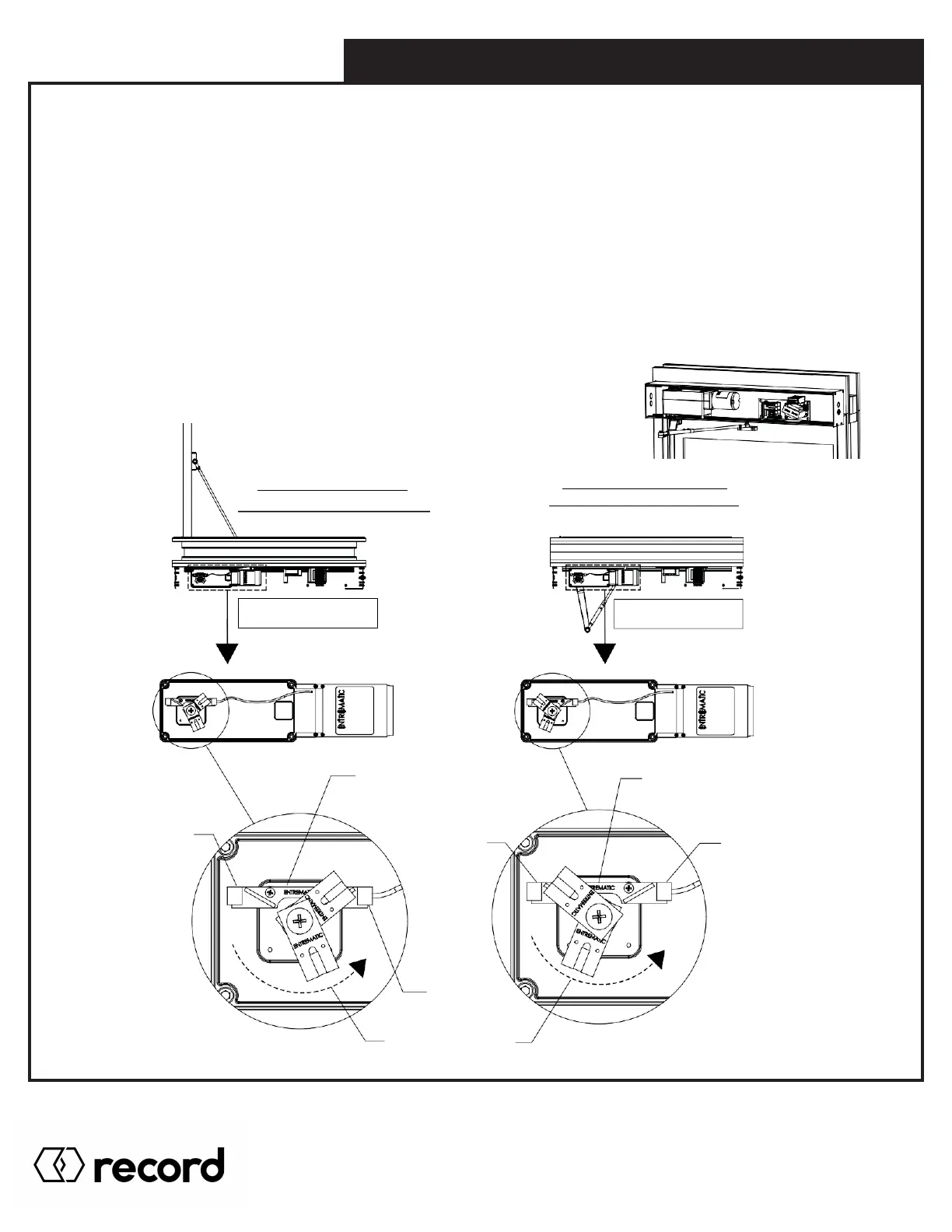

Back Check & Latch - Left Push Application
LEFT HAND PUSH
LEFT HAND PUSH - OPEN
(GENERAL MAGNET POSITION)
LEFT HAND PUSH - CLOSED
(GENERAL MAGNET POSITION)
YOU ARE ON THIS SIDE
OF DOORWAY
LATCH CHECK
SIDE
REED SWITCH
CLOSEST TO HEADER
WALL (PUSH)
LATCH CHECK
SIDE
REED SWITCH
CLOSEST TO HEADER
WALL (PUSH)
BACK CHECK
SIDE
BACK CHECK
SIDE
MAGNET DETAIL
(LH PUSH OPEN)
SPINDLE ROTATION
FOR DOOR OPEN
MAGNET DETAIL
(LH PUSH CLOSED)
4.0 OPERATOR TUNING
YOU ARE ON THIS SIDE
OF DOORWAY
