2.1 Pre-Mounting Header Box Instructions
Power supply may be pulled into the header at the same time the header assembly is positioned. Make sure all power is
turned off before handling the supply wires. This should be done by a certified electrician and within the guidelines of the
local electrical codes.
Be sure there is proper support in the wall to secure the header at the vertical jambs, and behind the header at intervals
between the vertical jambs. Secure the header to the top of the door frame with the appropriate fasteners as indicated below.

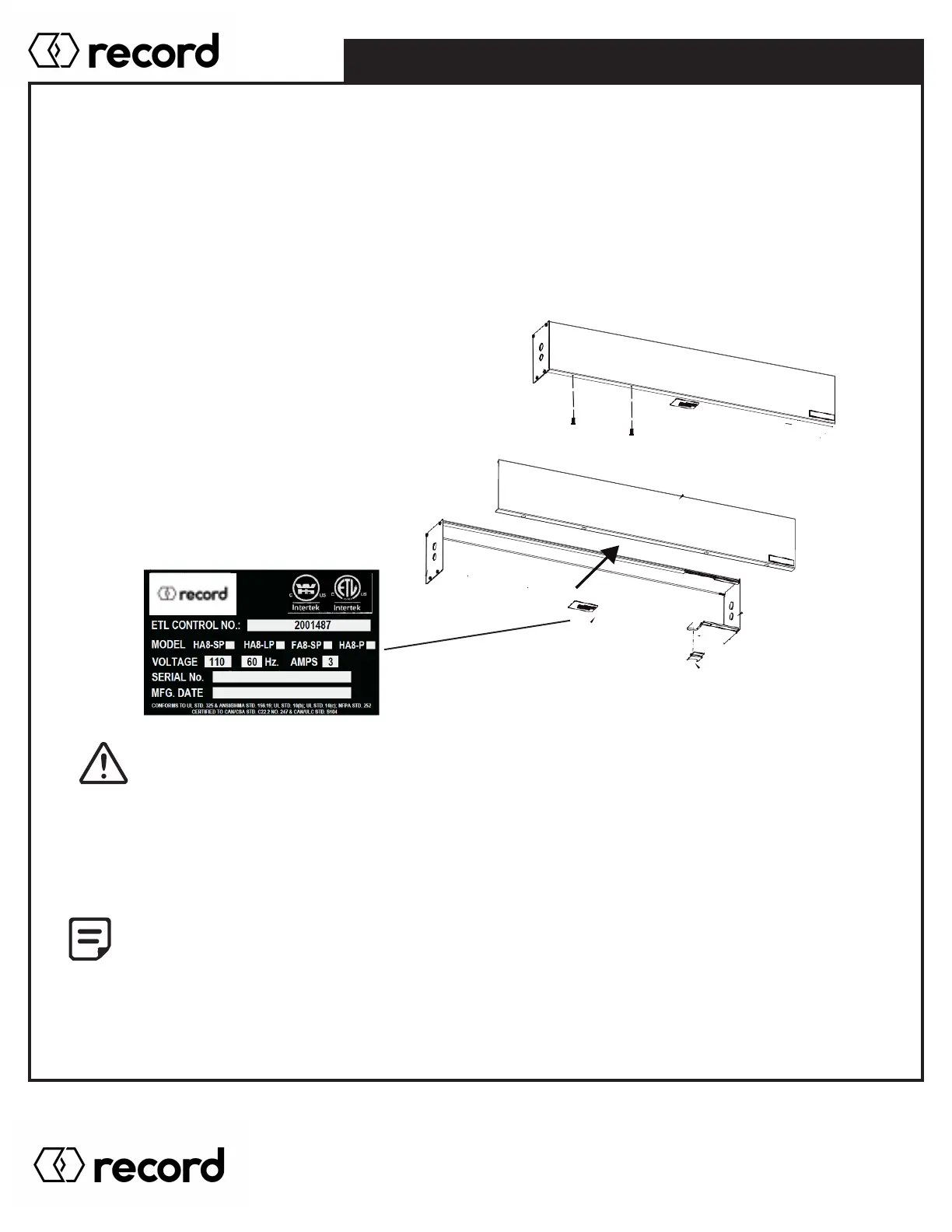

The header is a 2 piece box consisting of the body (portion anchored to the door frame) and the cover (removable portion
used during installation and service). Remove the header from its packaging and place it on a protective surface. To remove
the cover, please follow the steps below.
STEP 1
Remove 2 Machine Screws #1/4-20 x 3/4” anchoring the cover.
STEP 2
With the screws removed, the cover should be able to
be lifted up and outwards with minimal effort.
Carefully, set the cover in a location where it will not be
damaged.
HEADER COVER
LH END PLATE
RH END PLATE
HEADER BODY
HEADER PLASTIC CAP
(AT THE END OF
INSTALLATION)
• Under No Circumstances shall the Certification Label of the HA8 operator be tampered, modified
or removed!
• It is the responsibility of the final installer and/or installation company, to certify that the final
completed operator is installed in accordance with local building codes and applicable laws.
• All holes should have any sharp edges and burrs removed; ensure electrical bushing is used.
• If operator is installed on aluminum framing high and low voltage wiring can be routed through
vertical and horizontal tubes.
• Please reference the installation dimension 1.5 inches from the hinge side of the door.
2.0 OPERATOR INSTALLATION
Pg. 13
HA8-SP Manual V. 7.0
