4.1 Operator Tuning

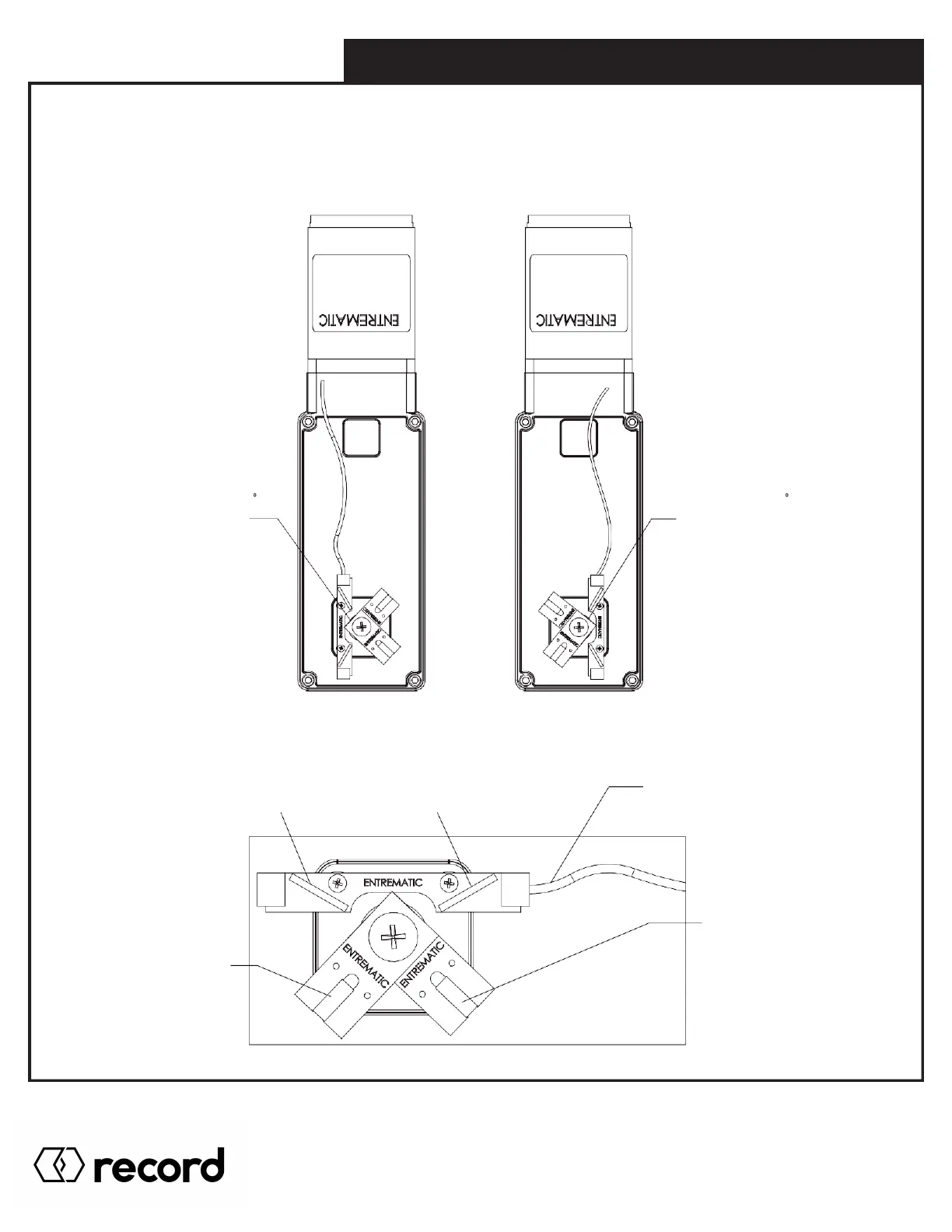

Operator Limit Switches (Magnets) are shown below.
LEFT HAND
OPERATOR
RIGHT HAND
OPERATOR
MAGNETS AT 90
POINTING TO
THE LEFT
MAGNETS AT 90
POINTING TO
THE RIGHT
LATCH CHECK REED
(NO GREY WIRE)
BACK CHECK REED
(WITH GREY WIRE)
BACK CHECK WILL
ALWAYS BE READ ON
THE TERMINAL WITH
GREY REED SWITCH WIRE
UPPER MAGNET
(LIMIT SWITCH)
USE FOR LATCH
CHECK
LOWER MAGNET
(LIMIT SWITCH)
USE FOR BACK
CHECK
