9.2 Header Cover Installation
After all adjustments have been finished, the header cover must be installed to the header box. Fasten to the body and
operator using (4) screws. The Header Cap can then be placed to complete the install.
9.3 Safety Decals

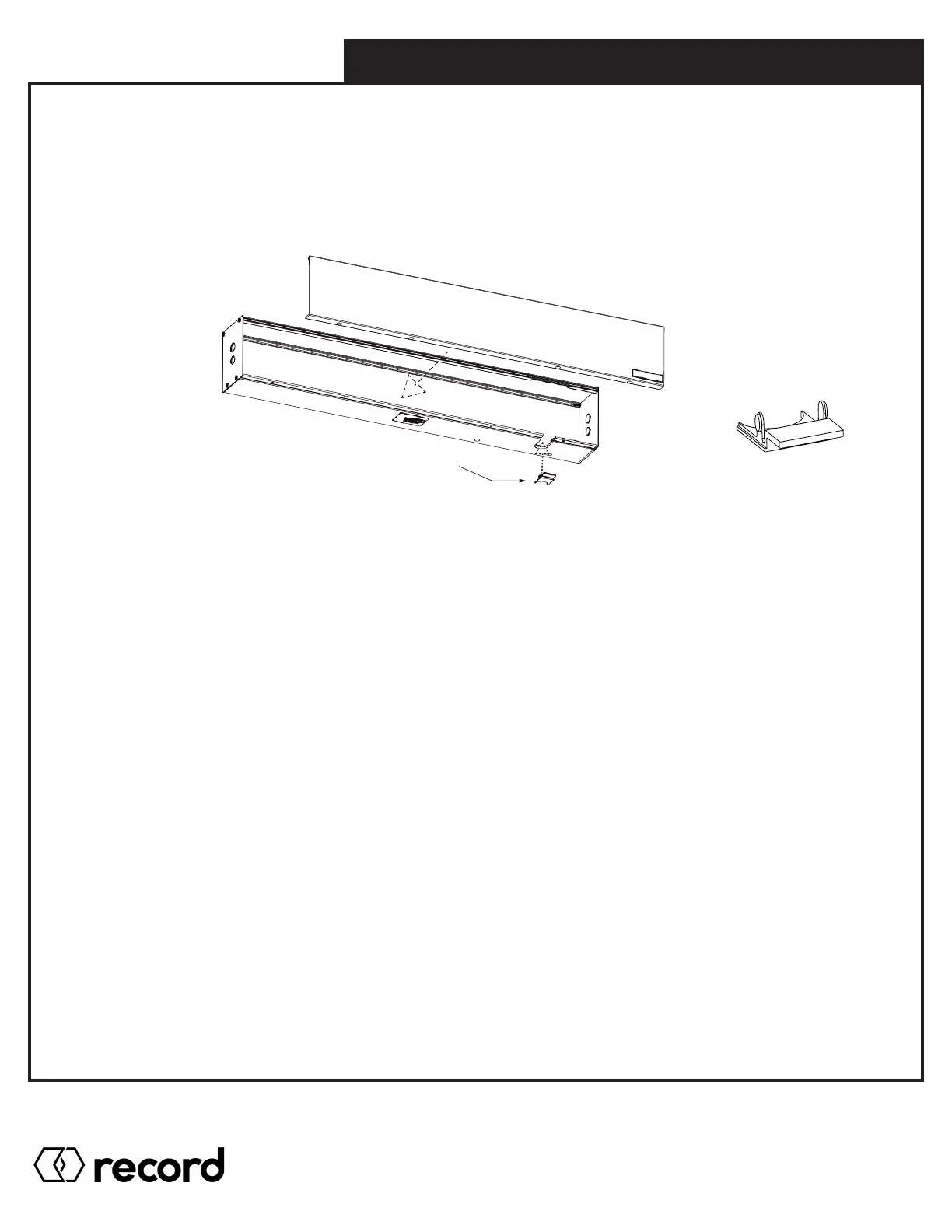

PLACE THE HEADER
PLASTIC CAP HERE
BEFORE THE COVER
HEADER CAP
Install all safety, traffic control, and instruction decals to the door as required. This is very important. Failure to do this leaves
the installer LIABLE for any accident that might occur. This must be done!
A summary of the ANSI standard A156.19 requirements for safety decals is as follows:
Each decal shall be mounted on the door at a height of 50 ± 12” (1270 ± 305 mm) from the floor to the center line of the sign.
The sign chosen will depend on the classification of the door operator.
Clean the area well before applying the decal. Remove the upper portion of the backing and roll the decal onto the door in
a slow motion. Check to confirm the decal is straight. Use a flat edged soft spreader to smooth out the decal. Remove the
lower backing from the decal and smooth out any air pockets.
After all adjustments have been finished, the face cover must be installed to the back plate by snapping cover into position.
Safety Sticker Placement Example
The center of the sticker height should be between 38” [965 mm] and 62” [1574 mm], above the finished floor.
See ANSI standard A156.19 requirements for additional safety decal information.
Pg. 66
