2.6 Connect Motor Wire Leads

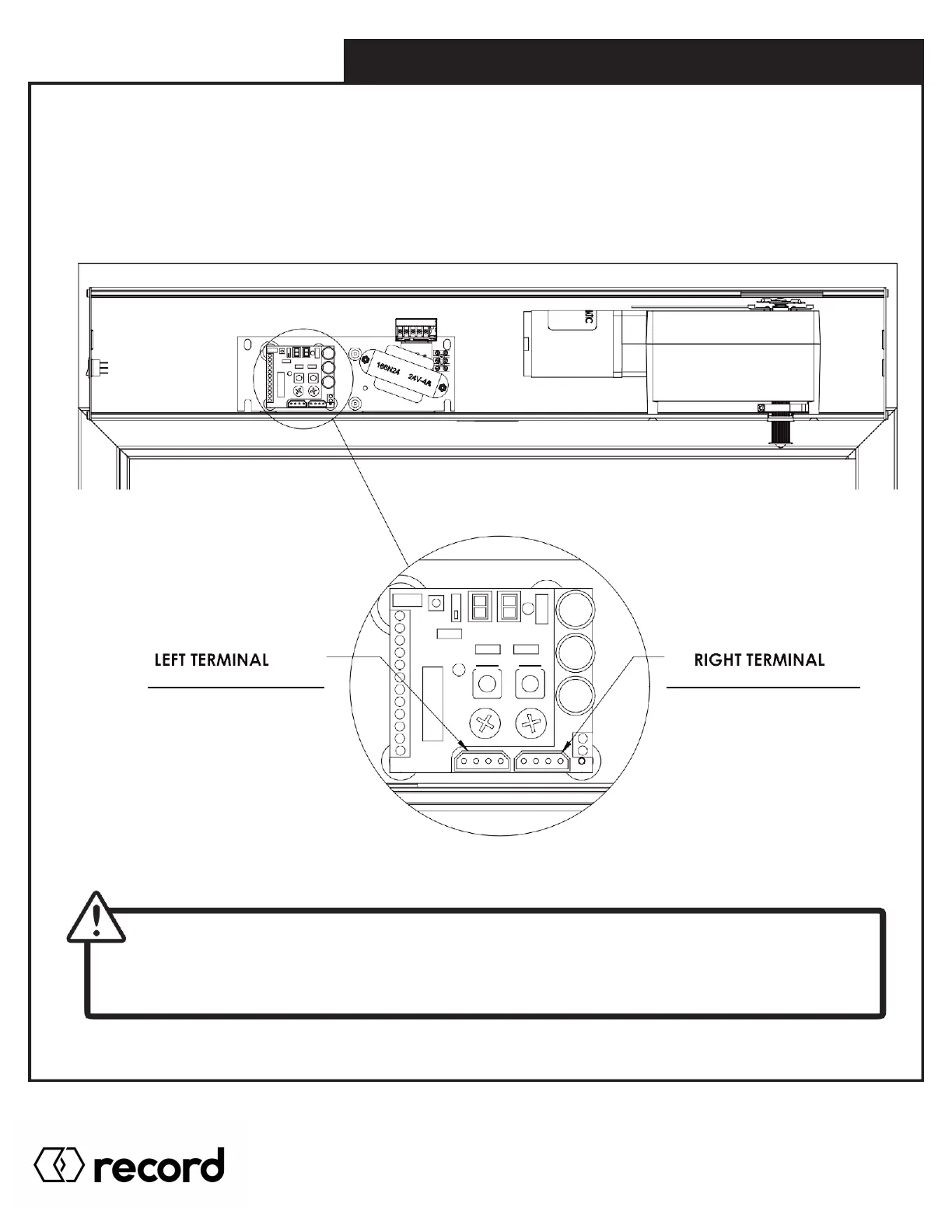

Connect the Motor wire leads (large four pin), the Back Check and Latch wire lead (small three pin) to the top of the board.
Motor is plugged in the Right Terminal for right hand swing, Left Terminal for left hand swing.
DIGITAL BOARD
CONNECT MOTOR HARNESS
TO FOR A
LEFT HAND OPERATOR
CONNECT MOTOR HARNESS
TO FOR A
RIGHT HAND OPERATOR
WARNING!
If the motor is not plugged into the circuit board there is no motor resistance against the spring
when manually opening the door. The door or arm will close very quickly if opened, which could
cause harm to pedestrians!
2.0 OPERATOR INSTALLATION
Pg. 21
