Record HA8-SP - Page 35

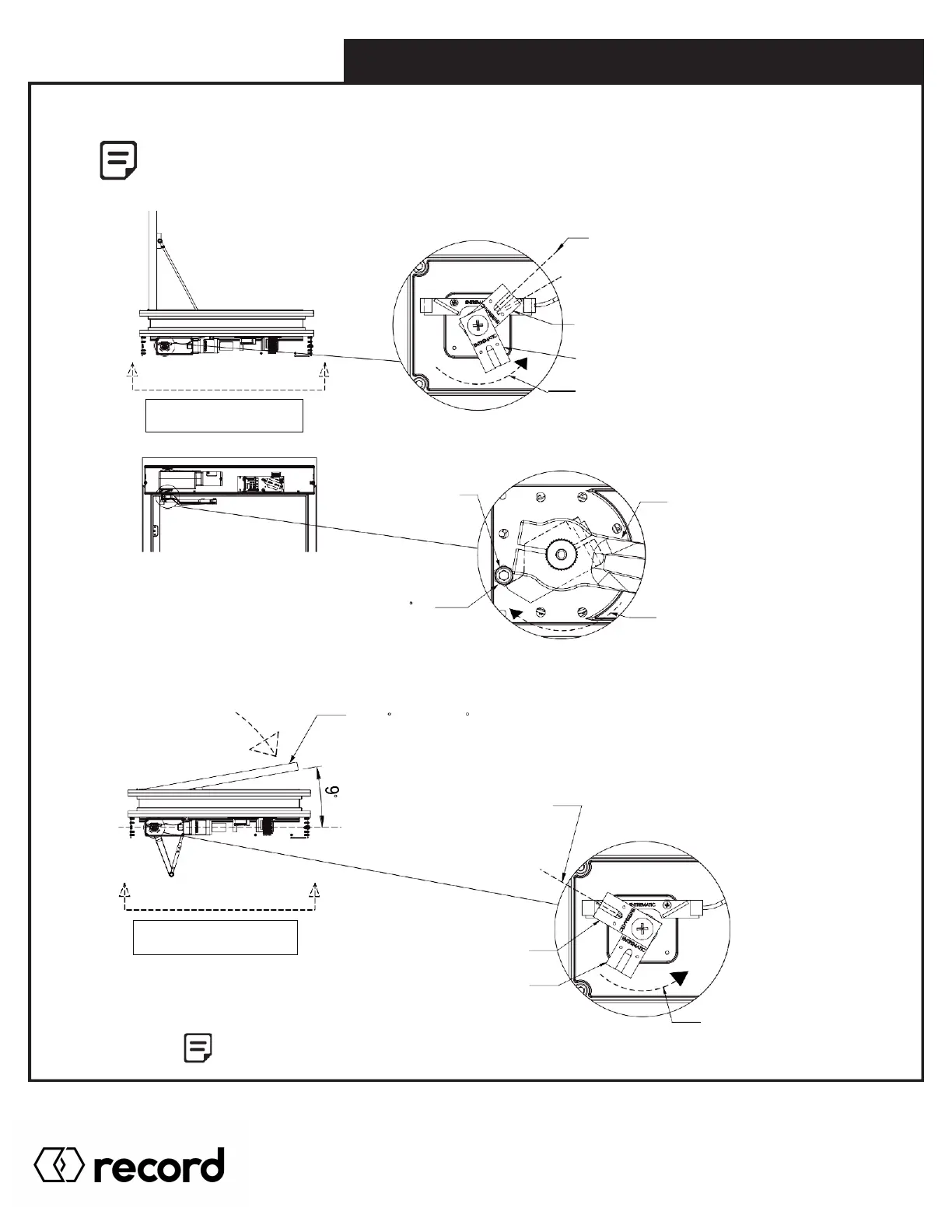

STEP 3 - Door Stops at Fully Open via Stopper
If your door can be manually opened until it hits a wall or other obstruction without stopping, then the operator
has been set up incorrectly. Please refer back to section 3.0: Arm Installation, and ensure the arm is only put on
after the switch has been set to Hold Open and the stopper has hit the nut.
TOP VIEW
LOWER MAGNET PAST LATCH
CHECK REED (WITH GREY WIRE)
AT FULLY OPEN POSITION
LOWER MAGNET
(LIMIT SWITCH)
UPPER MAGNET
(LIMIT SWITCH)
SPINDLE ROTATION
FOR DOOR OPEN
STOPPER NUT
& SCREW
BOTTOM VIEW
OPERATOR ARM
STOPPER HITTING NUT HERE IS
WHAT PREVENTS DOOR FROM
OPENING PAST 90
(OR THE FULLY OPEN POSITION)
STEP 4 - After Time-out, Door close to Latch check
DOOR 90% OF FULLY CLOSED POSITION
(9-10 FOR A 90 OPEN DOOR) AND
SHOULD START TO SLOW DOWN NOW
SPINDLE ROTATION
FOR DOOR OPEN
UPPER MAGNET IN LINE
WITH LATCH CHECK REED
(NO GREY WIRE) DURING
START OF LATCH CHECK
POSITION
TOP VIEW
UPPER MAGNET
(LIMIT SWITCH)
LOWER MAGNET
(LIMIT SWITCH)
Door and Magnets will then return to positions in STEP 1
SPINDLE ROTATION
FOR DOOR OPEN
4.0 OPERATOR TUNING
YOU ARE ON THIS SIDE OF
DOORWAY
YOU ARE ON THIS SIDE OF
DOORWAY
Pg. 35
HA8-SP Manual V. 7.0
