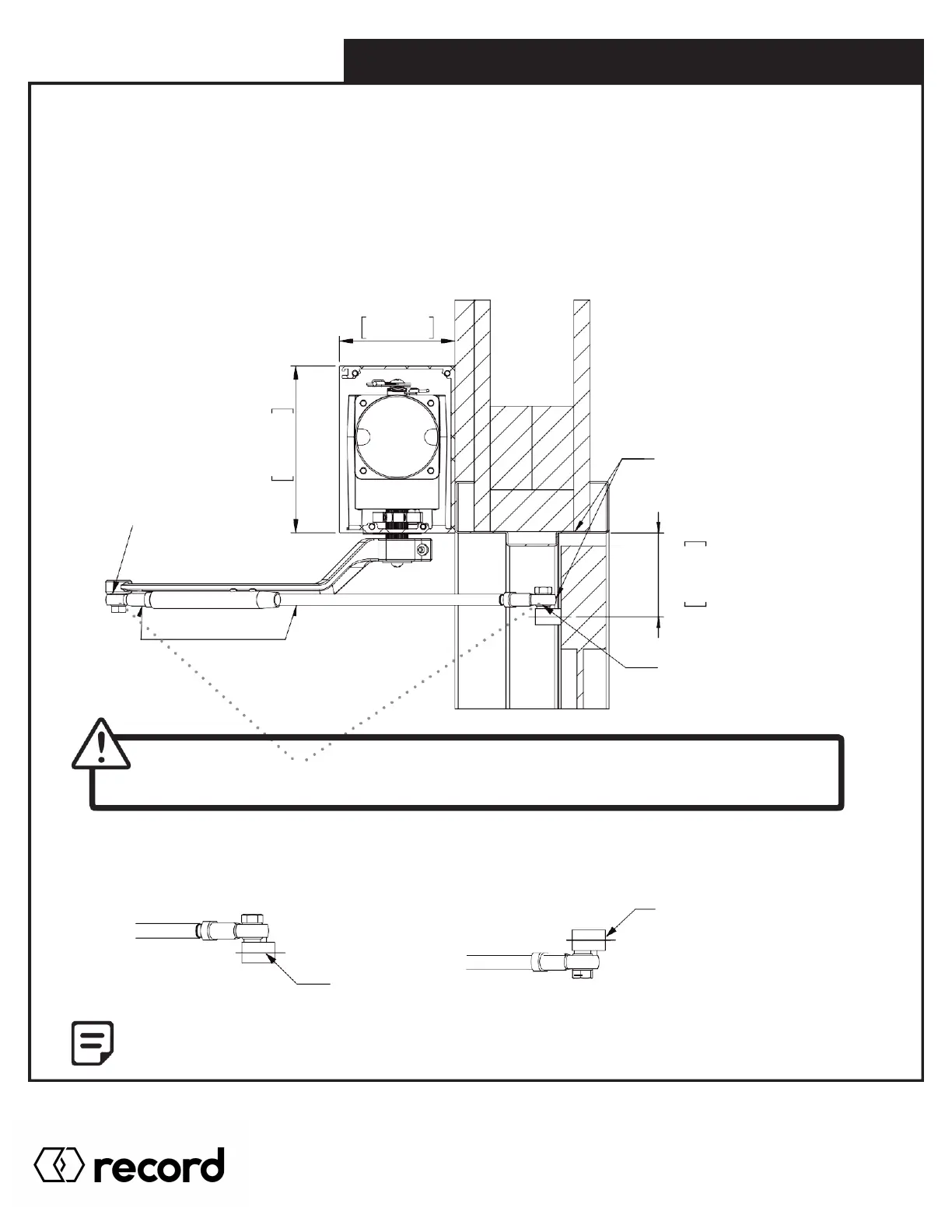

Option 2 - Double Egress Configuration
For this option, Sleeve and Rod are below the Main handle. Use this configuration when the clearance between the Rod/
Door shoe and the top jamb (or any other obstruction in the swing path) prevents Option 1 from being properly installed.
With this option, an approximate 1 inch in vertical space is gained. This configuration also uses on Double egress headers,
where there is a pull arm and a push arm installed. The Rod and Sleeve are flexible at the ends where they are bolted
(semi-ball joint) which will provide additional flexibility during install.
Used when clearance is an issue, an extra inch or more is added for installation.
4.5in
114mm
FLEXIBLE PUSH
ROD JOINT
SLEEVE AND ROD
BELOW MAIN HANDLE
OPTION 2 PROVIDES AN
EXTRA INCH OR SO FOR
INSTALLATIONS WHERE
CLEARANCE OF TOP
JAMB AND PUSH ROD
IS AN ISSUE
FLEXIBLE PUSH
ROD JOINT
WARNING!
Please ensure Shoe Bolts at these joints are tightened after installation of arm is complete.
STANDARD
DOOR SHOE MOUNT
ALTERNATE
DOOR SHOE MOUNT - REVERSED
DOOR SHOE IS
ABOVE ROD END,
DOOR SHOE IS
BELOW ROD END
WHEN MOUNTING
SPACE IS AN ISSUE
FROM THIN TOP RAIL
Note that the rod is shown above the door shoe when installed, so that if the bolt ever loosens it will
not fall down via gravity. Should the door rail you are attaching to have a thinner horizontal top rail,
the door shoe can be reversed to be above the rod end if space permits.
3.2in
83mm
GUIDELINE
DIMENSION
