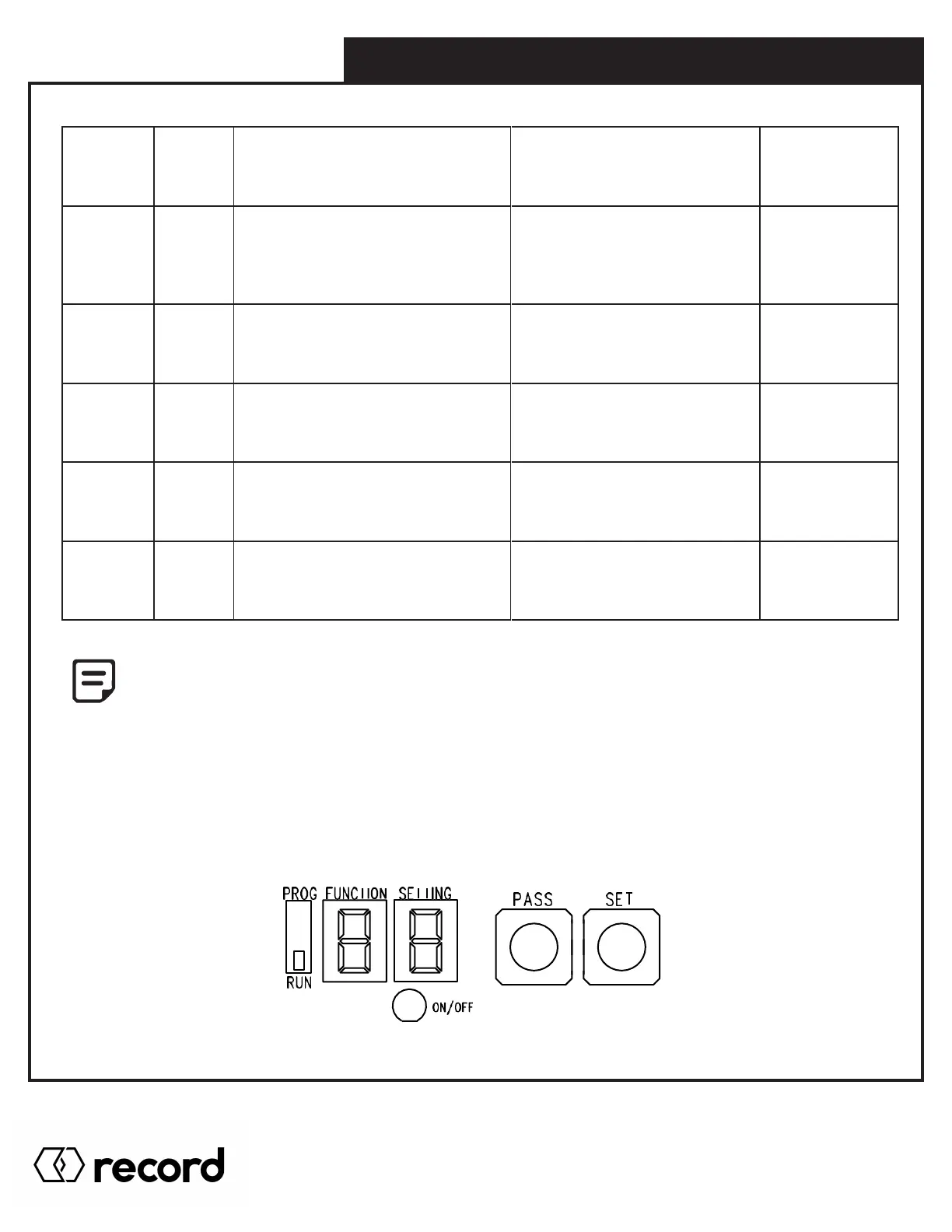

Record HA8-SP - Page 62

C
6
Safety1 sensor is a Normally
Closed input (N.C.)
Safety1 sensor is a Normally
Open input (N.O.)
LED OFF –
Safety1 is
Normally Open
C
7
Safety2 independent of Act’N1.
Safety2 is ON = door holds
Safety2 is OFF = door opens
Safety2 works with Act’N1.
For Safety2 & Act’N1 both ON
= door holds.
If Safety2 goes OFF = door opens
If Act’n1 goes OFF = door closes
LED OFF
Safety2 works
with Act’N1
C
8
SAFETY MONITOR 1 (MON 1) is ON
Monitors SAFETY1 input
Safety Monitoring OFF for SM1
LED OFF – no
safety monitoring
C
9
SAFETY MONITOR 2 (MON 2) is ON
Monitors SAFETY1 input
Safety Monitoring OFF for SM2
LED OFF – no
safety monitoring
C
A
SAFETY MONITOR 3 (MON 3) is ON
Monitors SAFETY2 input
Safety Monitoring OFF for SM3
LED OFF – no
safety monitoring
C
B
SAFETY MONITOR 4 (MON 4) is ON
Monitors SAFETY2 input
Safety Monitoring OFF for SM4
LED OFF – no
safety monitoring
A Switch or Jumper must be wired from the ON terminal to the OFF terminal for Programming to work!
RESET TO DEFAULT SETTING - Pressing both SET and PASS buttons for 5 seconds
7.0 DUAL DOOR PROGRAMMING
Pg. 62
HA8-SP Manual V. 7.0
