30
ARMING & TAKEOFF
ARMING THE DRONE

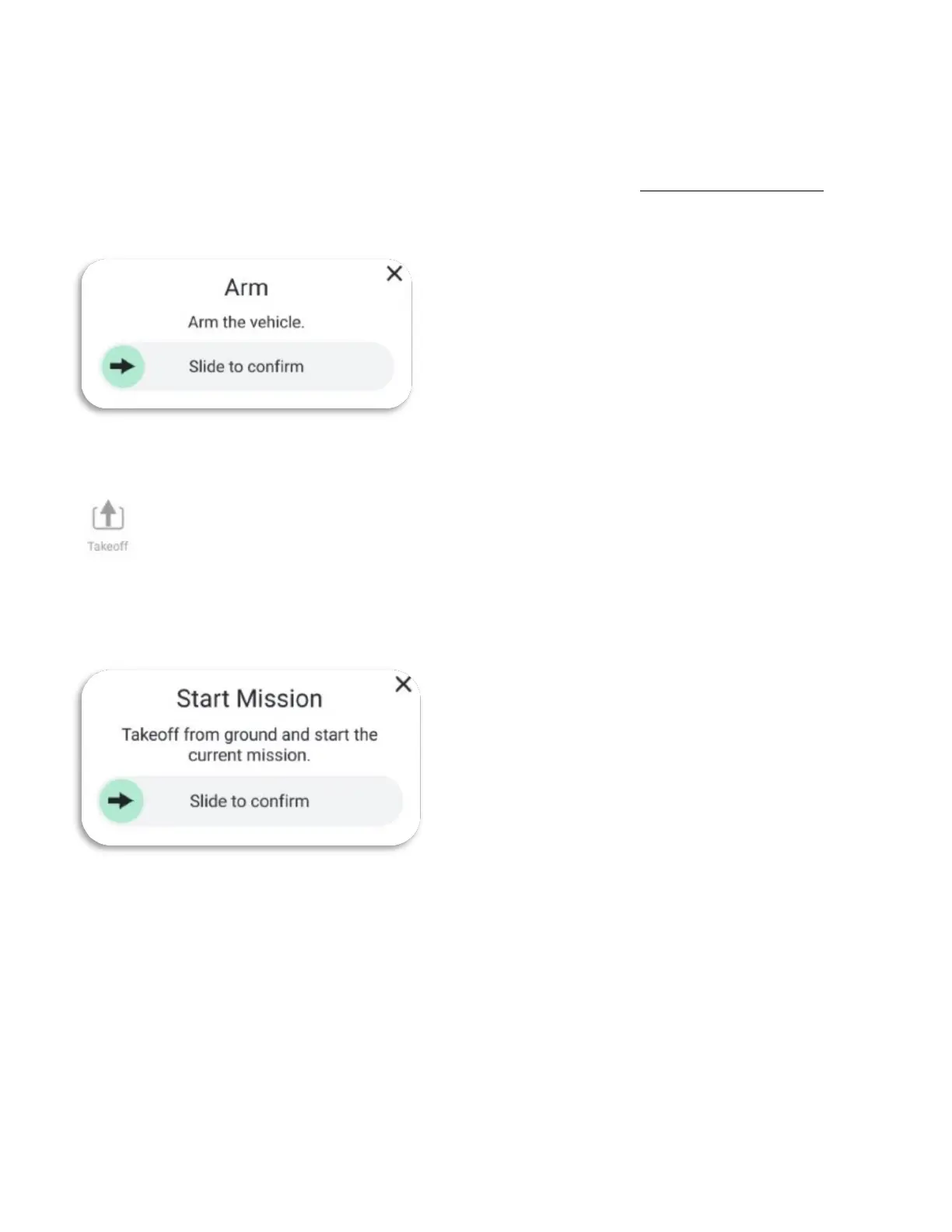

There are two (2) ways to arm the drone: either press
the left top button on the TAC or slide the arrow in the
slide confirmation window.
TAKEOFF
There are multiple ways to initiate takeoff:
Touch the TAKEOFF icon in the Fly Tools box
or slide the arrow in the confirmation
window.
In Mission Mode, slide the arrow to the right to takeoff
and start the mission.
IN-FLIGHT
DEFAULT CONTROLS
Please refer to the TAC CONTROLS OVERVIEW screen
for joystick/button locations.
THROTTLE UP / ASCEND
To ascend, move the left joystick straight up. The
farther the joystick is moved from its centered position,
the faster the drone ascends in its fixed vertical axis.
THROTTLE DOWN / DESCEND
To descend, move the left joystick straight down.
YAW LEFT / CCW
To rotate the drone counterclockwise (CCW) around its
vertical axis, move the left joystick to the left.
YAW RIGHT / CW
To rotate the drone clockwise (CW) around its vertical
axis, move the left joystick to the right.
PITCH FORWARD
To accelerate in a forward direction, move the right
joystick up.
PITCH BACK
To accelerate in a reverse direction, move the right
joystick down.
ROLL LEFT
To roll the vehicle toward the left, move the right
joystick left.
ROLL RIGHT
To roll the vehicle toward the right, move the right
joystick right.
