BATTERY POWER / STATUS BUTTON
Quickly push-and-release (tap) the button to briefly
indicate the pack’s state-of-charge. Press-and-hold for
four (4) seconds to power off and on. The middle LED
in the charge level meter stays lit when the pack is
powered on.
BATTERY LED INDICATORS
The battery pack has a 5-LED bar graph to indicate
state-of-charge and power status indicated in 20%
increments.
Current voltage can be found in the FLY
TOOLS screen by touching the BATTERY
icon.

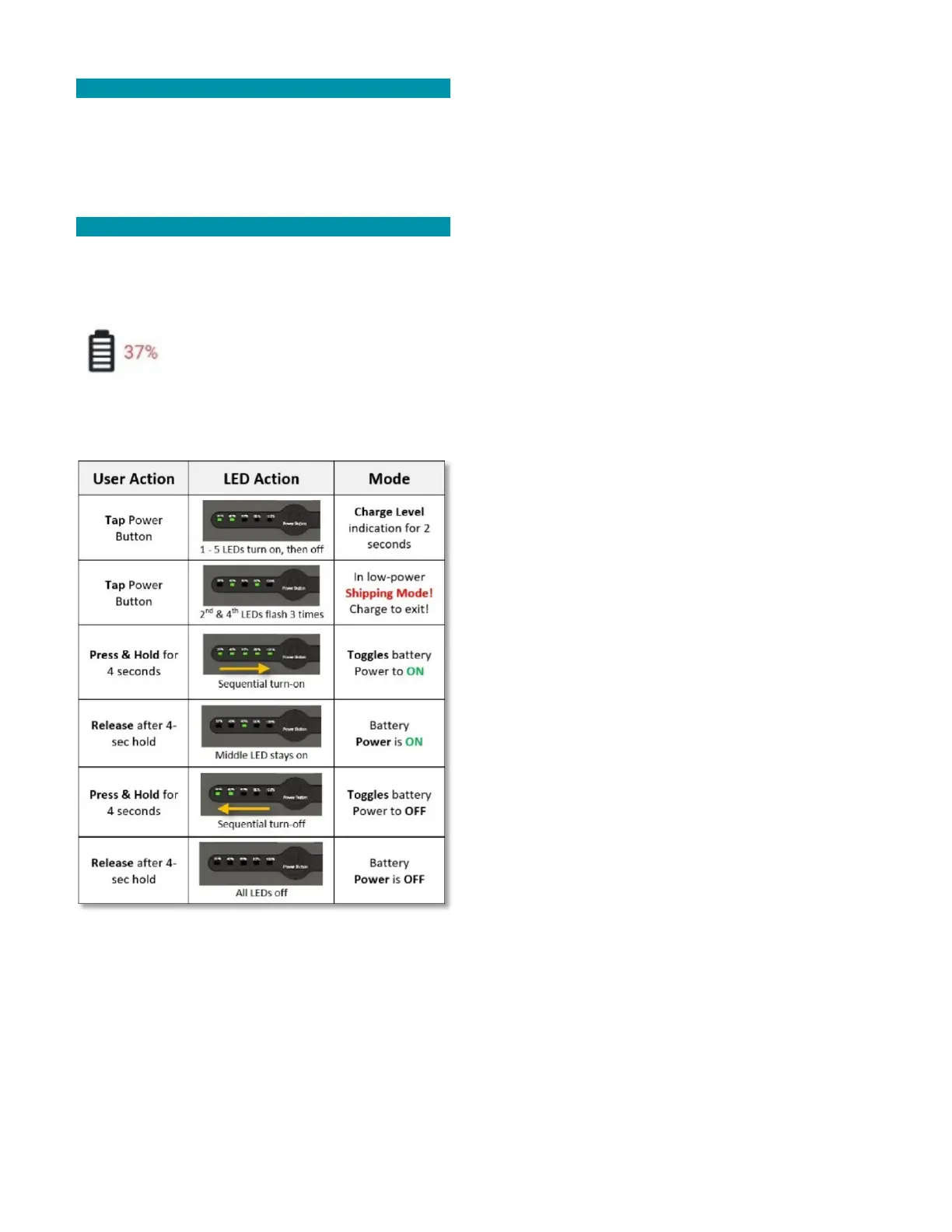

This table summarizes user actions, the
various resulting battery states, and LED indication of
those states.
TEAL BATTERY CHARGER
The Performance Battery Charger is a Teal-proprietary
smart charger system built for charging Teal
Performance Battery Packs. The charger converts the
power supply’s DC output and regulates its voltage and
current output to optimally charge the battery.
The Smart Charge Adapter has an internal cooling fan
that automatically turns on when power is applied to
keep the smart charger electronics operating safely
across the specified operating temperature range.
The battery pack is simply inserted onto the charger via
mating slots in the battery pack, and the side latches
on the battery pack securely lock it into place.
Charger dimensions are: 3.65” L x 3.52” W x 1.80” H
(92.7 mm L x 89.4 mm W x 45.7 mm H). Each charger
weighs 0.35 lbs (158 g).
CHARGER EXTERNAL POWER SUPPLY
The power supply for the Teal Battery Charger is an
external cord-to-cord “brick” style switching power
supply with a universal voltage input. It has a captive
DC power cable and a removeable USA NEMA 5-15P to
IEC 320 C13 AC power cable.
The power supply may be operated from AC voltages
ranging from 100-240 VAC. The removeable AC cord
can be replaced with an appropriate cord for that
particular region.
The supply power unit is a fully sealed enclosure
complying with IP32 environmental rating and operates
in temperatures ranging from 32 °F to 140 °F (0 °C to 60
°C). It is approved to international medical and IT safety
standards. The output power is 120 W, the output
voltage is 25.2 V, and output current is 5.0 A (±5%).
