5
TEAL 2 sUAS OVERVIEW

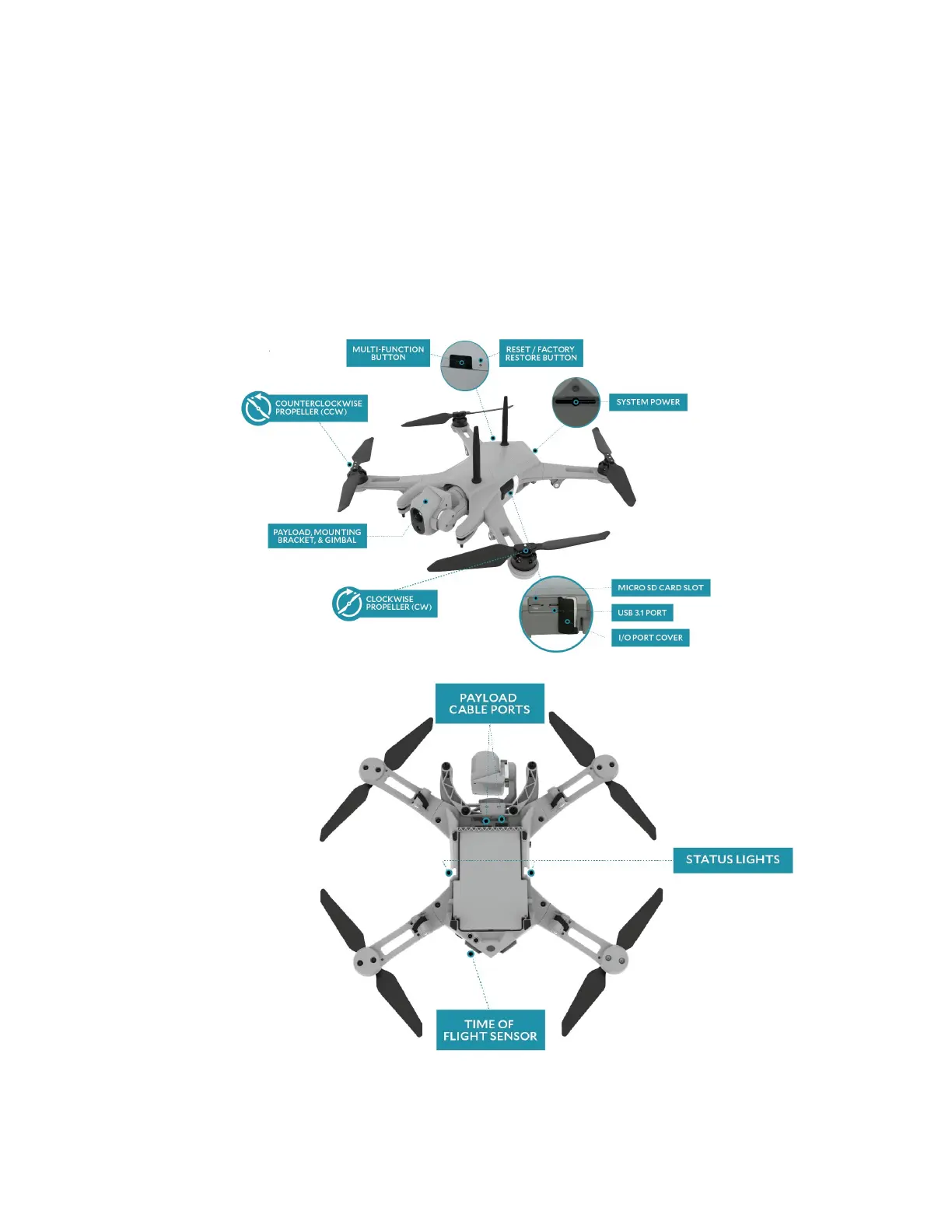

The following diagram illustrates the major components of the Teal 2:
TAC CONTROLS OVERVIEW
The TAC has a mirrored set of left/right buttons, controls, and ports on the front and rear panels and along the narrow
top panel. The left and right-hand sets on the front panel each include a joystick, a 4-position switch, and a momentary
button. The left and right-hand sets on the rear panel each include two momentary buttons. e top panel includes a left
and right-hand momentary button, each protected with a spring-loaded flip-guard door to prevent accidental
actuation. These controls are use-programmable. The out-of-the-box default programmed functions shown here:
