Renesas R8C series User Manual

R8C/1A Group, R8C/1B Group 16. Clock Synchronous Serial Interface
Rev.1.30 Dec 08, 2006 Page 181 of 315
REJ09B0252-0130
16.2.2 SS Shift Register (SSTRSR)
The SSTRSR register is a shift register for transmitting and receiving serial data.
When transmit data is transferred from the SSTDR register to the SSTRSR register and the MLS bit in the
SSMR register is set to 0 (MSB-first), the bit 0 in the SSTDR register is transferred to bit 0 in the SSTRSR
register. When the MLS bit is set to 1 (LSB-first), bit 7 in the SSTDR register is transferred to bit 0 in the
SSTRSR register.
16.2.2.1 Association between Data I/O Pins and SS Shift Register
The connection between the data I/O pins and SSTRSR register (SS shift register) changes according to a
combination of the MSS bit in the SSCRH register and the SSUMS bit in the SSMR2 register. The connection
also changes according to the BIDE bit in the SSMR2 register.
Figure 16.11 shows the Association between Data I/O Pins and SSTRSR Register.

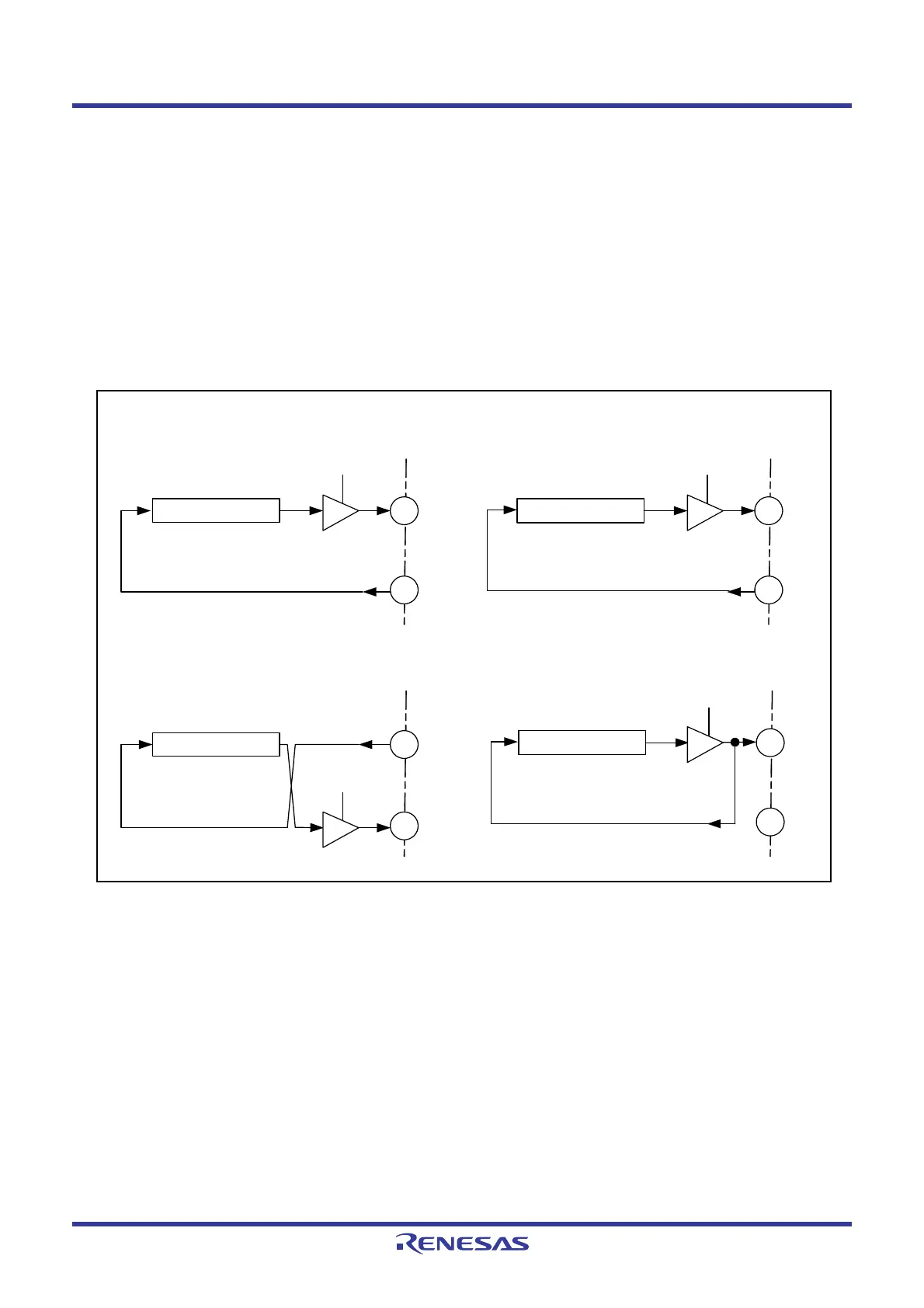

Figure 16.11 Association between Data I/O Pins and SSTRSR Register
SSTRSR register
SSO
SSI
• SSUMS = 0
(clock synchronous communication mode)
SSTRSR register
SSO
SSI
• SSUMS = 1 (4-wire bus communication mode) and
BIDE = 0 (standard mode), and MSS = 0 (operates
as slave device)
SSTRSR register
SSO
SSI
• SSUMS = 1 (4-wire bus communication mode) and
BIDE = 0 (standard mode), and MSS = 1 (operates as
master device)
SSTRSR register
SSO
SSI
• SSUMS = 1 (4-wire bus communication mode) and
BIDE = 1 (bidirectional mode)
