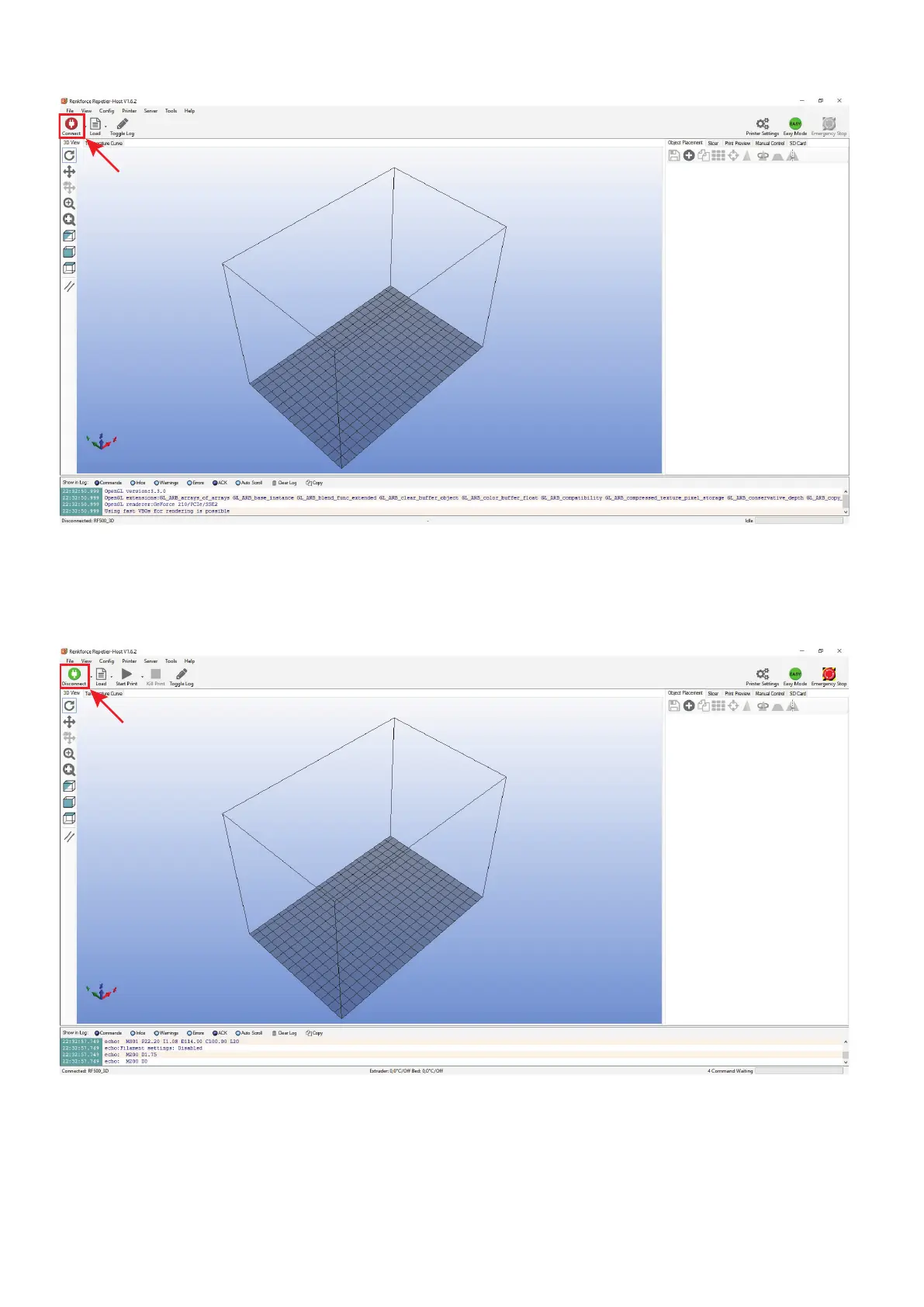

Click "Connect" in the upper left of the main screen of the software.

After a few seconds, the symbol appears in green and the label turns to "Disconnect".

The printer has successfully been connected to the software and only some manual settings can be tested.
