12. Final Work
Thischapter("12.FinalWork")generallyisonlyrelevantforpurchasersofthemakerconstructionkit.Ownersofthepreassembled
device can skip this chapter.

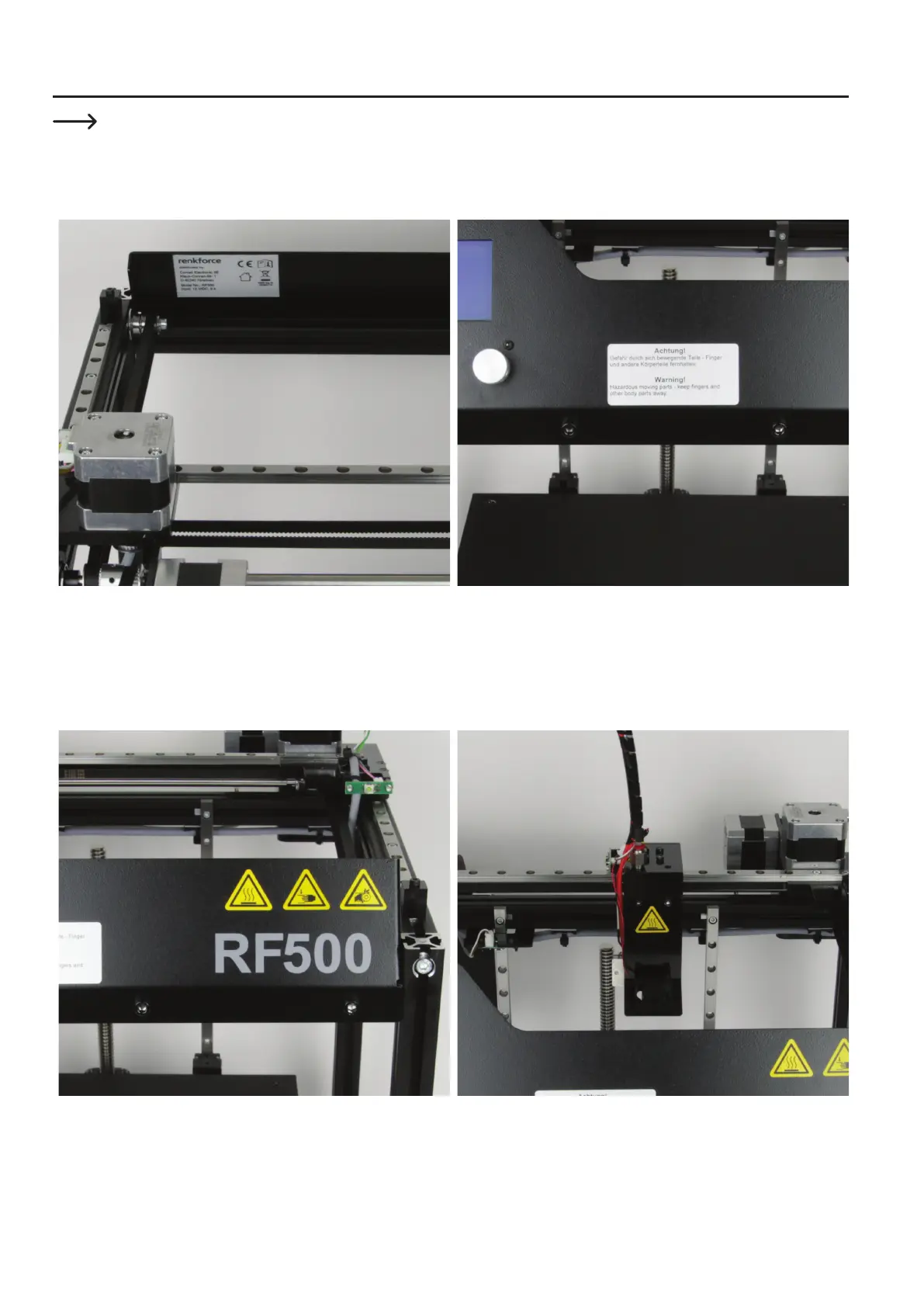

Gluingontheratingplateandwarningsigns
Attach the rating plate to the front cover from behind, as illustrated.
Degreasetheadhesivearearst.
Attach the silver warning text sign well visibly to the middle of the front
cover as illustrated.
Degreasetheadhesivearearst.
Attach the 3 yellow warning sign stickers "Hot surface", "Danger of
hand injury" and "Danger of crushing" well visibly to the front cover
above the "RF500" script.
Degreasetheadhesiveareasrst.
Attach the additional warning sign sticker "Hot surface" to the fan
sheet of the extruder carriage.
Degreasetheadhesivearearstaswell.
