Renkforce RF500 Maker Construction Kit - C) Connection of the Connected Printer

112
c)ConnectionoftheConnectedPrinter

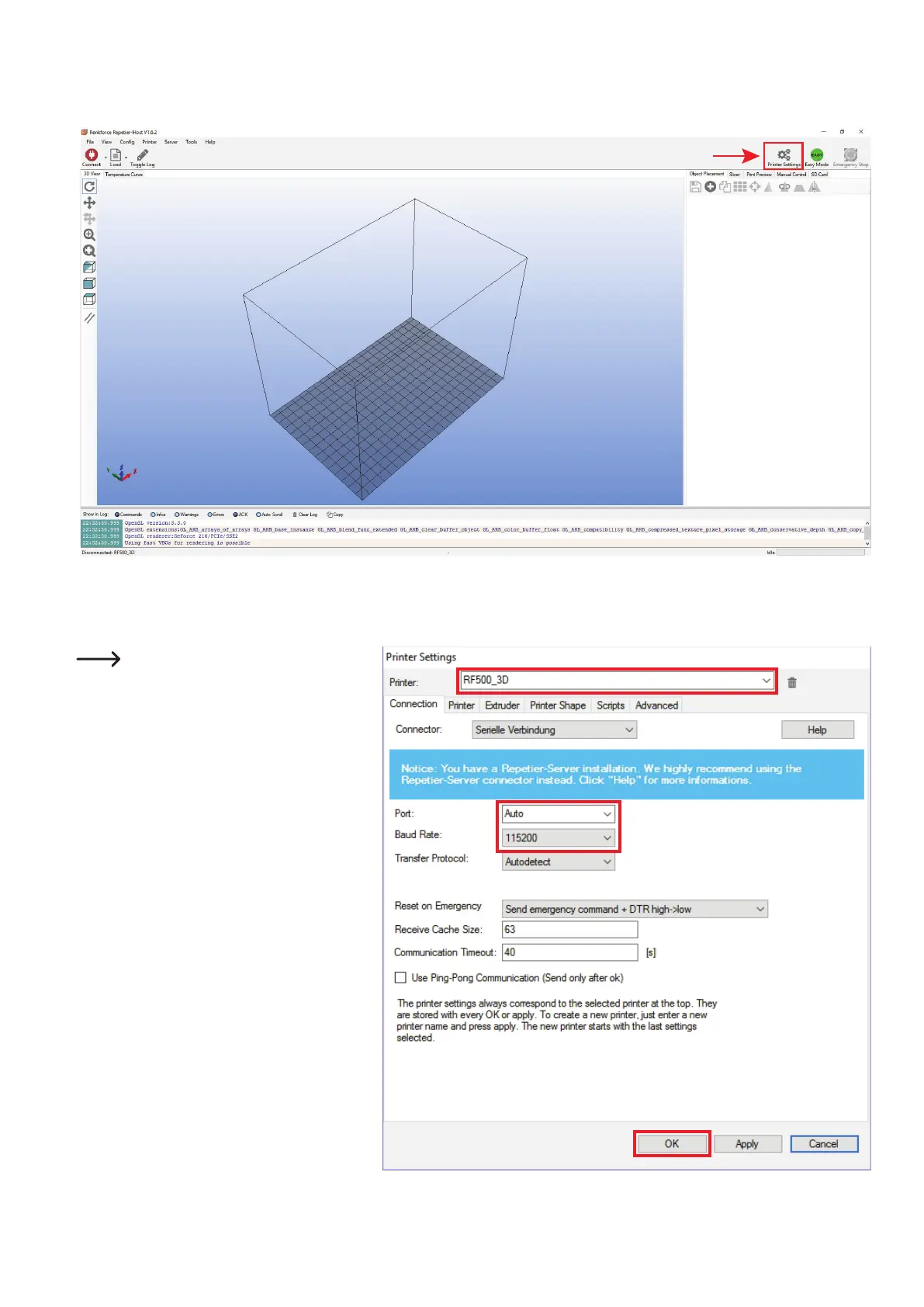

Start the programme Repetier-Host and click on "Printer Settings" at the upper right in the window.
(1) Selecttheprinter"RF500_3D" in the menu above.
(2) Settheportandcheckthebaudrate.Ifyouhaveselectedtherightprinterin(1),thebaudrate(2)isalreadycorrectlypre-setto"115200".
Theportnumber(2)issystem-dependent.
Usually, the setting "Auto" should work
withthecurrentversionofthesoftware(as
of 1.6.2).
If this does not work properly for you, you
can check the port in the device manager
of the control panel, under connections
(COMandLPT).
Then set the COM-port from the device
manager in the software.
(3) Click"OK"(3).
2
3
1
