84

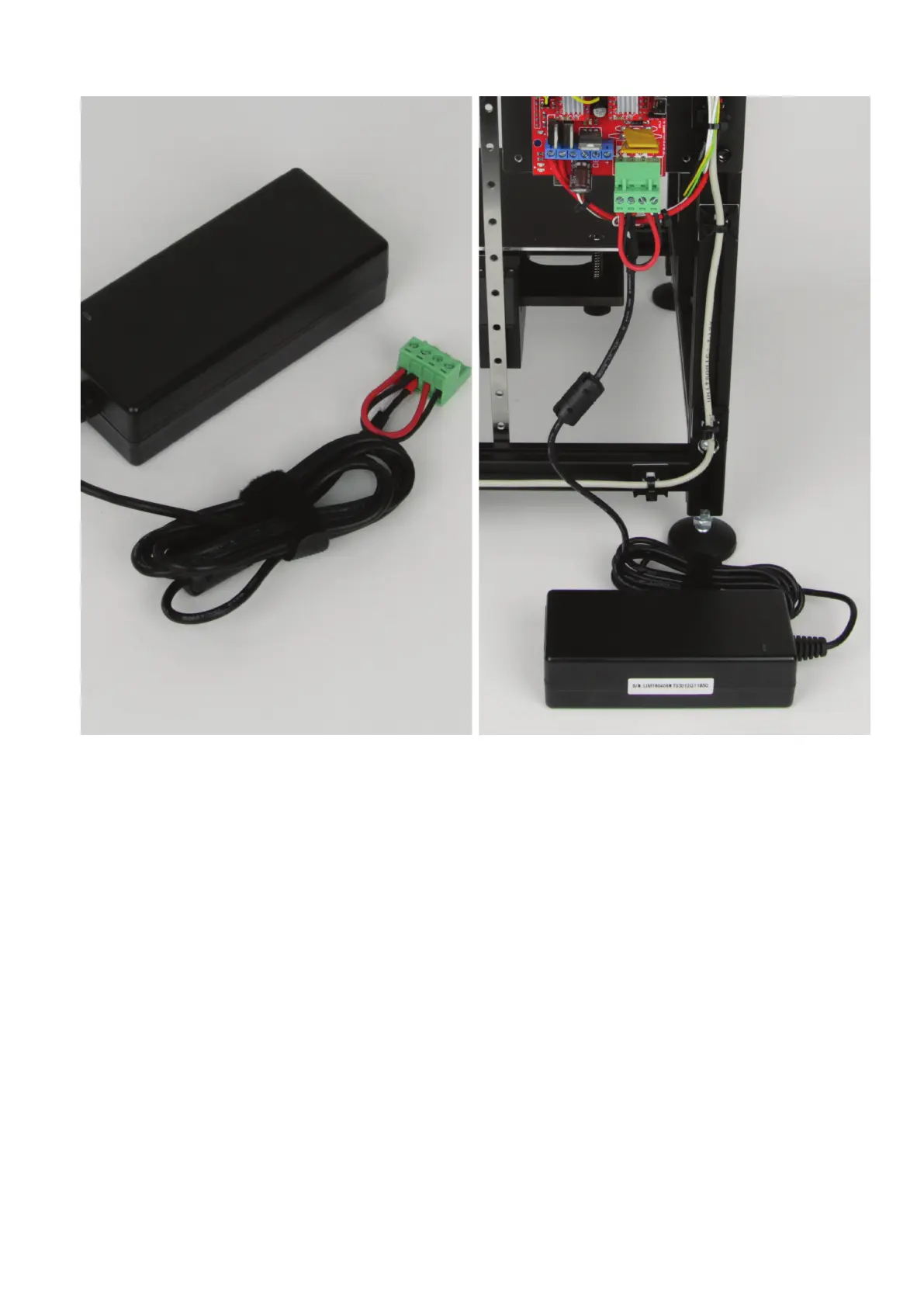

The white line of the mains unit is plus, the black one minus.
Now connect the white line of the mains unit and the red line to the
left terminal of the plug.
The black line from the mains unit and the other black line go into the
terminal to the right of this.
Reconnect the plug with the mains unit to the main PCB.
Of course, you can remove the plug again for further work until com-
missioning.
