Renkforce RF500 Maker Construction Kit - Page 21

21

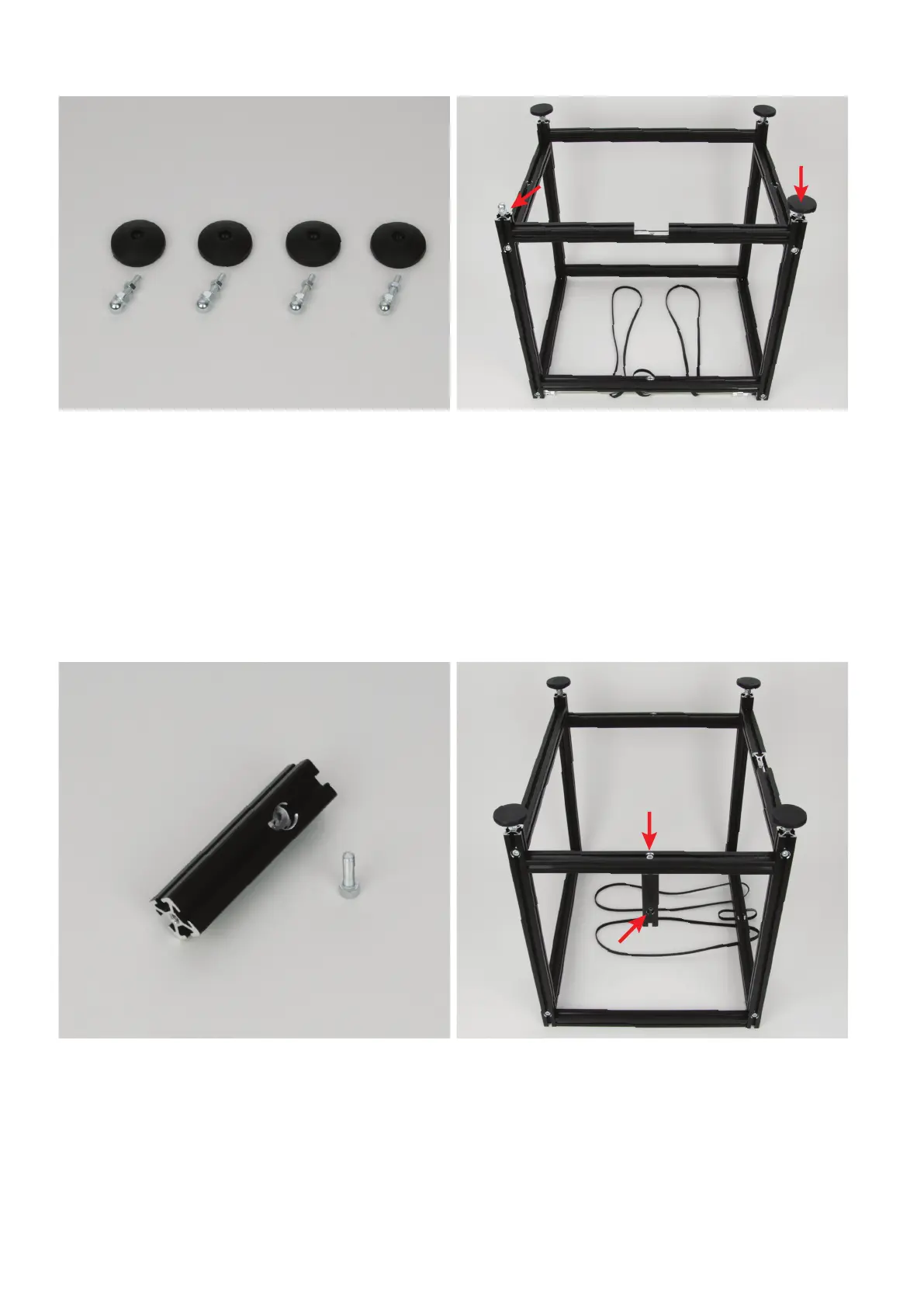

Installingthearticulatedfeet
4x foot
4x ball-head screw Ø40 M5x20 incl. counter-nut
Screw the counter-nut to the stop in all four ball-head screws.
Take the basic frame and put it upside-down. Do not crush the toothed
belts.
Screw one ball-head screw each into the bottom of the vertical alu-
miniumproles(1).Screwthescrewsintothestop.
Pushonefootontoeachballheadwiththeballofyourthumb(2).
Finally, align the feet. Place the basic frame on a level, straight sur-
face. After setting the feet, tighten the counter-nut towards the alu-
miniumprole.
Installingthealuminiumprolesforthelamentholder
1xaluminiumprole86mmwithbore
1x cylinder head screw M5x20
Thealuminiumproleforthelamentholderisattachedfromthefront
viewtothelowercross-proleoftheleftsidepart.
Attach the aluminium prole as illustrated with the cylinder-head
screw(1).
Theprolemustbealignedsothatthemilledsideoftheboreispoint-
inginwards(2).
1
2
1
2
