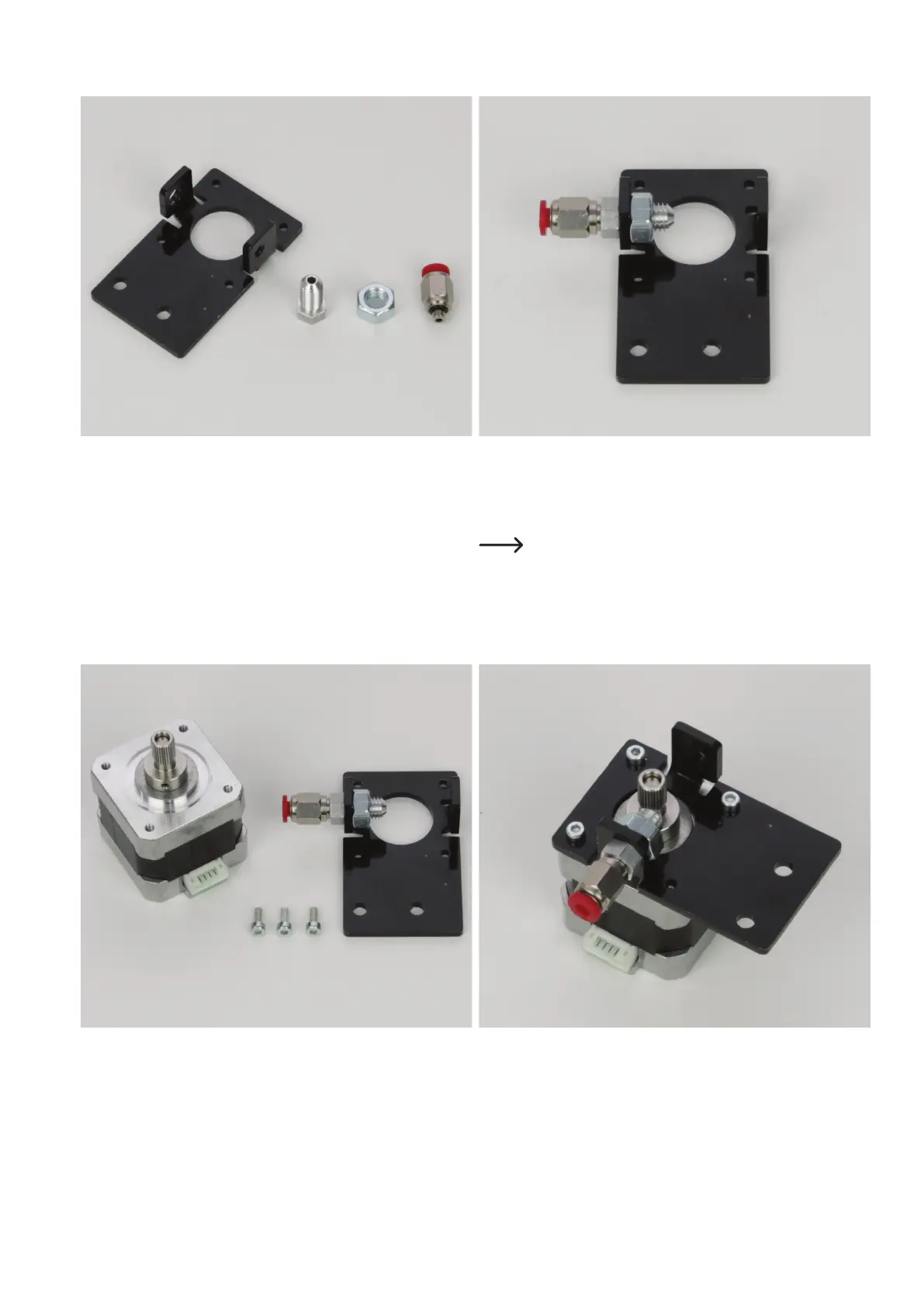

Installthelamentfeed-throughattheextrudermotorholder.
1x extruder motor holder
1x adapter
1x nut M8
1x quick closure
Installtheinletforthelamenttubetotheextrudermotorholderas
illustrated. First push the adapter into the opening from the outside
and attach it with the nut. Tighten the nut with an open-faced spanner.
Thenscrewthequickclosurehand-tightasillustratedinthegure.
Iftheadapterdoesnottthroughtheopening,simplyturn
it into the opening. If necessary, use an external hex key to
help.
Assemblyofthefeedmotor
1xlamentfeedmotor
1x extruder motor holder
3x cylinder head screw M3x8
Install the inlet for the infeed motor to the extruder motor holder with
the3cylinder-headscrewsasillustrated.Theboreontheright(from
the screen view) of the quick-closure must remain free. The connec-
tion plug of the motor must point in the same direction as the quick
closure.
