Renkforce RF500 Maker Construction Kit

To Next Page

To Previous Page

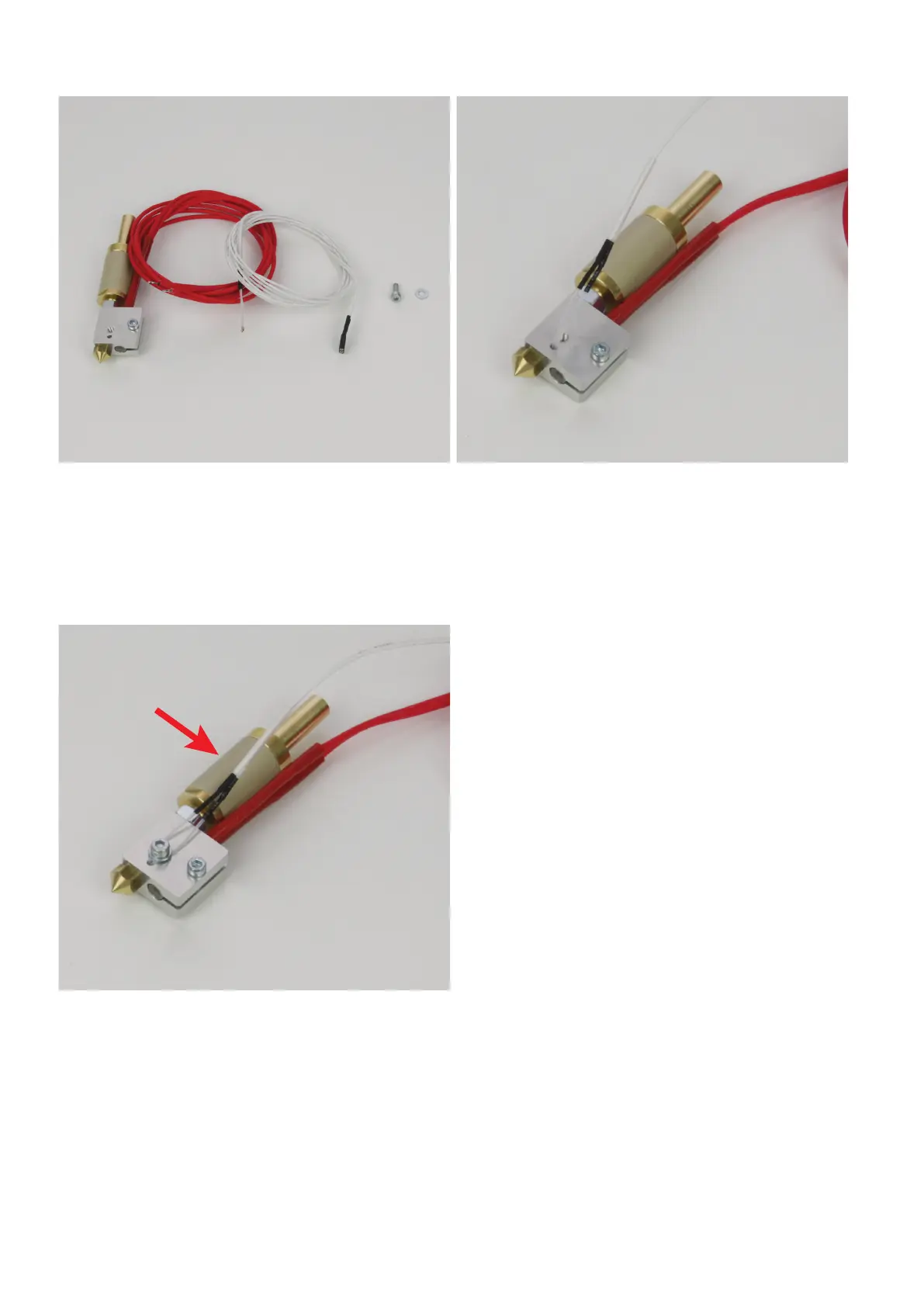

1x extruder

1x temperature sensor

1x cylinder head screw M3x8

1xwasher(diameterinside/outside3.2/7mm)

Push the temperature sensor into the small opening between the noz-

zle and the bore with the thread.

Attention!Thetemperaturesensorisverysensitive!Installation

thereforemustbeperformedwiththeutmostcare!

Attach the sensor with the cylinder-head screw and the washer. The

screw must be turned between the two connection lines for this.

Only tighten the screw slightly so that the connection lines are not

damaged.

Now glue a strip of Kapton adhesive tape centred around the PEEK

partandthecables(arrow),toattachthemtotheextruder.
