Renkforce RF500 Maker Construction Kit

To Next Page

To Previous Page

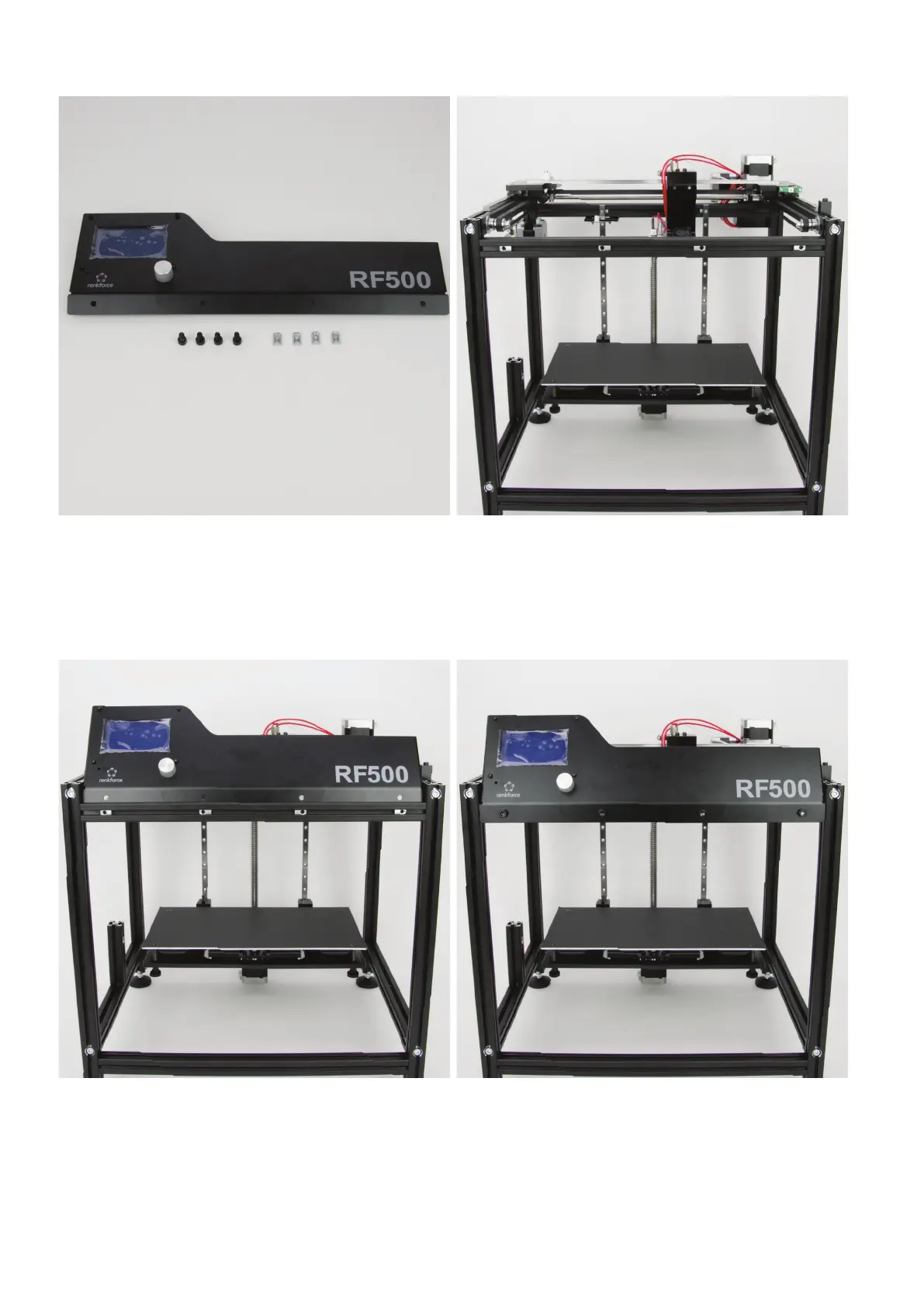

Installationofthedisplayunit

1x display unit

4x cylinder head screw M5x8 black

4x slot nut M5

Insertthe4slotnutsintotheupperaluminiumproleatthefrontof

the printer.

Hold the display unit against the slot nuts from above and align them

with the bores in the display unit.

Attach the display unit to the 4 slot nuts with the M5-cylinder-head

screws.

Tighten all 4 screws.
