3.3.4 Jumbo bottom unwind
The Jumbo unwind is meant for fast production lines with a high output. When the machine
runs with thick and rigid film, the jumbo unwind is a great option.
The Jumbo can handle film reels with a diameter up to 1200mm!. This device will be
delivered with two exchangeable carriages, on each a film reel can be placed, so a reel
change can be carried out very quickly. By using large diameter reels the machine can run
for longer periods before running out of film.
The detailed documentation and functioning of the Jumbo unwinder is placed in chapter 12
of the machine manual.

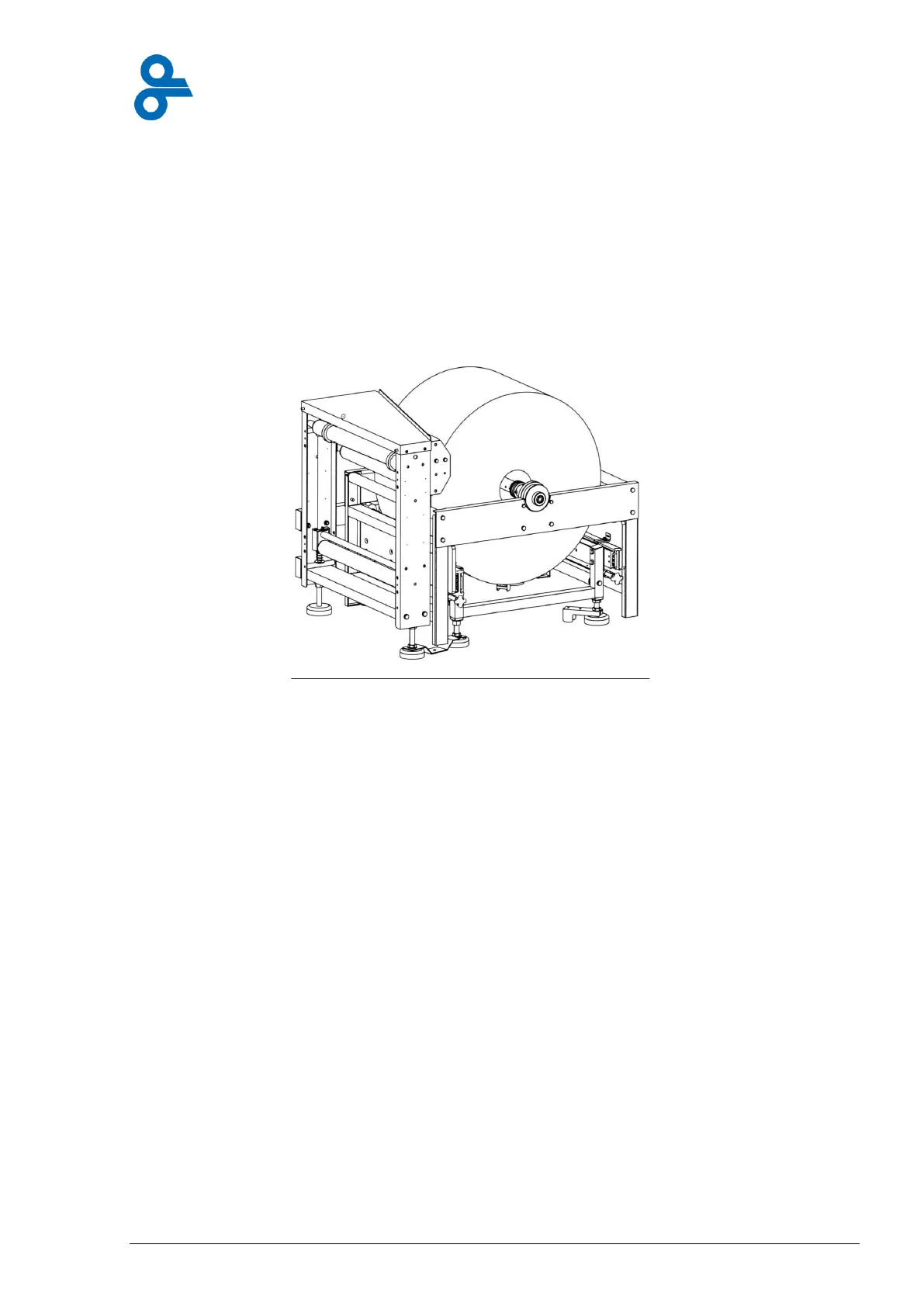

Figure 3.6 Jumbo unwinder
