3.13 Control cabinet
The control cabinet is situated on the side of the machine (see Figure 3.30).
The cabinet contains the operating equipment for the various systems and processes in the
machine. The control cabinet has connections for compressed air, electricity, water and gas
(see Figure 3.31). Make sure that the cables connected to the control cabinet are so arranged
that no-one can trip over them. The control cabinet has a control panel that is discussed in
Chapter 4. The entire machine can be run from this panel.

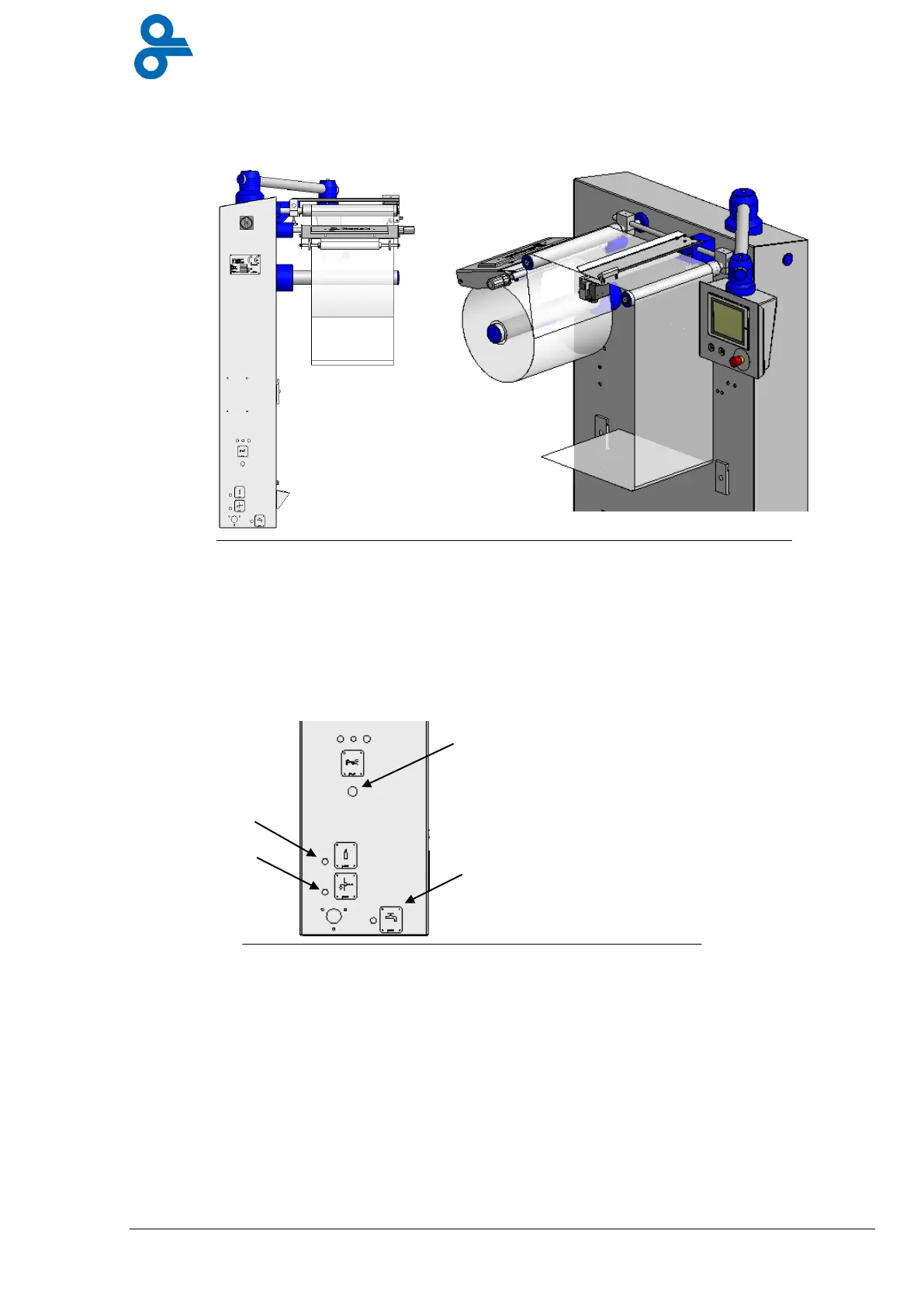

Figure 3.30 Control cabinet
A. Gas connection
B. Water drain
C. Pressed air
D. Water-cooling
in
