79
4.4.3 Options 1

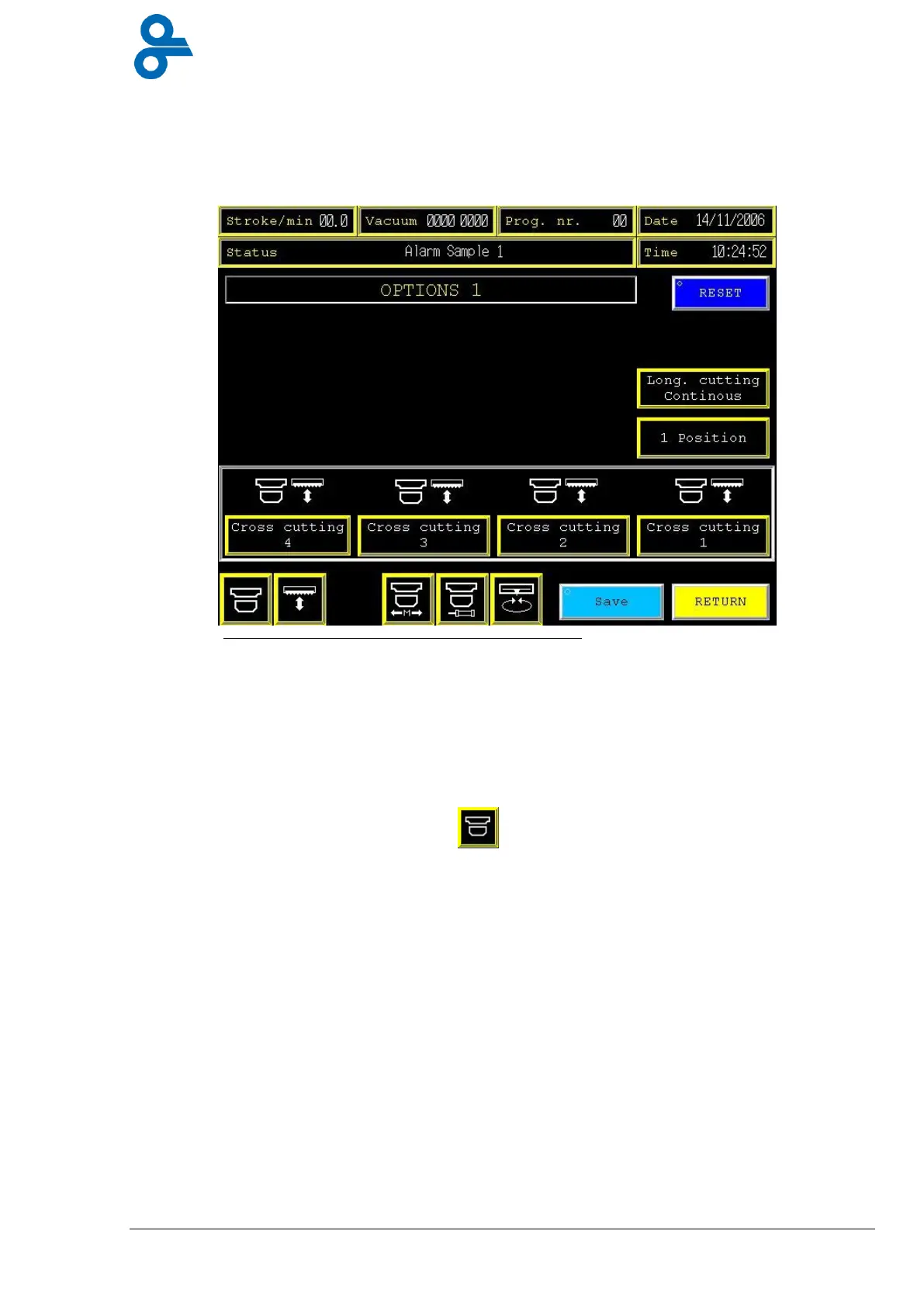

This menu is accessed by pressing the ‘OPTIONS 1’ button in the main menu
(see Figure 4.22)
The option menu is divided in two pages, “Options 1” and “Options 2”.
Here all availible cutting options can be selected,
1 Position = To be able to cut on position with the crosscut positioned with
pneumatic activated cylinder.
Long cutting continuous = Rotary knife blades will turn continuously or only during
transport.
Cross cutting 1; 2; 3 & 4 = The selected cross cutting(s) will be active during production, if
button in operator menu is activated.
To Next Page
