130
6.3.3 Hard foil stamp
Preparatory activities
Before carrying our maintenance work, check the hard foil stamp for damage, contamination and
corrosion. Remove any film and / or product residue. If applicable, use the key switch for safe operation of
the hard foil syamp. Read the instructions for more information on the key switch. If in doubt, consult the
distributor.
Hard foil stamp

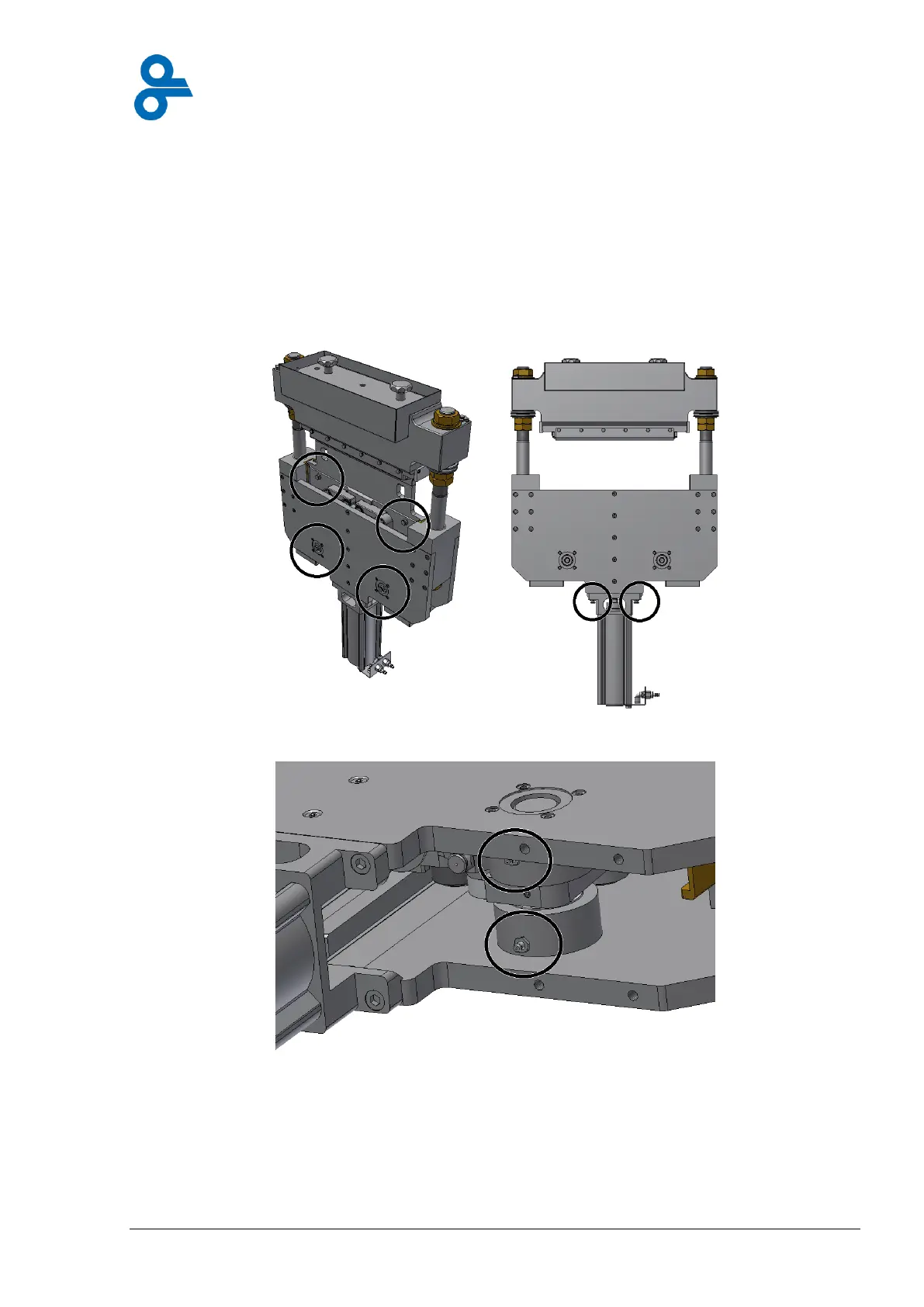

The hard foil stamp has ten lubricating nipples. The following figures show where the the lubricating
nipples are located.
Figure 8 Stamp lubrication points
Figure 9 Bearing bush lubrication points
