How Does the SmartMonitor 2 Work?
12
Electrical Ratings
Model 4009 power cord/battery charger: 120VAC 60Hz 7.2W
Model 4011 power cord/battery charger: 230VAC 50Hz 7.2W
SmartMonitor 2: 10.5-11.5VDC 0.1-1A
Model 418 Ni-MH Rechargeable Battery Pack: 6VDC 1.85Ah or greater
Environmental Conditions
Operating Temperature: 5ºC to 45ºC
Operating Humidity: 20%RH to 95%RH, non-condensing
Storage Temperature: -20ºC to +65ºC
Storage Humidity: 10%RH to 95%RH, non-condensing
Battery Charging Temperature: 10ºC to 35ºC
IEC Classification
The SmartMonitor 2 is classified as:
Class II/Internally Powered
Type BF Applied Part
Ordinary Protection against the ingress of liquids
Not suitable for use in the presence of a flammable anesthetic mixture with air or with nitrous oxide
Continuous Operation

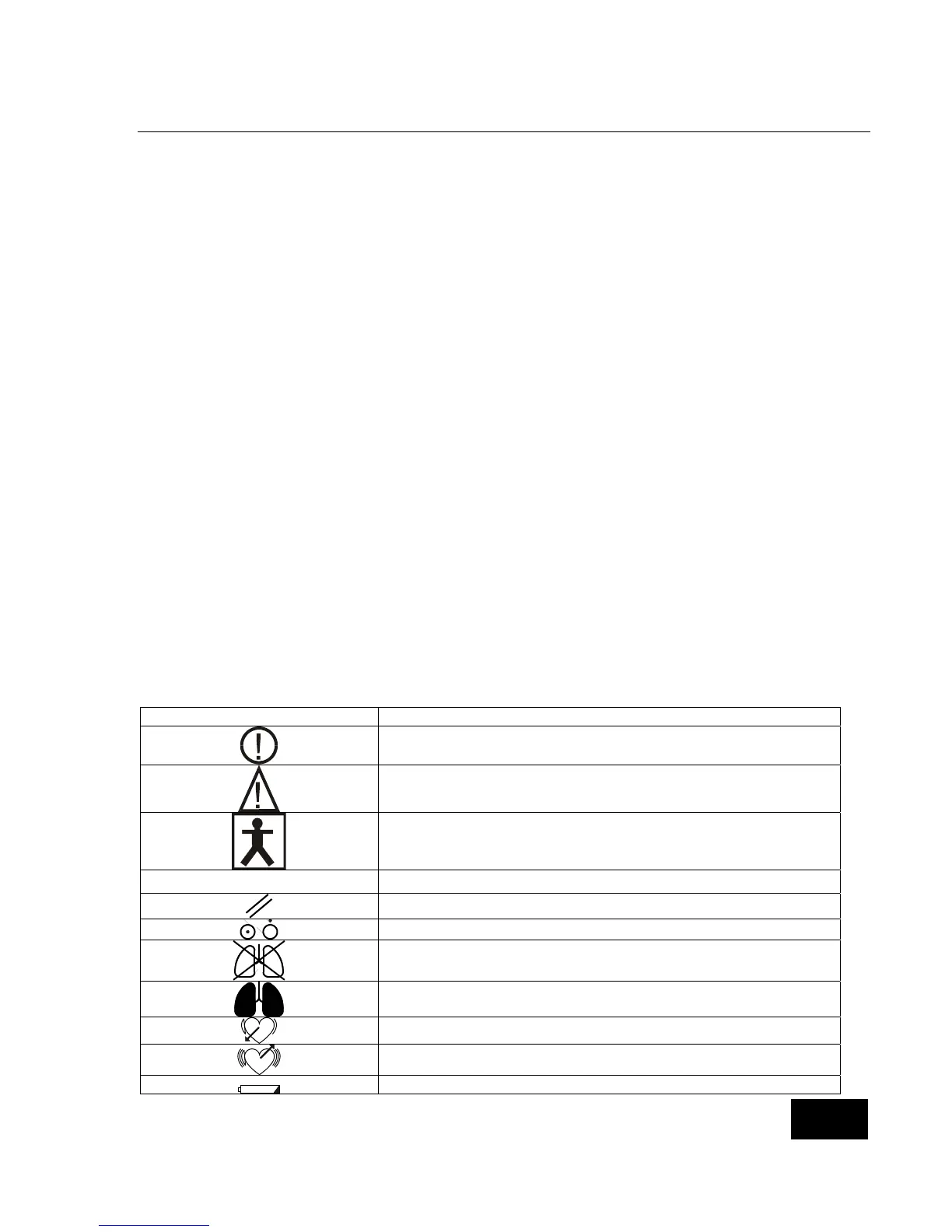

Symbols Table
Symbol Definition
Attention: Important information that should be read
Attention: Read accompanying documents
Type BF Applied Part also shows Patient Cable Connector
location
IOIOI
Serial Port
Reset Button
Power Off/On Button
Apnea Alarm Light
Respiration Light
Low Heart Rate Alarm Light
High Heart Rate Alarm Light
Low Battery Light
