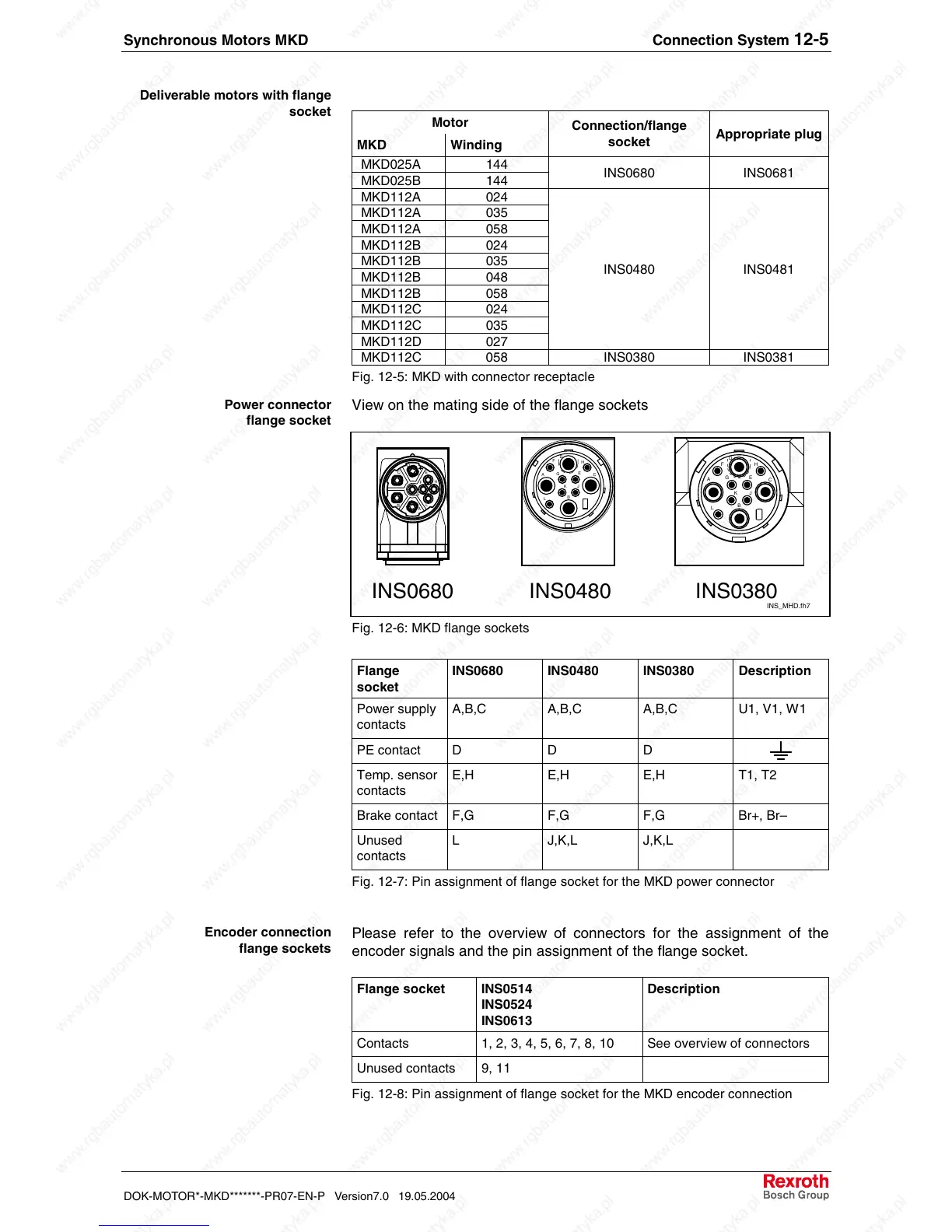

Synchronous Motors MKD Connection System 12-5
DOK-MOTOR*-MKD*******-PR07-EN-P Version7.0 19.05.2004
Motor
MKD Winding
Connection/flange
socket
Appropriate plug
MKD025A 144
MKD025B 144
INS0680 INS0681
MKD112A 024
MKD112A 035
MKD112A 058
MKD112B 024
MKD112B 035
MKD112B 048
MKD112B 058
MKD112C 024
MKD112C 035
MKD112D 027
INS0480 INS0481
MKD112C 058 INS0380 INS0381
Fig. 12-5: MKD with connector receptacle
View on the mating side of the flange sockets
A
B
C
G
F
H
E
D
J
K
L
A
B
C
G
F
H
E
D
J
K
L
INS0380INS0680 INS0480
A
B
C
G
F
H
E
D
L
INS_MHD.fh7
Fig. 12-6: MKD flange sockets
Flange
socket
INS0680 INS0480 INS0380 Description
Power supply
contacts
A,B,C A,B,C A,B,C U1, V1, W1
PE contact D D D
Temp. sensor
contacts
E,H E,H E,H T1, T2
Brake contact F,G F,G F,G Br+, Br–
Unused
contacts
L J,K,L J,K,L
Fig. 12-7: Pin assignment of flange socket for the MKD power connector
Please refer to the overview of connectors for the assignment of the
encoder signals and the pin assignment of the flange socket.
Flange socket INS0514
INS0524
INS0613
Description
Contacts 1, 2, 3, 4, 5, 6, 7, 8, 10 See overview of connectors
Unused contacts 9, 11
Fig. 12-8: Pin assignment of flange socket for the MKD encoder connection
Deliverable motors with flange
socket
Power connector
flange socket
Encoder connection
flange sockets
