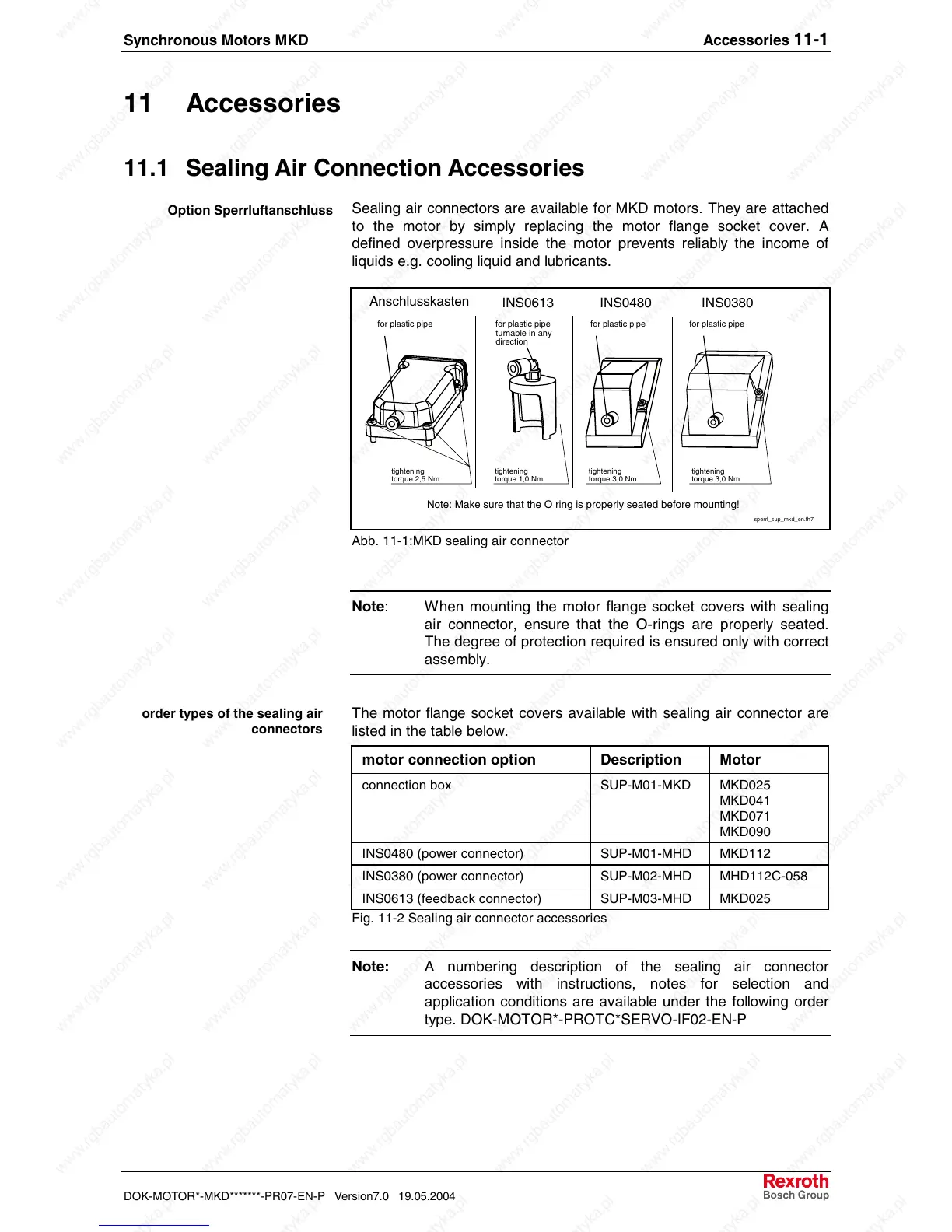

Synchronous Motors MKD Accessories 11-1
DOK-MOTOR*-MKD*******-PR07-EN-P Version7.0 19.05.2004
11 Accessories
11.1 Sealing Air Connection Accessories
Sealing air connectors are available for MKD motors. They are attached
to the motor by simply replacing the motor flange socket cover. A
defined overpressure inside the motor prevents reliably the income of
liquids e.g. cooling liquid and lubricants.
turnable in any
direction
INS0613 INS0480 INS0380
Note: Make sure that the O ring is properly seated before mounting!
sperrl_sup_mkd_en.fh7
tightening
torque 2,5 Nm
Anschlusskasten
for plastic pipe for plastic pipefor plastic pipefor plastic pipe
tightening
torque 1,0 Nm
tightening
torque 3,0 Nm
tightening
torque 3,0 Nm
Abb. 11-1:MKD sealing air connector
Note: When mounting the motor flange socket covers with sealing
air connector, ensure that the O-rings are properly seated.
The degree of protection required is ensured only with correct
assembly.
The motor flange socket covers available with sealing air connector are
listed in the table below.
motor connection option Description Motor
connection box SUP-M01-MKD MKD025
MKD041
MKD071
MKD090
INS0480 (power connector) SUP-M01-MHD MKD112
INS0380 (power connector) SUP-M02-MHD MHD112C-058
INS0613 (feedback connector) SUP-M03-MHD MKD025
Fig. 11-2 Sealing air connector accessories
Note: A numbering description of the sealing air connector
accessories with instructions, notes for selection and
application conditions are available under the following order
type. DOK-MOTOR*-PROTC*SERVO-IF02-EN-P
Option Sperrluftanschluss
order types of the sealing air
connectors
