Synchronous Motors MKD Appendix 17-3
DOK-MOTOR*-MKD*******-PR07-EN-P Version7.0 19.05.2004

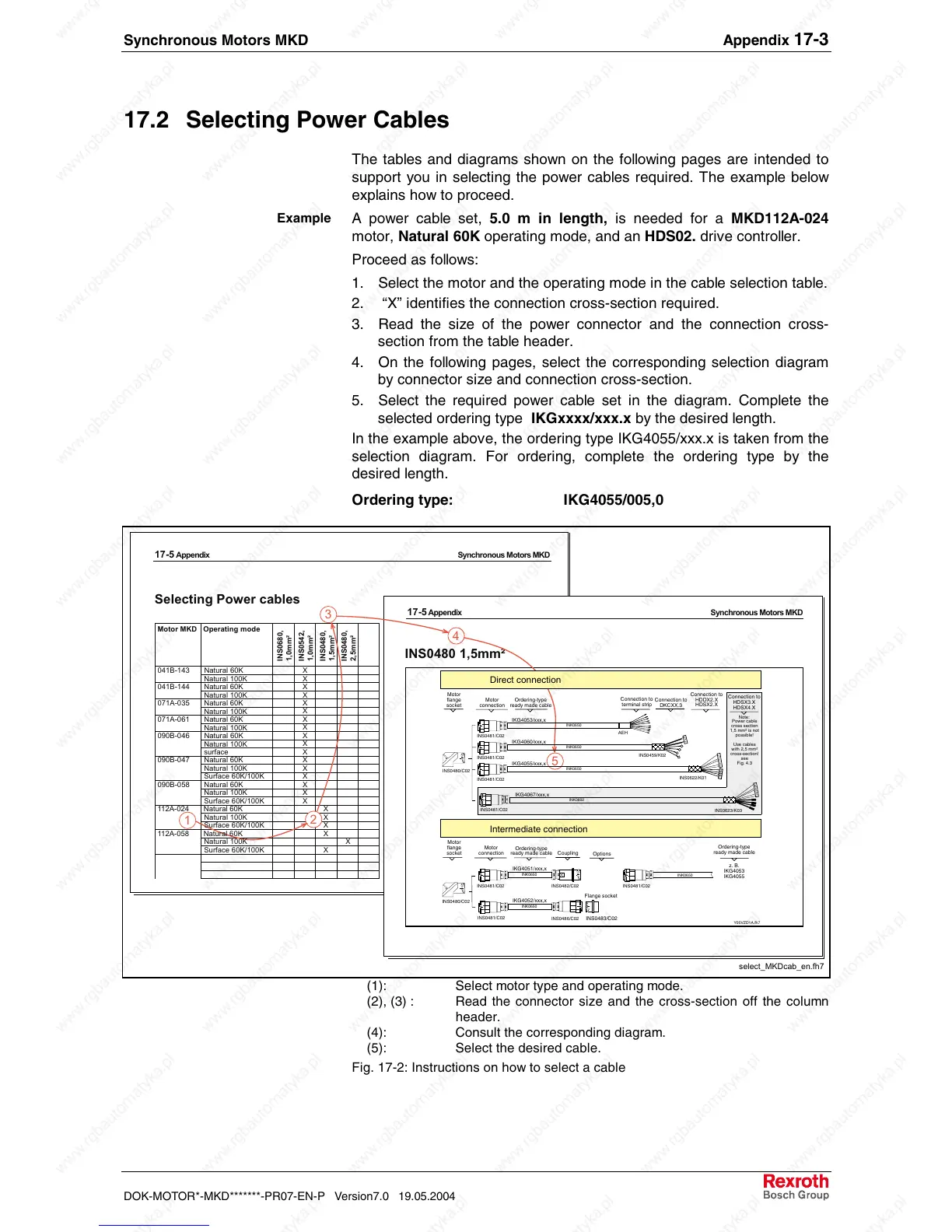

17.2 Selecting Power Cables
The tables and diagrams shown on the following pages are intended to
support you in selecting the power cables required. The example below
explains how to proceed.
A power cable set, 5.0 m in length, is needed for a MKD112A-024
motor, Natural 60K operating mode, and an HDS02. drive controller.
Proceed as follows:
1. Select the motor and the operating mode in the cable selection table.
2. X identifies the connection cross-section required.
3. Read the size of the power connector and the connection cross-
section from the table header.
4. On the following pages, select the corresponding selection diagram
by connector size and connection cross-section.
5. Select the required power cable set in the diagram. Complete the
selected ordering type IKGxxxx/xxx.x by the desired length.
In the example above, the ordering type IKG4055/xxx.x is taken from the
selection diagram. For ordering, complete the ordering type by the
desired length.
Ordering type: IKG4055/005,0
17-5 Appendix Synchronous Motors MKD
Selecting Power cables
Motor MKD Operating mode
INS0680,
1,0mm²
INS0542,
1,0mm²
INS0480,
1,5mm²
INS0480,
2,5mm²
041B-143 Natural 60K
Natural 100K
041B-144 Natural 60K
Natural 100K
071A-035 Natural 60K
Natural 100K
071A-061 Natural 60K
Natural 100K
090B-046 Natural 60K
Natural 100K
surface
090B-047 Natural 60K
Natural 100K
Surface 60K/100K
090B-058 Natural 60K
Natural 100K
Surface 60K/100K
Connection to
HDSX3.X
HDSX4.X
Note:
Power cable
cross section
1,5 mm² is not
possible!
Use cables
with 2,5 mm²
cross-section!
see
Fig. 4.3
17-5
INS0480 1,5mm²
1
2
3
4
5
select_MKDcab_en.fh7
Appendix Synchronous Motors MKD
112A-024 Natural 60K
Natural 100K
Surface 60K/100K
112A-058 Natural 60K
Natural 100K
Surface 60K/100K
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Motor
flange
socket
Motor
connection
Connection to
HDDX2.X
HDSX2.X
INK0650
IKG4055/xxx,x
INS0481/C02
Connection to
DKCXX.3
INK0650
IKG4060/xxx,x
INS0481/C02
INS0622/K01
4
3
2
1
7
6
5
4
3
2
1
INS0459/K02
4
3
2
1
INK0650
IKG4053/xxx,x
INS0481/C02
Connection to
terminal strip
Y05VZD1A.fh7
z. B.
IKG4053
IKG4055
Direct connection
Intermediate connection
INS0481/C02
INK0650
Flange socket
INS0483/C02
INS0481/C02
INK0650
IKG4051/xxx,x
INS0482/C02
INK0650
IKG4052/xxx,x
INS0486/C02
Coupling
INS0480/C02
INS0481/C02
INS0480/C02
Motor
flange
socket
Motor
connection
Ordering-type
ready made cable
AEH
Options
IKG4067/xxx,x
INS0481/C02
INS0623/K03
INK0602
7
6
5
4
3
2
1
Ordering-type
ready made cable
Ordering-type
ready made cable
(1): Select motor type and operating mode.
(2), (3) : Read the connector size and the cross-section off the column
header.
(4): Consult the corresponding diagram.
(5): Select the desired cable.
Fig. 17-2: Instructions on how to select a cable
