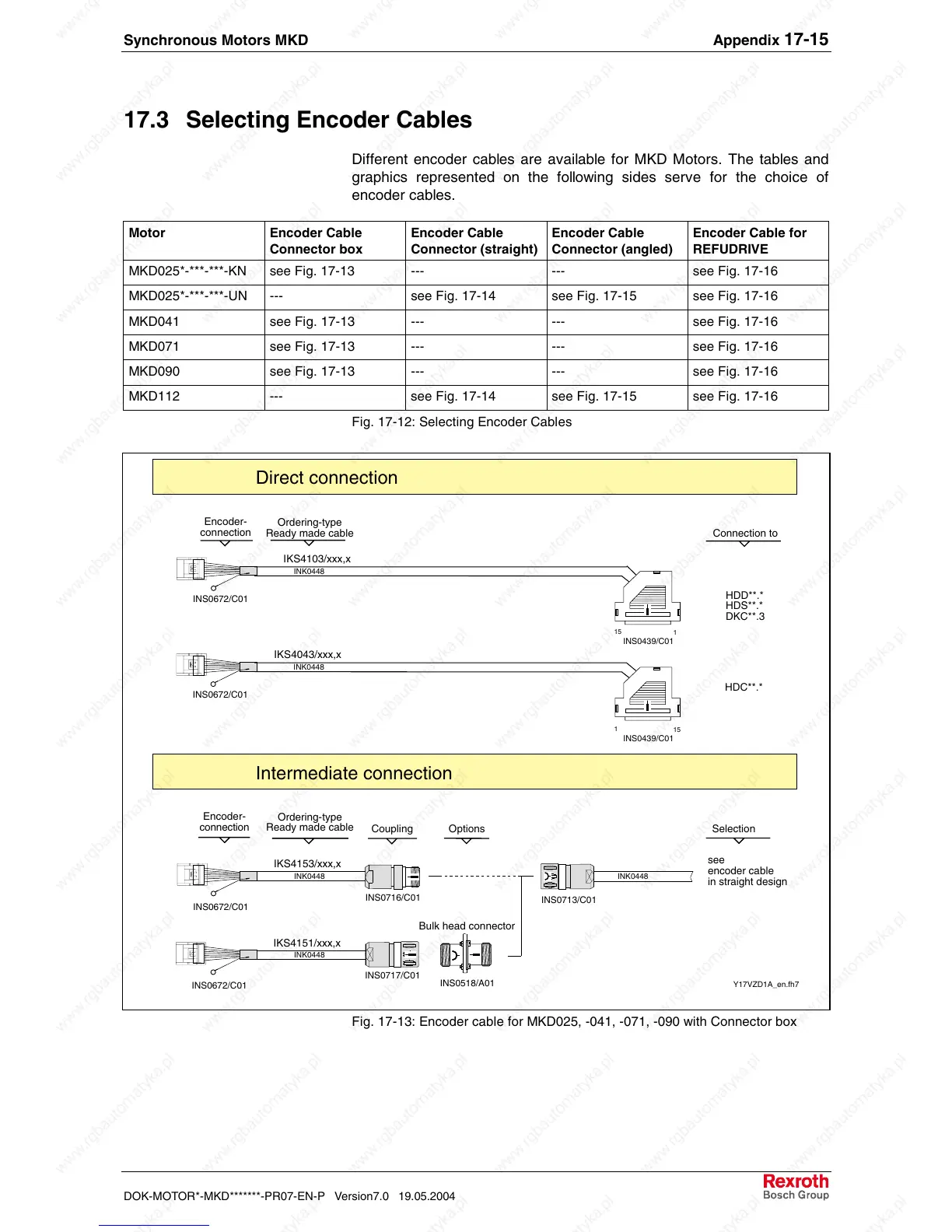

17.3 Selecting Encoder Cables
Different encoder cables are available for MKD Motors. The tables and
graphics represented on the following sides serve for the choice of
encoder cables.
Motor Encoder Cable
Connector box
Encoder Cable
Connector (straight)
Encoder Cable
Connector (angled)
Encoder Cable for
REFUDRIVE
MKD025*-***-***-KN see Fig. 17-13 --- --- see Fig. 17-16
MKD025*-***-***-UN --- see Fig. 17-14 see Fig. 17-15 see Fig. 17-16
MKD041 see Fig. 17-13 --- --- see Fig. 17-16
MKD071 see Fig. 17-13 --- --- see Fig. 17-16
MKD090 see Fig. 17-13 --- --- see Fig. 17-16
MKD112 --- see Fig. 17-14 see Fig. 17-15 see Fig. 17-16
Fig. 17-12: Selecting Encoder Cables
Encoder-
connection
HDD**.*
HDS**.*
DKC**.3
INK0448
IKS4103/xxx,x
Direct connection
Intermediate connection
INK0448
INS0518/A01
INK0448
IKS4153/xxx,x
INK0448
IKS4151/xxx,x
Bulk head connector
INS0716/C01
INS0713/C01
INS0672/C01
INS0672/C01
INS0672/C01
Y17VZD1A_en.fh7
Coupling
Ordering-type
Ready made cable
Selection
Ordering-type
Ready made cable
Encoder-
connection
see
encoder cable
in straight design
Options
INK0448
IKS4043/xxx,x
INS0672/C01
1
15
INS0439/C01
HDC**.*
15
1
INS0439/C01
INS0717/C01
Connection to
Fig. 17-13: Encoder cable for MKD025, -041, -071, -090 with Connector box
