Synchronous Motors MKD MKD112 10-9
DOK-MOTOR*-MKD*******-PR07-EN-P Version7.0 19.05.2004
Holding Brake
Description Symbol Unit Holding brake 1 Holding brake 2 Holding brake 3
Motortype MKD112A
MKD112B
MKD112C
MKD112D
Holding torque M
4
Nm 22,0 32,0 70,0
Rated voltage U
N
V
DC 24 ± 10% DC 24 ± 10% DC 24 ± 10%
Rated current I
N
A 0,71 0,93 1,29
Moment ot inertia J
B
Kgm² 3,6 x 10
-4
12,42 x 10
-4
30 x 10
-4
Clamping delay t
1
ms 25 15 53
Relase delay t
2
ms 50 115 97
Mass m
B
kg 1,1 2,4 3,8

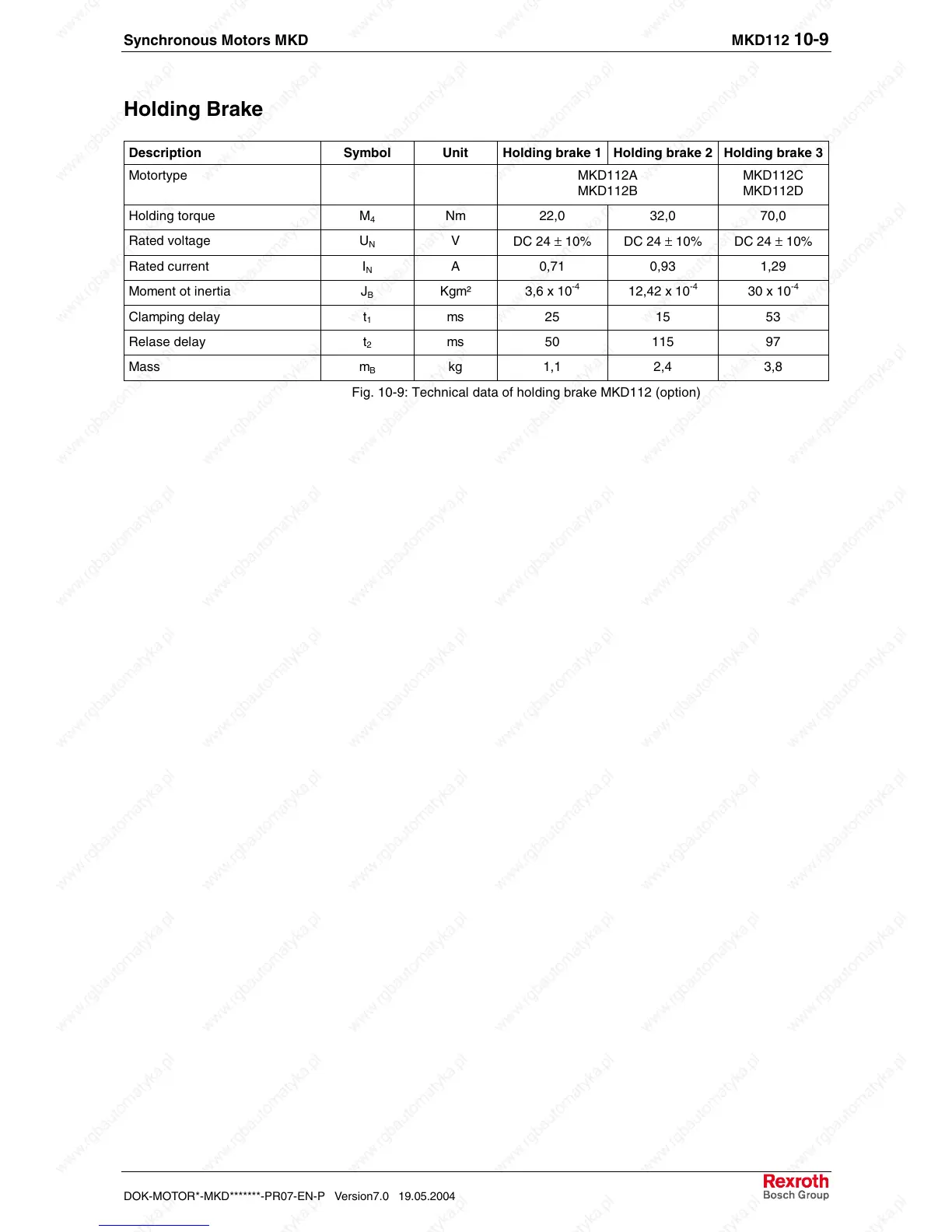

Fig. 10-9: Technical data of holding brake MKD112 (option)
