Synchronous Motors MKD MKD071 8-5
DOK-MOTOR*-MKD*******-PR07-EN-P Version7.0 19.05.2004
8.2 Type code – Ordering Name
1234 6789
1
05 1234 6789
2
05 1234 6789
3
05 1234 6789
4
05
Example:
Abbrev.
Column
MKD071B-061 -GG0-KN
1. Product
1.1 MKD . . . . . . . . . = MKD
2. Motor size
2.1 071 . . . . . . . . . . . . . . . . . = 071
3. Motor length
3.1 Length. . . . . . . . . . . . . . . . . . . . . = B
4. Windings code
4.1 MKD071B. . . . . . . . . . . . . . = 024, 035, 061
5. Motor encoder
5.1 Resolver feedback . . . . . . . . . . . . . . . . . . . . . . . = G
5.2 Resolver feedback with integrated
multiturn absolute encoder. . . . . . . . . . . . . . . . . = K
6. Driven shaft
6.1 plain shaft (with shaft sealing ring) . . . . . . . . . . . . . = G
6.2 Shaft with key per DIN 6885-1
(with shaft sealing ring) . . . . . . . . . . . . . . . . . . . . . = P
7. Holding brake
7.1 without holding brake . . . . . . . . . . . . . . . . . . . . . . . . = 0
7.2 Holding brake 5 Nm . . . . . . . . . . . . . . . . . . . . . . . . . . = 1
7.3 Holding brake 10 Nm . . . . . . . . . . . . . . . . . . . . . . . . . = 3
8. Output direction of power connection
8.1 Junction box (delivering: to side B) . . . . . . . . . . . . . . . . . . . = K
9. Housing design
9.1 standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = N
9.2 Ex type for cluster II, category 3, G and D on DIN EN 50021 = S
10. Standard reference
Standard Title Edition
DIN 6885-1 Drive Type with Fastenings without Taper Action; 1968-08
Parallel Keys, Keyways, Deep Pattern
DIN EN 50021 Electrical apparatus for potentially explosive atmospheres, 2000-02
Type of protection "n"
Note:
Looking from front onto driven shaft (see picture 1)
Illustration example: MKD071
1
1
Picture 1
side B
Position of power connection = top
INN-41-65-T07-01-M09-MKD.EPS

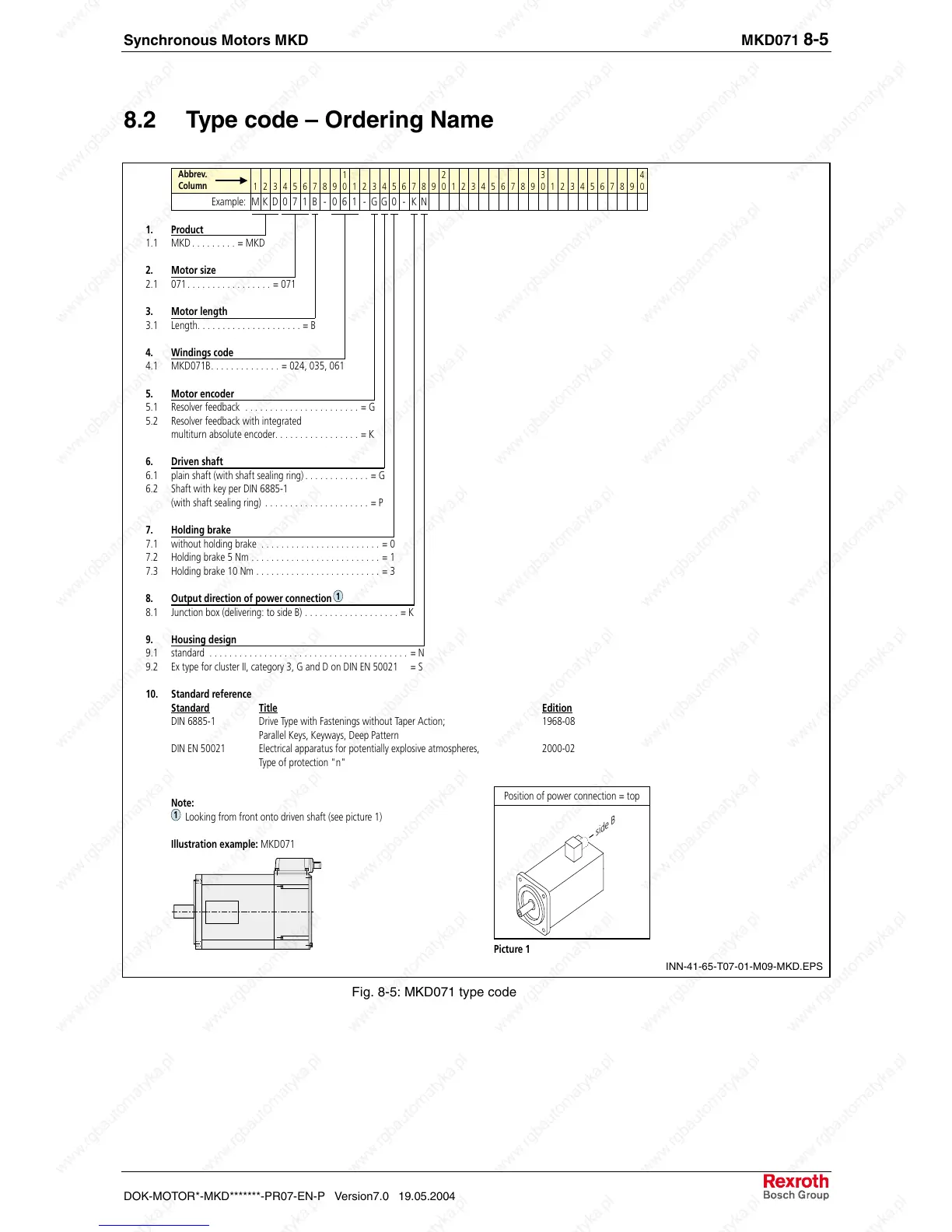

Fig. 8-5: MKD071 type code
