Synchronous Motors MKD MKD041 7-5
DOK-MOTOR*-MKD*******-PR07-EN-P Version7.0 19.05.2004
7.2 Type code – Ordering Name
1234 6789
1
05 1234 6789
2
05 1234 6789
3
05 1234 6789
4
05
Example:
Abbrev.
Column
MKD041B- 144 -GG0-KN
1. Product
1.1 MKD. . . . . . . = MKD
2. Size
2.1 041. . . . . . . . . . . . . . . = 041
3. Length
3.1 Lengths . . . . . . . . . . . . . . . = B
4. Winding code
4.1 MKD041B. . . . . . . . . . = 058, 143, 144
5. Encoder
5.1 Resolver feedback . . . . . . . . . . . . . . . . . . = G
5.2 Resolver feedback with integrated
multiturn absolute encoder . . . . . . . . . . . . = K
6. Driven shaft
6.1 plain shaft (with shaft sealing ring) . . . . . . . = G
6.2 Shaft with key acc. to DIN 6885-1
(with shaft sealing ring) . . . . . . . . . . . . . . . . = P
7. Holding brake
7.1 without holding brake . . . . . . . . . . . . . . . . . . . . = 0
7.2 Holding brake 2.2 Nm. . . . . . . . . . . . . . . . . . . . = 1
8. Output direction of power connection
8.1
Terminal box (delivering: to B-side)
. . . . . . . . . . . . . . = K
9. Housing design
9.1 Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = N
9.2 Ex type for cluster II, category 3, G and D acc. to
DIN EN 50021 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = S
10. Standard reference
Standard Designation Edition
DIN 6885-1 Drive Type with Fastenings without Taper Action; 1968-08
Parallel Keys, Keyways, Deep Pattern
DIN EN 50021 Electrical apparatus for potentially explosive atmospheres, 2000-02
Type of protection "n"
2
1
Note:
Windings code "143" is identical to windings code "144" and not lacquered
Windings code "143" is only available with housing design "N"
Looking from front onto driven shaft
Illustration example: MKD041
2
1
RNC-41650-401_NOR_E_D0_2004-03-25.EPS

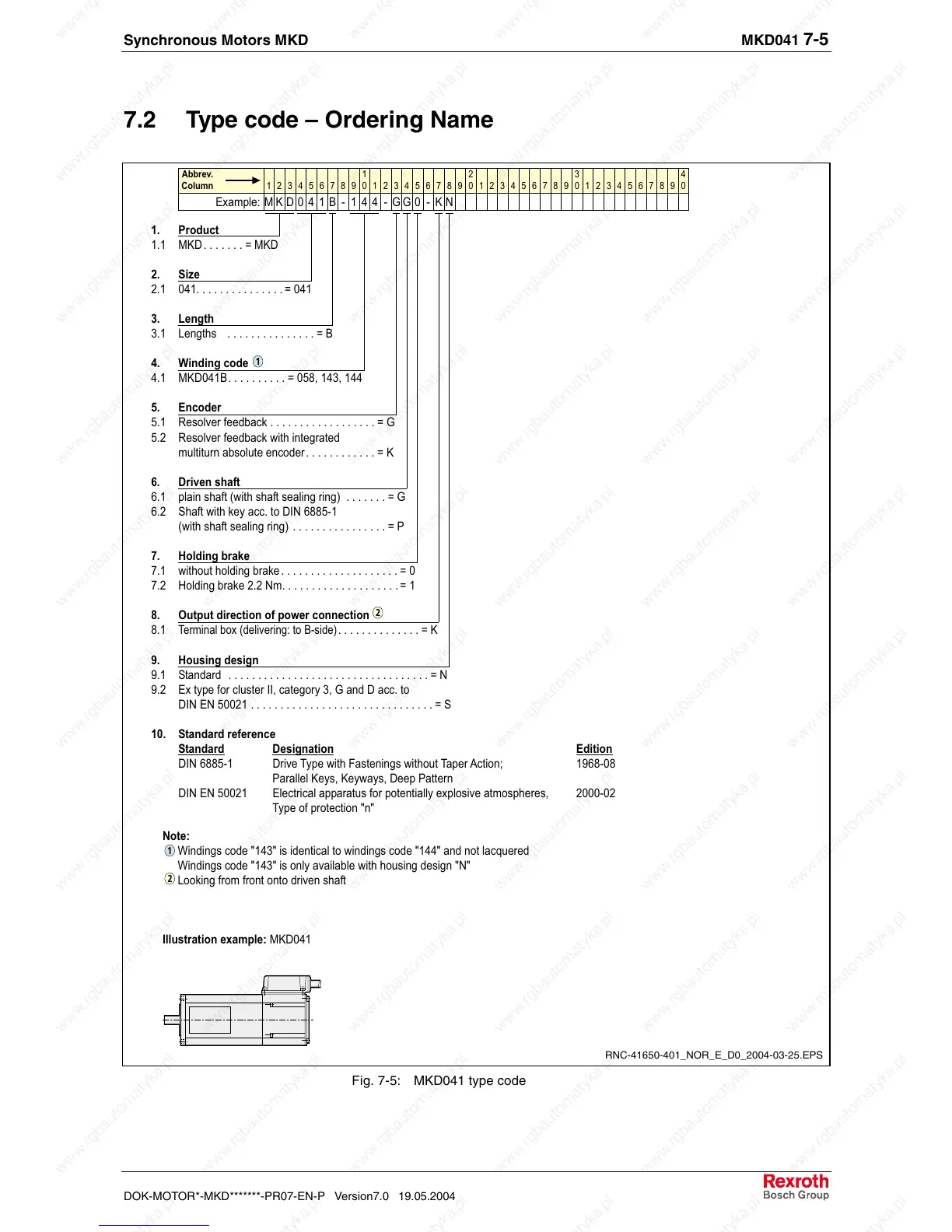

Fig. 7-5: MKD041 type code
