IMPORTANT!
The inner and outer blades are supplied in matched pairs. Do not mix
with other blades.
Z Use the adapter to connect the POWER STICK M3 connection cable
to the POWER CONTROL unit.

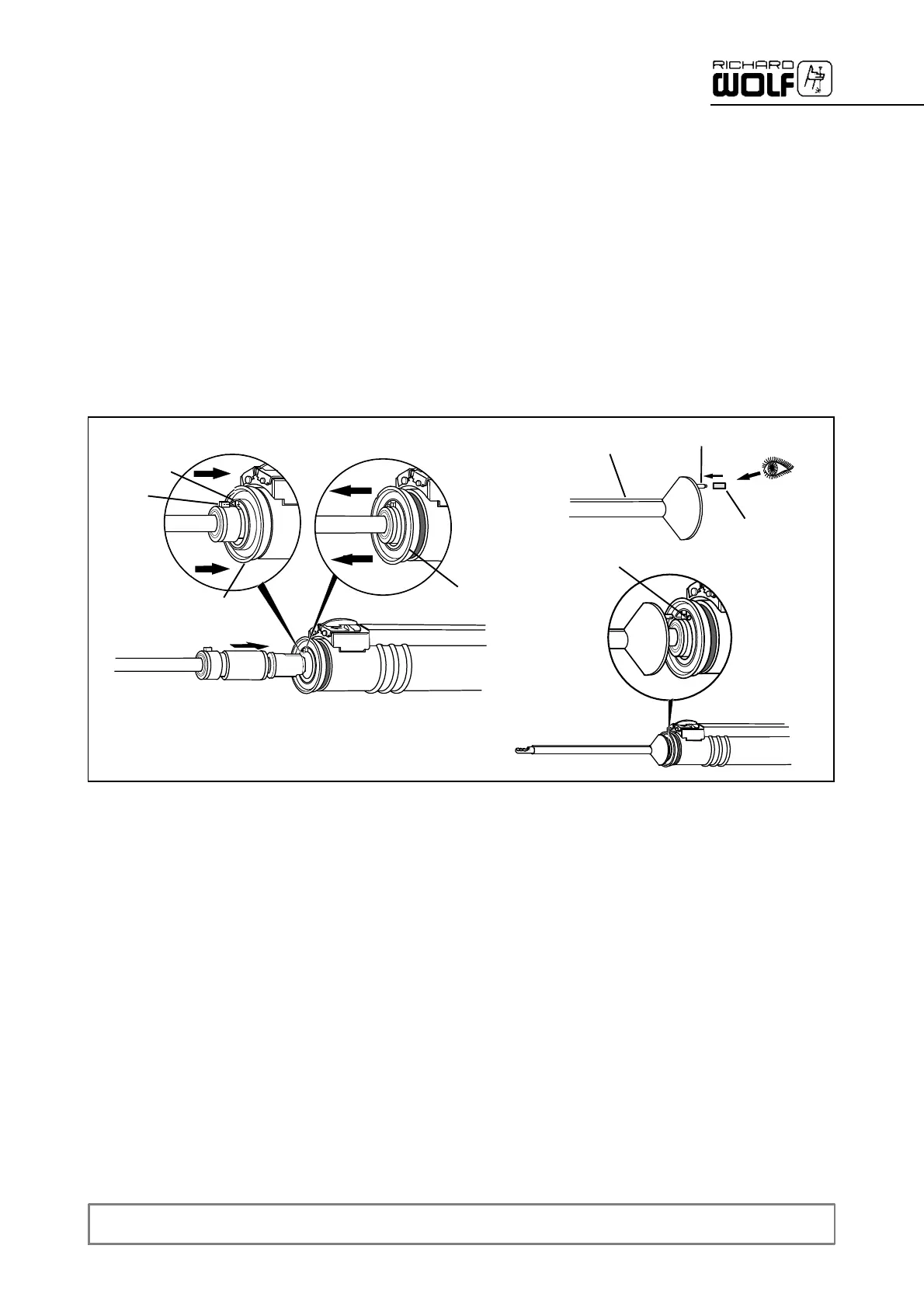

3.3.1 Attaching the irrigation adaptor (only 8563.311)
Z Check that the sealing element (13.14.2) is installed on irrigation tube
(13.14.1).
Z Push irrigation adapter (13.14) onto the rotary blade.
Z Insert irrigation tube (13.14.1) in opening (13.13) on the clamping
chuck, then push the irrigation adapter onto the r otary blade as far as it
will go.
13.1.1
13.12
13.11
13.14
13.14.1
13.13
13.14.2
13.1
