Ricoh Aficio GX7000 - Removing Paper Jammed under the Top Cover

• p.176 "Paper Is Not Fed or Delivered Normally"

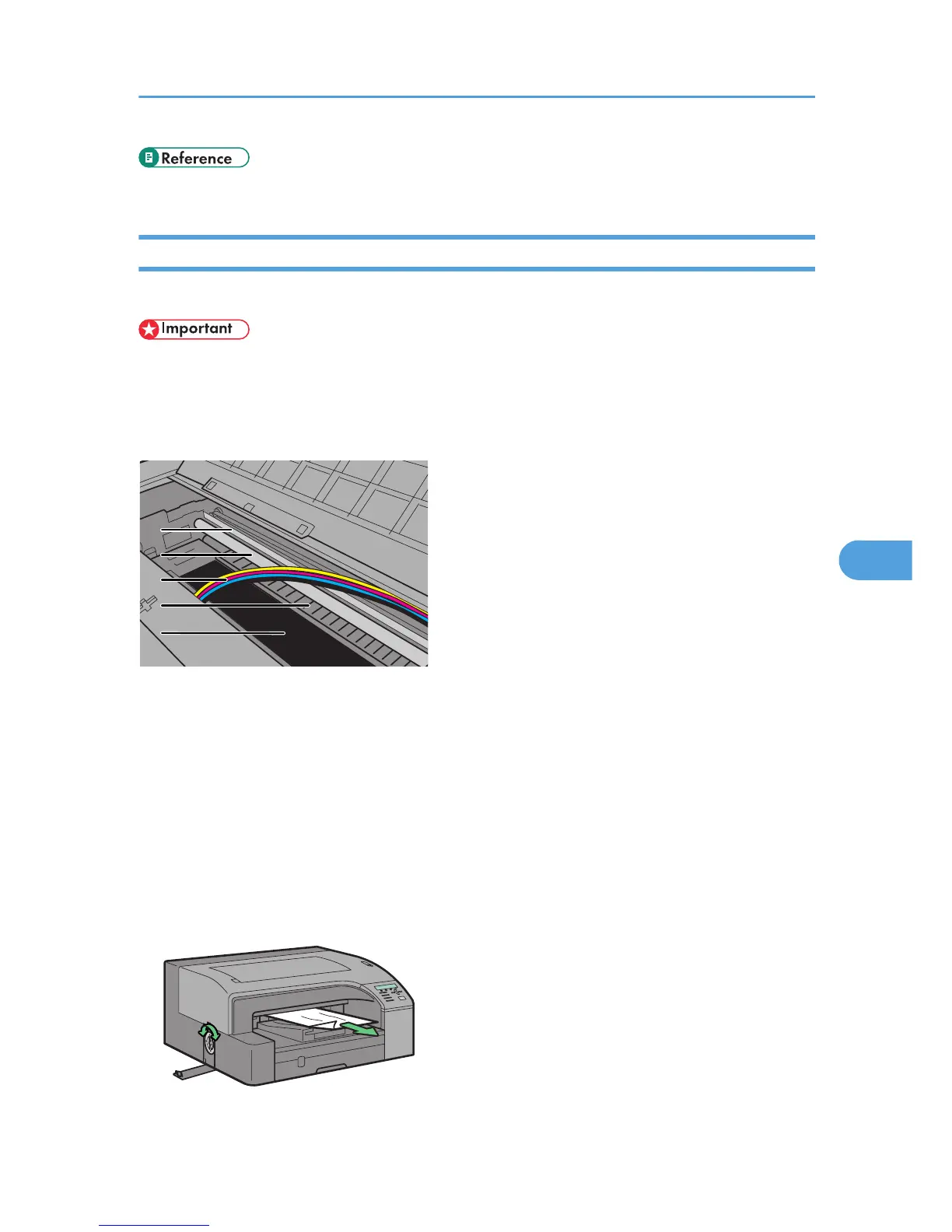

Removing Paper Jammed under the Top Cover
Follow the procedure below to remove paper jammed under the top cover.
• If the printer's ink tube is preventing access to the jammed paper, carefully pull the tube to the side.
Do not pull the tube upward. Pulling the tube upward will damage the printer.
• Do
not touch the feed belt, the transparent black band, print head rail rod, ink tubes, or paper pressing
board. Take care not to snag the sleeves of your clothing on the ink tubes.
1
2
3
1
2
3
4
4
5
5
BAJ089S
1. Transparent black band
2.
Print Head Rail Rod
3. Ink tubes
4. Paper pressing board
5. Feed belt
You can feed the jammed paper to tray 1 output ramp by opening the left cover and turning the paper
feed wheel.
BAJ309S
Paper Jam
187
6
