Ricoh Aficio GX7000

To Next Page

To Previous Page

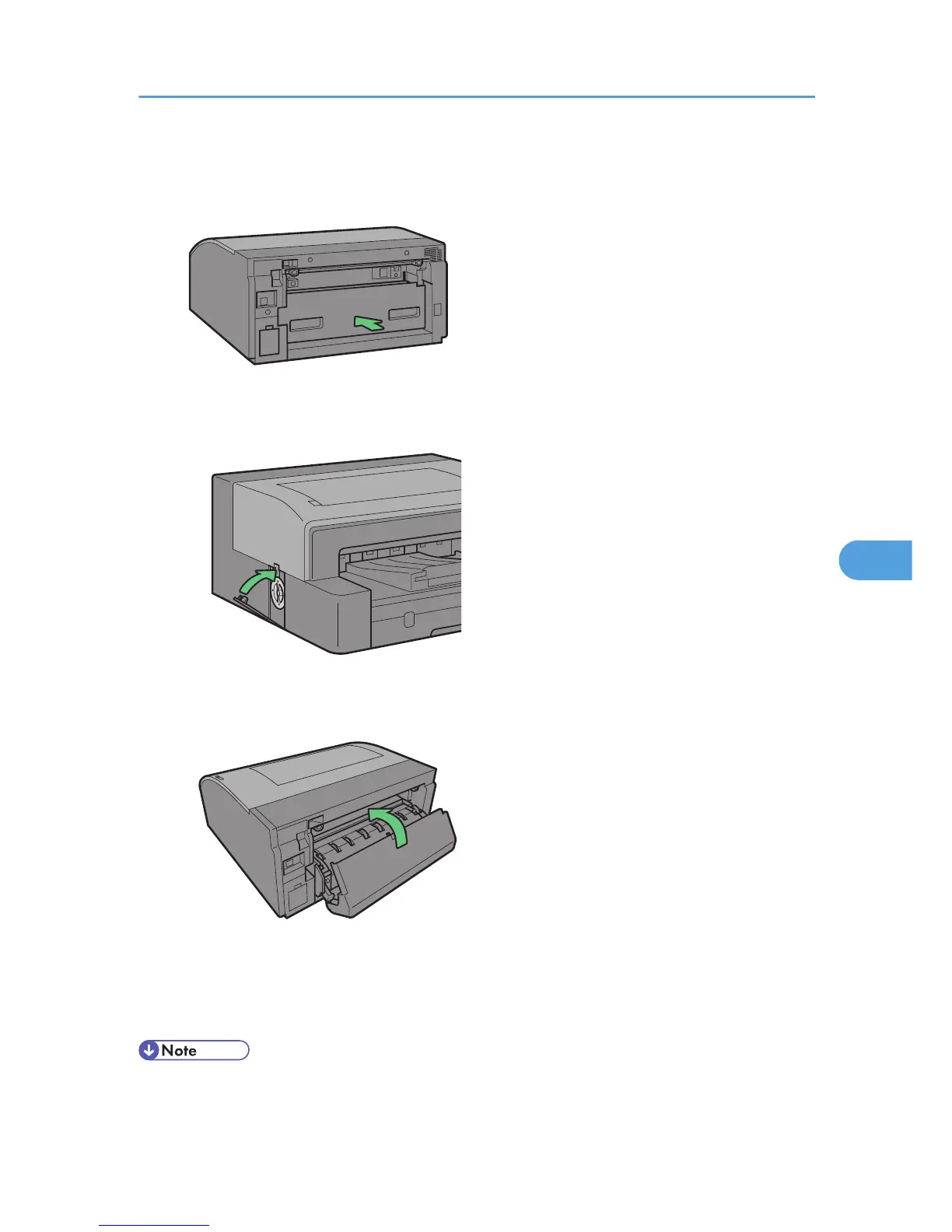

Rear cover

BAJ069S

Left cover

BAJ068S

Duplex unit cover

BAJ079S

If the multi bypass tray is attached to the printer, switch the printer off and detach the multi bypass

tray.

Check that the duplex unit is correctly attached and the duplex unit cover is closed.

• There is a guide board in the recess behind the rear cover. If the guide board is open, close it.
